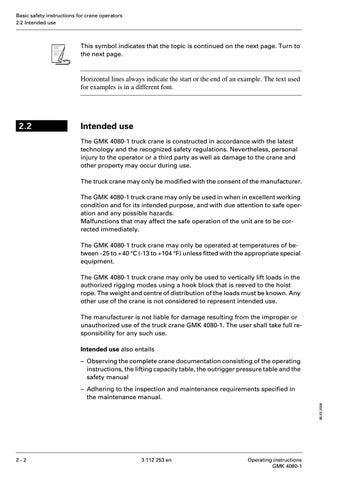

Basic safety instructions for crane operators 2.2 Intended use
s
This symbol indicates that the topic is continued on the next page. Turn to the next page.
Horizontal lines always indicate the start or the end of an example. The text used for examples is in a different font.
2.2
Intended use The GMK 4080-1 truck crane is constructed in accordance with the latest technology and the recognized safety regulations. Nevertheless, personal injury to the operator or a third party as well as damage to the crane and other property may occur during use. The truck crane may only be modified with the consent of the manufacturer. The GMK 4080-1 truck crane may only be used in when in excellent working condition and for its intended purpose, and with due attention to safe operation and any possible hazards. Malfunctions that may affect the safe operation of the unit are to be corrected immediately. The GMK 4080-1 truck crane may only be operated at temperatures of between -25 to +40 °C (-13 to +104 °F) unless fitted with the appropriate special equipment. The GMK 4080-1 truck crane may only be used to vertically lift loads in the authorized rigging modes using a hook block that is reeved to the hoist rope. The weight and centre of distribution of the loads must be known. Any other use of the crane is not considered to represent intended use. The manufacturer is not liable for damage resulting from the improper or unauthorized use of the truck crane GMK 4080-1. The user shall take full responsibility for any such use. Intended use also entails – Observing the complete crane documentation consisting of the operating instructions, the lifting capacity table, the outrigger pressure table and the safety manual
08.03.2006
– Adhering to the inspection and maintenance requirements specified in the maintenance manual.
2-2
3 112 253 en
Operating instructions GMK 4080-1
