TMS800E OPERATOR’S MANUALSET-UP AND INSTALLATION

7. Connect RCL connector (1, Figure4-35) to RCL connection box. The cable is stowed in the 23 ft (7m) section.

8. Remove tag line before operating crane.

NOTE: Reeve the hoist cable as described under rigging and unrigging procedure in this section.

Stowing Procedure

56 ft (17.1 m) Boom Extension

Danger

To prevent serious injury or death, do not stand on decking until extensions are secure.

1. Lower boom below horizontal.

2. Attach tag line to stinger nose Figure4-36.

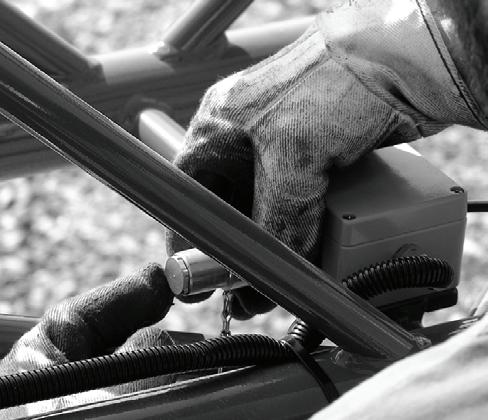

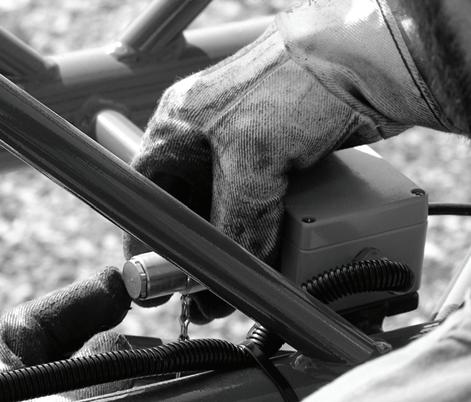

4. Remove retainer clip and remove the left side stinger retaining pin (1, Figure4-38). Place pin in holder.

3. Disconnect RCL connection (1, Figure4-37). Stow the cable in the 23 ft (7 m) section.

5. Raise boom to slightly above horizontal.

6. Using tag line to control movement of stinger, swing stinger into stowed position Figure4-39.

7. Raise boom slightly above horizontal.

Published 09-14-2012, Control # 132-07

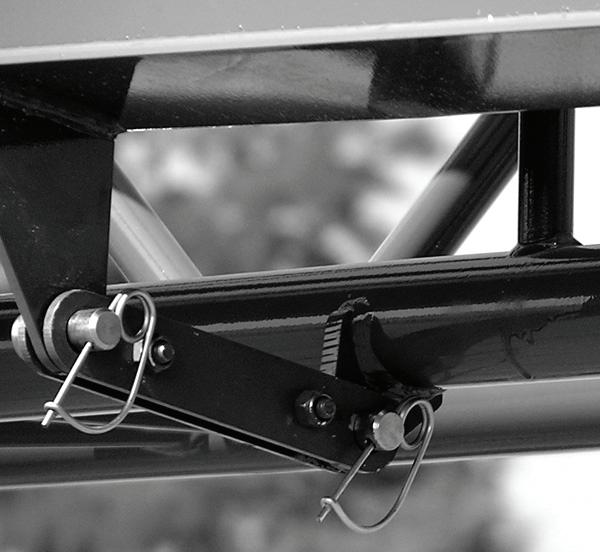

8. Connect stowage link (1, Figure4-40) to stinger using pin (2) and retainer clip (3).

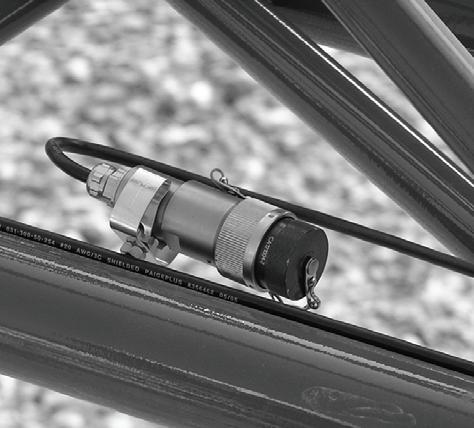

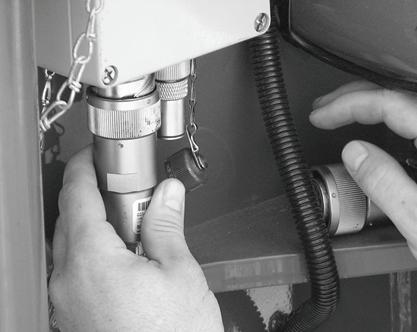

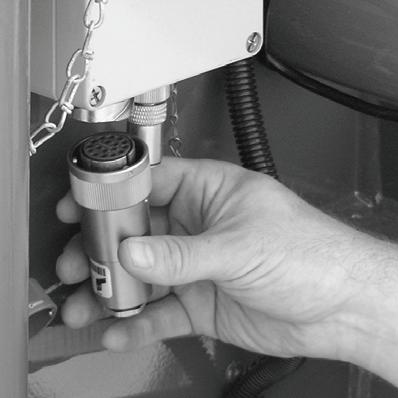

9. Remove tag line from stinger. 33 ft (10.1 m) Boom Extension c. Route cable through boom extension and stow connector (1, Figure4-44). a. Remove connector (1, Figure4-42) from junction box on boom nose. b. Install dummy plug (1, Figure4-43) on junction box.

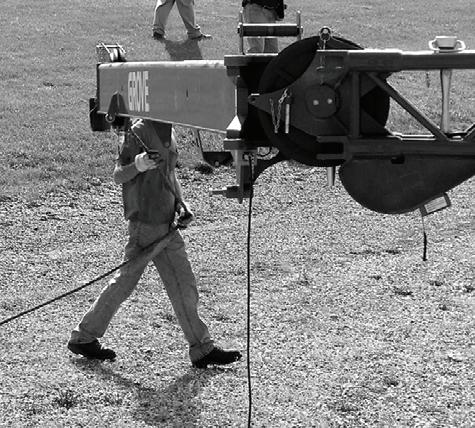

1. Lower boom and secure tag line (1, Figure4-41) to tip of boom extension. shows the 7 m (23 ft) and 10.1 m (33 ft) extension together.

2. Disconnect RCL Cable.

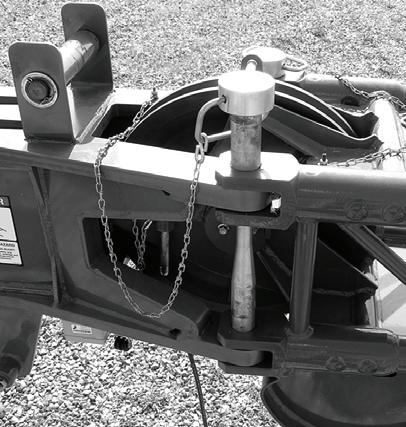

3. Remove two pins attaching the boom extension to the left side of boom nose (2, Figure4-45). Stow the pins in the boom extension pin holders (1) and install the retainer clips.

4. Completely retract boom.
