Chapter 7 LUBRICATION GENERAL INFORMATION
Hydraulic System Reservoir Use Mobil DTE 15M, or an equivalent that contains anti-rust, anti-foam and anti-oxidation additives and conforms to ISO VG46. Capacity: 35 gallons (133 liters)
WARNING NEVER lubricate or service this unit when any part of the machine is in motion. ALWAYS exercise the MANDATORY SAFETY SHUTDOWN PROCEDURE (p. 8, SAFETY chapter) before lubricating or servicing this equipment.
All Grease Fittings Use No. 2 lithium-based grease Engine Crankcase Oil
NOTE: The Maintenance chapter in this manual
Ambient Temperature -22°F - 86°F (-30°C - 30°C) -4°F - 104°F (-20°C - 40°C) 5°F - 122°F (-15°C - 50°C)
has provisions for recording the dates and hourmeter readings after lubrication or other service has been performed; use those spaces to keep a log for maintaining a current service interval record. Proper routine lubrication is an important factor in preventing excessive part wear and early failure.
Grade* SAE 5W-30 SAE 10W-40 SAE 15W-40
*API Service Classification: CH-4/Cl-4 *API Service Classification for first 100 hours on new or rebuilt John Deere engines: CC or CD
Capacity: 14 quarts (13.3 liters)
LUBRICANTS
Axle Gear Oil

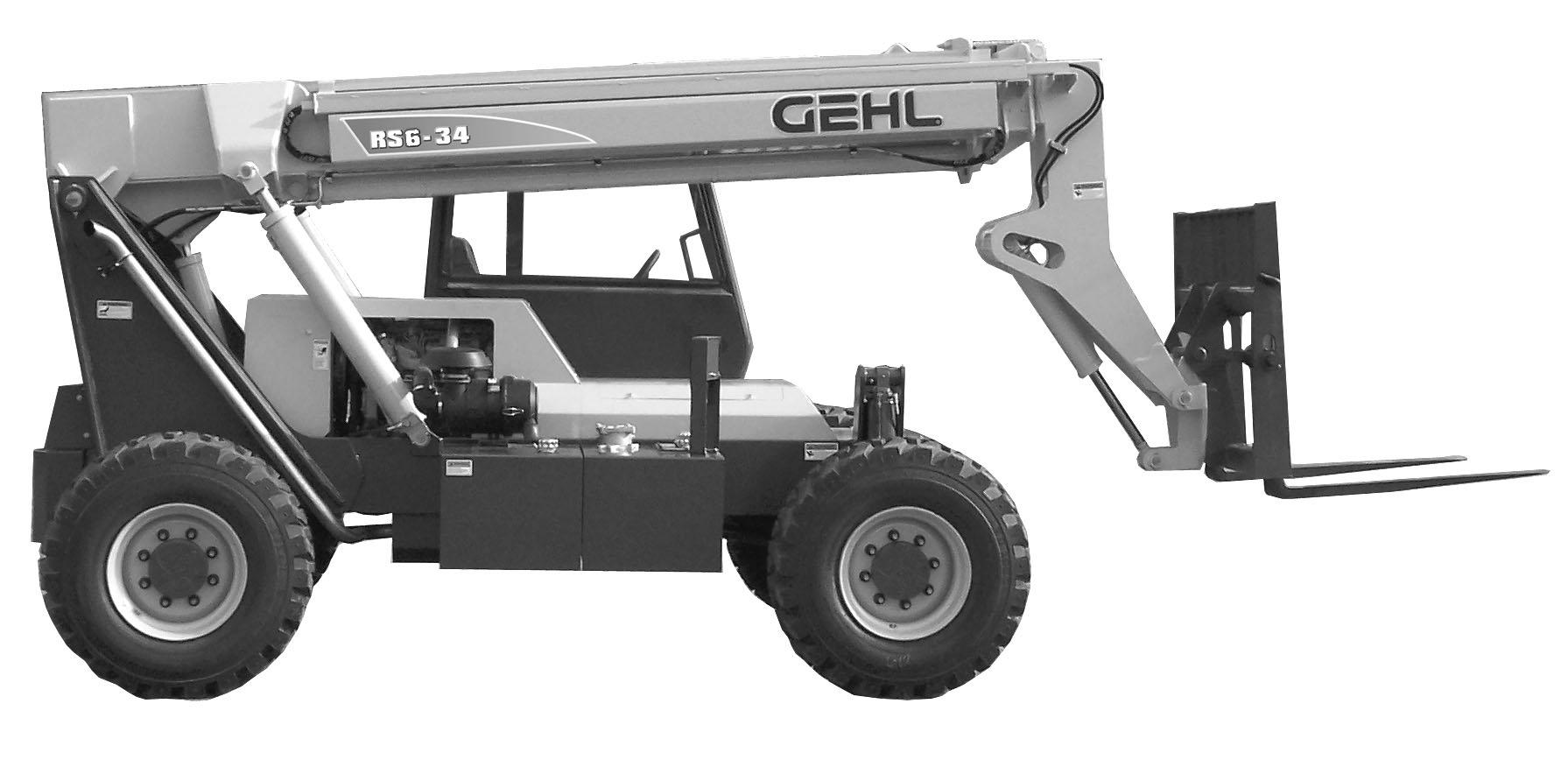

The chart on this page lists the locations, temperature ranges and recommended types of lubricants to be used when servicing the machine. Refer to the separate engine manual for additional information regarding recommended engine lubricants, quantities and grades required.

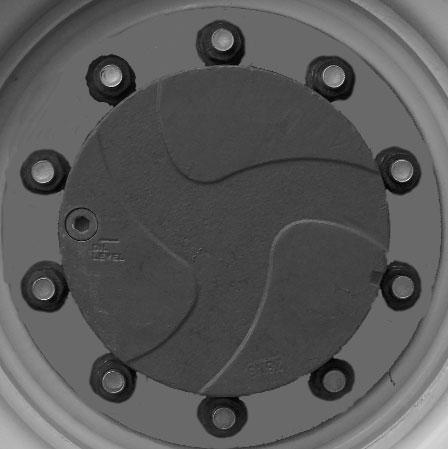

MobilFluid® 422/423 (recommended) Super Tractor Oil Universal API GL5 80W-90 or equivalent Differential capacity: 9.6 quarts (9.0 liters) Planetary capacity (each side): 0.6 quarts (0.5 liters)
NOTE: Refer to Operator Services topic in the Service and Storage chapter of this manual for detailed information regarding periodic checking and replenishing of lubricants.
Transmission Oil Use Sunco Multi-ATF or equivalent Capacity: 24 quarts (23 liters) Brake System Use Sunco Multi-ATF or equivalent
