Electrical Control System

For additional information about the PLUS+1 service tool, its features and functionality, visit the Danfoss website at: http://powersolutions.danfoss.com/Home/

Display Service Software Update/Pass Code Reset

The display service software is used for periodic software updates for the multi-function display.

NOTE: When the pass code feature is enabled, a PIN code is required before the machine can be started. If forgotten, the PIN code is reset by updating the multi-function display software.

CAN System Service Software

Danfoss Service Tool (Plus+1) Software

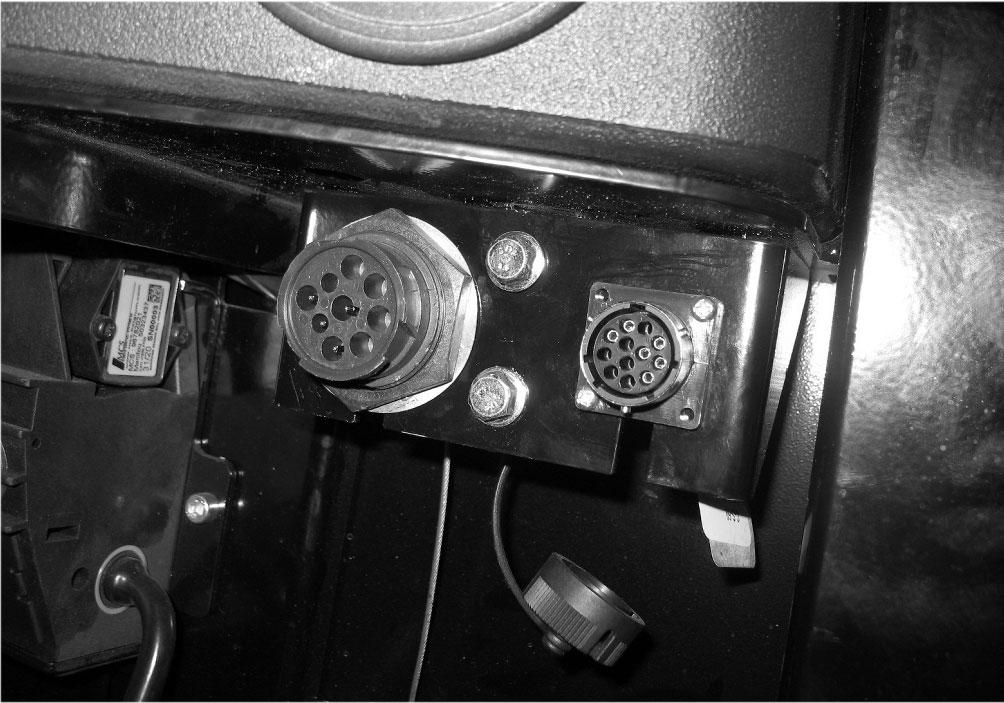

IMPORTANT: The Service adapter harness [Manitou part # 50291685] is required to use the Danfoss Service Tool.

NOTE: A download link for the PLUS+1® GUIDE Service Tool software is included with the Communication Harness Kit [Manitou part # 203907].

The Danfoss Plus+1 service tool provides access to drive system error code history and allows for firmware updates.

NOTE: Only active drive system error codes are shown on the multi-function display.

Pass Code

Enable Ignition Pass Code

Enable Ignition Pass Code

Set Start Code

IMPORTANT: Service adapter harness [Manitou part # 50291685] and service display kit [Manitou part # 50292454] are required to update the display software.
