PREPARING FOR FIELD OPERATION

Assembled Spreader

GEHL Box Spreaders have a Beater Clutch which controls operation of the Beater. Before loading Spreader and before engaging the PTO to unload the Spreader, BE SURE the Control Indicator (on the front of the Spreader) is in the "Start" position. Then, engage the

PTO at a low RPM. Shear Bolt overload protection is provided for both the Apron Drive and Main Drive Shaft. Refer to the Operation chapter for additional details. If Spreader is going to be operated in freezing temperatures, BE SURE to review and comply with recommendations set forth in the Operation chapter, under the Winter Operation topic.

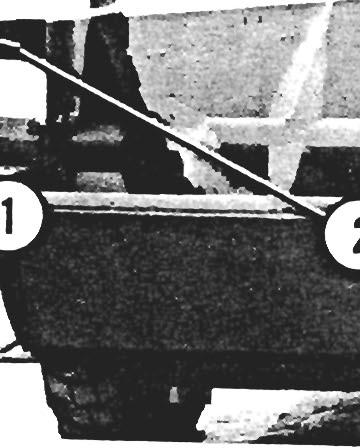

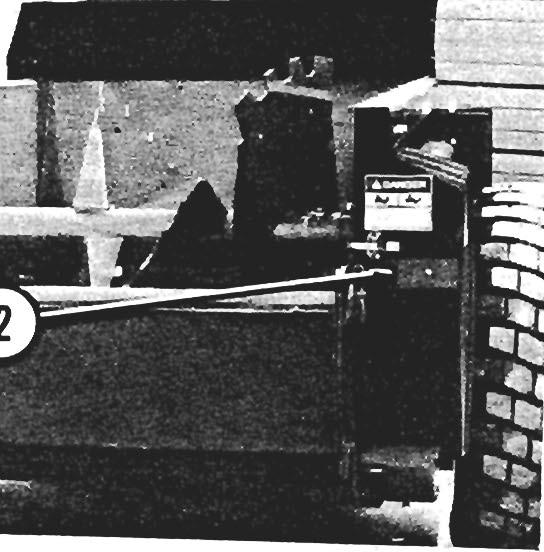

REFLECTORS & SMV EMBLEM (Fig. 11-1)

For towing the Spreader on a public highway after dark, Red Reflector Strips are provided on each rear corner. Unless prohibited by local codes, use a slowmoving vehicle emblem (purchased locally) when transporting Spreader on a public highway. A Bracket is provided on the left rear side of the Spreader for mounting the emblem.

Acaution

ALWAYS follow state and local regulation regarding use of a safety chain and auxiliary lighting when towing farm equipment on public highways. ONLY a safety.clla.ln. (NOT an elastic or nylon/plastic tow strap) should be used to retain the connection between the towing and towed machines, In the event of separation of the primary attaching system. BE SURE to check with local law enforcement agencies for your own particular regulations. Unless otherwise prohibited, use a Slowmoving Vehicle Emblem. NEVER tow a Spreader on a public highway at a speed greater than 20 mph (32 kmh)

SAFETY CHAIN & AUXILIARY LIGHTING (Fig. 11-2)

As required or when desired, the Spreader can be equipped with a Safety Chain for travel on public highways. Refer to the Optional Features & Accessories chapter for ordering information. The Safety Chain should be attached to the tractor and Spreader as shown. When attached in this manner, the safety chain should have the following characteristics:

1. Chain is sufficiently slack to allow turns and movements of either the tractor or the farm implement, without placing tension on chain.

2. Chain is of sufficient strength to hold the decoupled implement (and its load) and tow it to the shoulder.

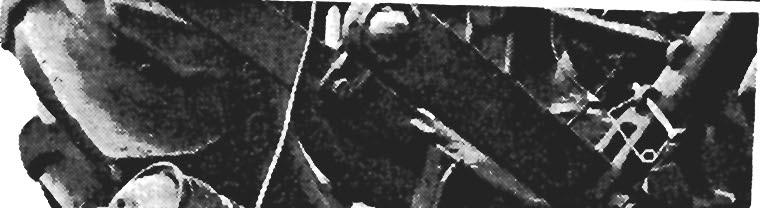

1 • Safety Chain Fastened Around Spreader A·Frame

2 - Locking Hltchpln

3 • Safety Chain & Clevis

Fig. 11-2: Accessory Safety Chain Installed
