MAINTENANCE SCHEDULE

Check,

Check, Clean and Inspect (continued)

Fluid and Filter Changes

*1st engine oil change only

Air Conditioning

Functional Check

Leakage Check

(See Figure 5-1)

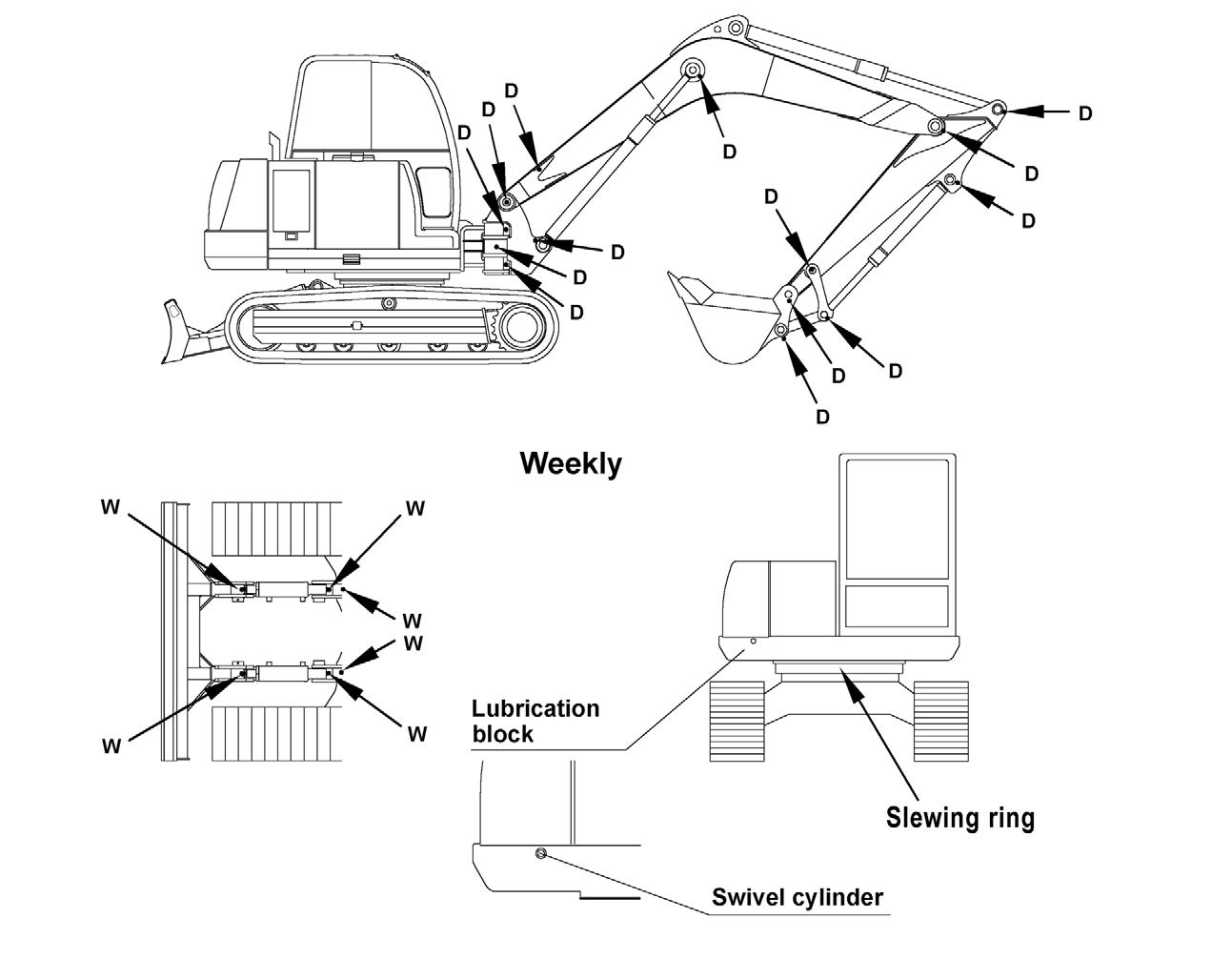

Figure 5-1 Lubrication Points

Recommended Lubricants

Engine Oil

A diesel engine oil conforming to SAE grade 10W30 or 15W40, and API classifications CH-4 or CI-4, such as BP Vanellus MG 15W40, BP Vanellus C-Extra 10W30, or Chevron Delo 400 15W40.

Hydraulic Oil

A hydraulic oil with anti-wear, anti-foam and antioxidation additives that conforms to ISO Viscosity Grade 46, such as, Mobile DTE 15M, Amoco Rykon 46, or BP Energol HLP-HD 46.

Swing Ring

A heavy-duty lithium complex grease with 3% molybendenumdisulfide, such as Chevron RPM Heavy Duty Grease No. 2, Mobilgrease Moly 52 or BP Energrease Moly EP2.

Final Drive Unit

An EP grade gear oil that conforms to API GL5, such as Chevron Delo Gear 80W90 or BP Transgear 80W90.

Swing Gear Unit

An EP grade gear oil that conforms to API GL5, such as Chevron Delo Gear 80W90 or BP Transgear 80W90.

All Lubrication Points - Figure 5-1

A heavy-duty lithium complex grease with 3% molybendenumdisulfide, such as Chevron RPM

Heavy Duty Grease No. 2, Mobilgrease Moly 52 or BP Energrease Moly EP2.

Ranges of Applications

From -13° F to +104° F (-25° C to +40° C) outside temperature.
