CHAPTER 10 TRANSPORTING

The Spreader can be equipped with a safety chain for travel on public highways. Refer to the Optional Features & Accessories chapter for information.

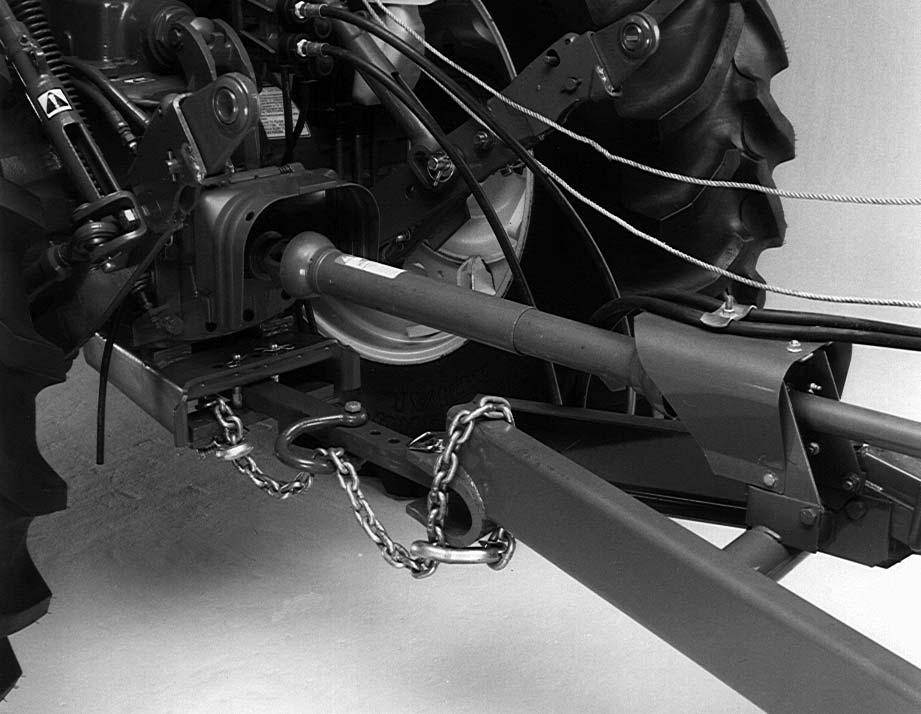

The safety chain should be attached to the tractor and Spreader as shown. When attached in this manner, the safety chain should be sufficiently slack to allow turns and movements of either the tractor or the Spreader, without placing tension on the chain, and be of sufficient strength to hold the decoupled implement (and its load) and tow it to the shoulder.

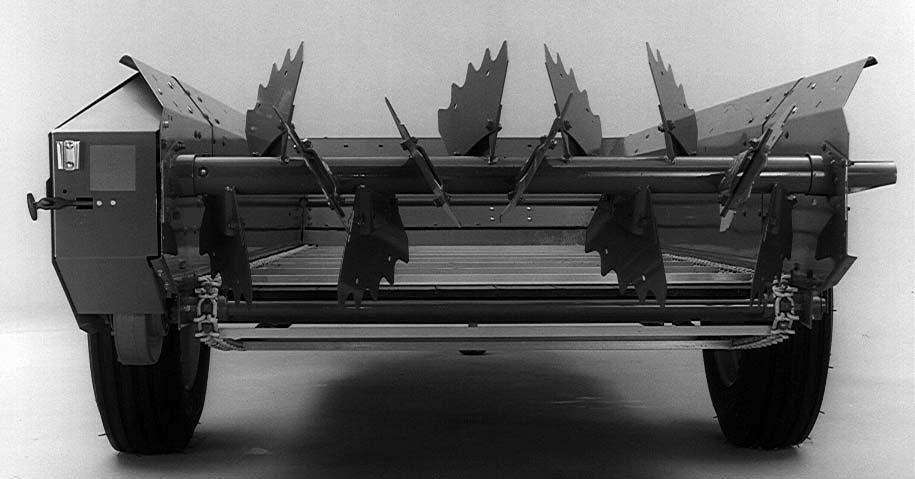

SMV EMBLEM & REFLECTOR (Fig. 27)

For towing the Spreader on a public highway after dark, a red reflector strip is provided on the left rear corner. Unless prohibited by local codes, use a Slow-Moving Vehicle (SMV) emblem (purchased locally) when transporting the Spreader on a public highway. A bracket is provided on the left rear side of the Spreader for mounting the emblem.

Warning

ALWAYS follow state and local regulations regarding use of a safety chain and transport lighting when towing farm equipment on public highways. ONLY a safety chain (NOT an elastic or nylon/plastic tow strap) should be used to retain the connection between the towing and towed machines, in the event of separation of the primary attaching system. BE SURE to check with local law enforcement agencies for your particular regulations. Unless otherwise prohibited, use a Slow-Moving Vehicle (SMV) emblem. NEVER tow a Spreader on a public highway at a speed greater than 20 mph (32 km/h).

NOTE: Refer to Optional Features & Accessories chapter for the Safety Chain and Transport Lighting Kit ordering information.

Transport Lighting

NOTE: If the Spreader is to be transported on a public highway, a Transport Lighting Kit should be installed.

An accessory Transport Lighting Kit is available for all trailer-type Spreader models. The kit includes lights, wiring harness and installation instructions.
