How to Assemble the Integral Oil Cooler

Special Instructions

None

Special Tools

• Typical service tools

Procedure -

1. Thoroughly clean the gasket surface of the transmission case and cover plate. Be sure the cooler fitting threads and flare seat are free of dirt and debris.

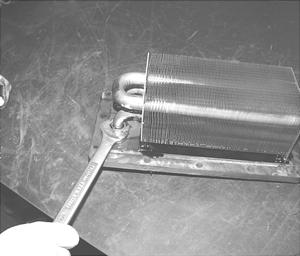

2. Install cooler to cover plate and tighten cooler fittings to 75 lb. ft. (102 Nm).

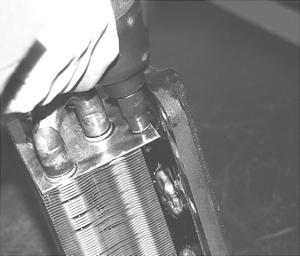

3. Install capscrews to rear of cooler and tighten to 9-10 lb. ft. (12-14 Nm).

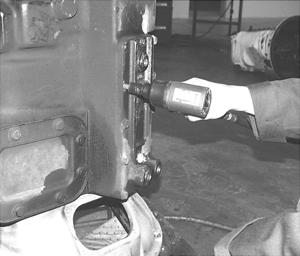

4. Install cooler cover plate gasket and cover plate. Install capscrews and tighten to 40-45 lb. ft. (54-61 Nm).
