How to Install a Roadranger Valve

To position the Roadranger valve, the range lever must be to the front or the splitter button to the left when facing forward.

• Typical service tools

1. Make sure the nut, valve cover, air lines, sheathing, and Orings are in position on the lever shaft.

2. If previously removed, replace the air fittings and torque to 84-120 lb. in.

3. Place the Roadranger valve on the lever shaft and rotate so the range selector faces the vehicle front.

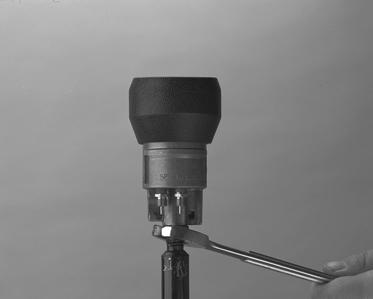

4. From the Roadranger valve bottom, tighten the jam nut to 35-45 lb. ft. of torque.

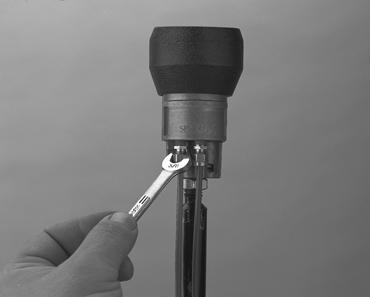

5. Connect the air lines to the air fittings.

6. Slide the cover into position on the Roadranger valve.

7. Install the Roadranger valve cover mounting screws.

Note: Make sure the air lines are seated fully.
