Initial 500 Hours Service

Initial 500 Hours Service Maintenance to be performed after the fi rst 500 hours only.

1. Engine

1.1. Check/adjust PDE injector rocker arms • Checking/adjusting PDE injector rocker arms shall also be carried out after the fi rst 500 hours of opera-

tion.

• Contact Moxy Dealer for checking/adjusting of the PDE injector rocker arms • The checking/adjusting of the PDE injector rocker arms

2. Transmission

2.1. Run the AEB-Tester AEB = Automatic Filling Parameter Adjustment

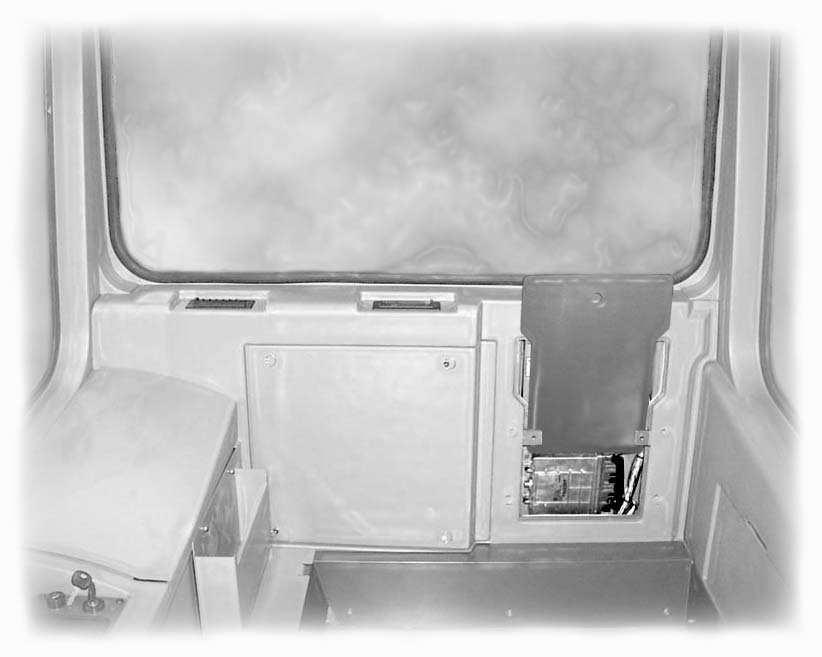

ted). To optimise the transmission, run the AEB-Tester. 1. Remove the cover on the backwall (remove the instructor's seat back rest, if that is fi t-

2. Follow the procedure described in the table on next page. The gear display will show the AEB's actions. ("Display message" in the table on the next page).

TCU = Transmission Control Unit

Moxy part no. 8453 Initial 500 Hours Service Maintenance to be performed after the fi rst 500 hours only.

Run the AEB-Tester continued..............

AEB = Automatic Filling Parameter Adjustment TCU = Transmission Control Unit

1 How to run the AEB-Tester Display message Remarks

Warm up the transmission oil, the oil must have a temperature at 70 - 80°C Normal operating messages

2

-Move the gear selector to neutral position. -Engage the parking brake. 3 Turn OFF the starter switch -

4 Plug the AEB-Tester into the diagnostic contact no. 607

5 Start the engine "PL"

6 Set engine speed to low idle rpm "PL" if starts condition is OK

7 Press button on the AEB-Tester "ST" if it starts condition is OK

8 Keep the button depressed until the AEB has started "K1" ..... (Information about the AEB state)

9 Wait until AEB is fi nished

10 Turn OFF the starter switch and unplug the AEB-Tester "OK" (AEB has been successful)

11 Remount the cover on the backwall TCU must recognise "PL" for at least 2 seconds before you can press the button.

The button must not be released before TCU TCU has started the AEB and goes to adjusting K1, K2, ..., KR. (Button may be released)

NOTE

• If the oil temperature is too low or too high, following message will apear on the gear display:

T or T . Adjust the oil temperature and try again. • If there is a malfunction, turn the starter switch off and start the engine again. • The AEB will not start if any error codes are shown on the gear display, except error code "F6"

Initial 500 Hours Service Maintenance to be performed after the fi rst 500 hours only.

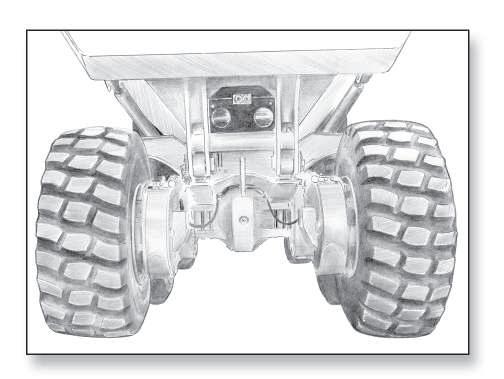

3. Tandem housings

2

1

3.1. Change oil 32* • Change of tandem housing oil shall also be carried out every: 4000 hours of operation for MT25/26/31 2000 hours of operation for MT36/41. 1. The dump truck and tandem housings must be horizontal. 2. Unscrew drain plugs (1) on the inside of the hous-

ings.

3. Drain the oil into a suitable container. 4. Clean plugs, replace seal if necessary and reinstall. • Tightening torque: 80 Nm. 5. Fill new oil, according to the oil specifi cation sheet (chapter 6), through the fi ller plugs (2) to correct level. 6. Clean plugs, replace seals if necessary and reinstall. • Tightening torque: 80 Nm. 7. After test driving, check that level is at lower edge of the level plug. CAUTION

Be aware of possible internal pressure when the oil is hot!
