2 - KIT CONTENT

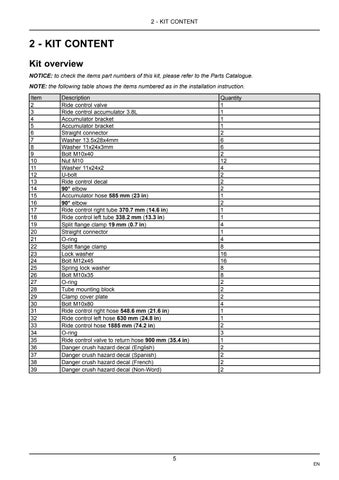

2 - KIT CONTENT Kit overview NOTICE: to check the items part numbers of this kit, please refer to the Parts Catalogue. NOTE: the following table shows the items numbered as in the installation instruction. Item 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39
Description Ride control valve Ride control accumulator 3.8L Accumulator bracket Accumulator bracket Straight connector Washer 13.5x28x4mm Washer 11x24x3mm Bolt M10x40 Nut M10 Washer 11x24x2 U-bolt Ride control decal 90° elbow Accumulator hose 585 mm (23 in) 90° elbow Ride control right tube 370.7 mm (14.6 in) Ride control left tube 338.2 mm (13.3 in) Split flange clamp 19 mm (0.7 in) Straight connector O-ring Split flange clamp Lock washer Bolt M12x45 Spring lock washer Bolt M10x35 O-ring Tube mounting block Clamp cover plate Bolt M10x80 Ride control right hose 548.6 mm (21.6 in) Ride control left hose 630 mm (24.8 in) Ride control hose 1885 mm (74.2 in) O-ring Ride control valve to return hose 900 mm (35.4 in) Danger crush hazard decal (English) Danger crush hazard decal (Spanish) Danger crush hazard decal (French) Danger crush hazard decal (Non-Word)
Quantity 1 1 1 1 2 6 6 2 12 4 2 2 2 1 2 1 1 4 1 4 8 16 16 8 8 2 2 2 4 1 1 2 3 1 2 2 2 2
5 EN
