2 - KIT CONTENT

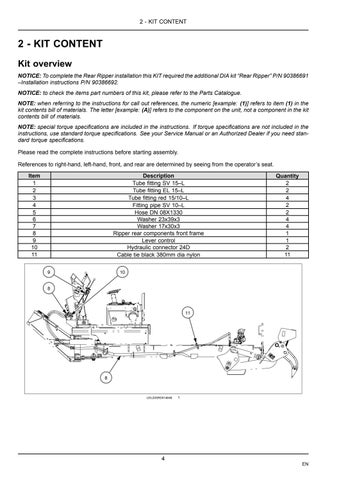

2 - KIT CONTENT Kit overview NOTICE: To complete the Rear Ripper installation this KIT required the additional DIA kit “Rear Ripper” P/N 90386691 –Installation instructions P/N 90386692. NOTICE: to check the items part numbers of this kit, please refer to the Parts Catalogue. NOTE: when referring to the instructions for call out references, the numeric [example: (1)] refers to item (1) in the kit contents bill of materials. The letter [example: (A)] refers to the component on the unit, not a component in the kit contents bill of materials. NOTE: special torque specifications are included in the instructions. If torque specifications are not included in the instructions, use standard torque specifications. See your Service Manual or an Authorized Dealer if you need standard torque specifications. Please read the complete instructions before starting assembly. References to right-hand, left-hand, front, and rear are determined by seeing from the operator’s seat. Item 1 2 3 4 5 6 7 8 9 10 11
Description Tube fitting SV 15–L Tube fitting EL 15–L Tube fitting red 15/10–L Fitting pipe SV 10–L Hose DN 08X1330 Washer 23x39x3 Washer 17x30x3 Ripper rear components front frame Lever control Hydraulic connector 24D Cable tie black 380mm dia nylon
LEIL20GRD0146AB
Quantity 2 2 4 2 2 4 4 1 1 2 11
1
4 EN
