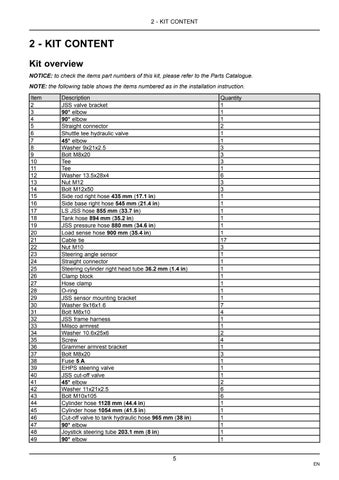

2 - KIT CONTENT
2 - KIT CONTENT Kit overview NOTICE: to check the items part numbers of this kit, please refer to the Parts Catalogue. NOTE: the following table shows the items numbered as in the installation instruction. Item 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49
Description JSS valve bracket 90° elbow 90° elbow Straight connector Shuttle tee hydraulic valve 45° elbow Washer 9x21x2.5 Bolt M8x20 Tee Tee Washer 13.5x28x4 Nut M12 Bolt M12x50 Side rod right hose 435 mm (17.1 in) Side base right hose 545 mm (21.4 in) LS JSS hose 855 mm (33.7 in) Tank hose 894 mm (35.2 in) JSS pressure hose 880 mm (34.6 in) Load sense hose 900 mm (35.4 in) Cable tie Nut M10 Steering angle sensor Straight connector Steering cylinder right head tube 36.2 mm (1.4 in) Clamp block Hose clamp O-ring JSS sensor mounting bracket Washer 9x16x1.6 Bolt M8x10 JSS frame harness Milsco armrest Washer 10.6x25x6 Screw Grammer armrest bracket Bolt M8x20 Fuse 5 A EHPS steering valve JSS cut-off valve 45° elbow Washer 11x21x2.5 Bolt M10x105 Cylinder hose 1128 mm (44.4 in) Cylinder hose 1054 mm (41.5 in) Cut-off valve to tank hydraulic hose 965 mm (38 in) 90° elbow Joystick steering tube 203.1 mm (8 in) 90° elbow
Quantity 1 1 1 2 1 1 3 3 3 1 6 3 3 1 1 1 1 1 1 17 3 1 1 1 1 1 1 1 7 4 1 1 2 4 1 3 1 1 1 2 6 6 1 1 1 1 1 1
5 EN
