Install the cylinder hydraulic hose (45) the ° elbow
from CNH Joystick Steering with Standard Hydraulic Steering 921G W230D Wheel Loader Instructions Manual

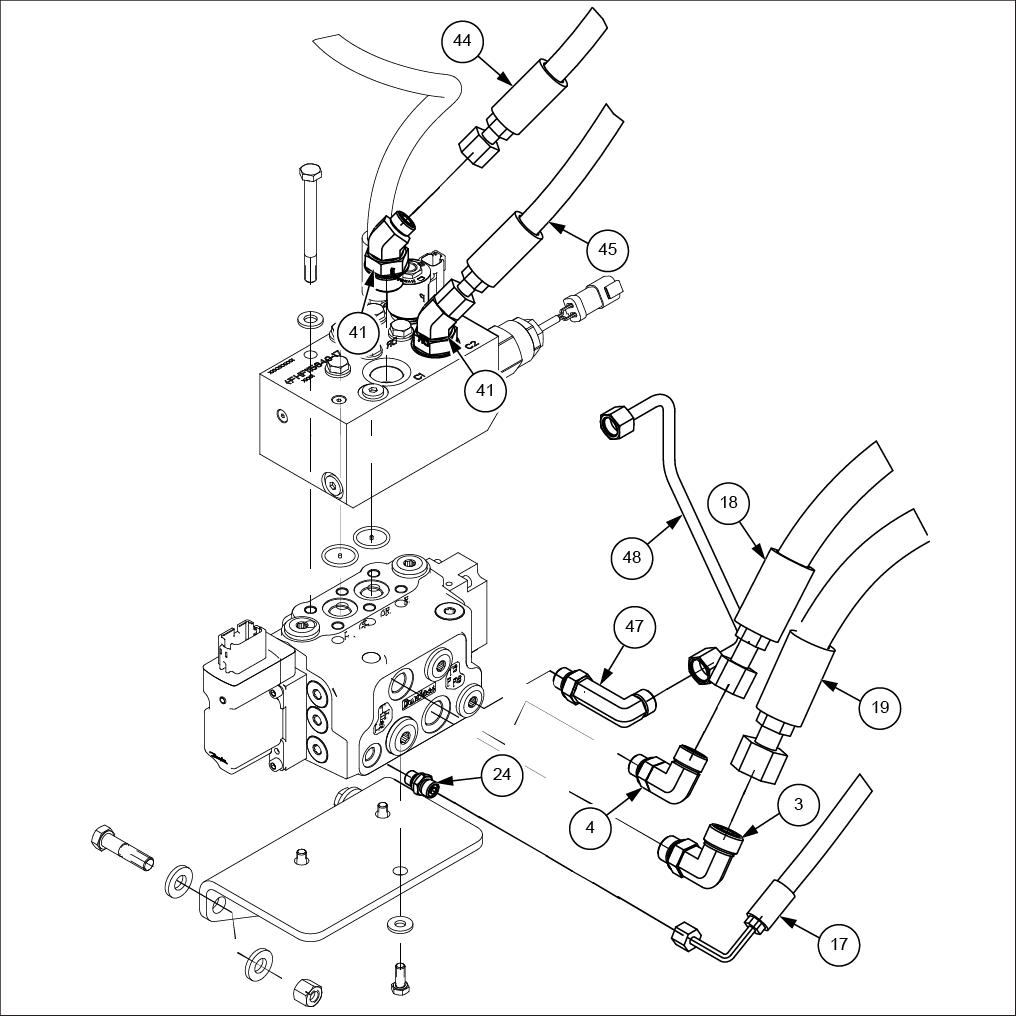

10. Install the joystick steering hydraulic hose (17) the straight connector (24) . 1 Install the JSS pressure hose (19) the ° elbow (3) . 12. Install the tank hydraulic hose (18) the ° elbow (4) . 13. Install the joystick steering hydraulic tube (48) the ° long elbow (47) . 14. Install the cylinder hydraulic hose (45) the ° elbow (41) . 15. Install the cylinder hydraulic hose (44) the ° elbow (41) .
LEIL19WHL0727GB 4
