4 - PRE-ASSEMBLY

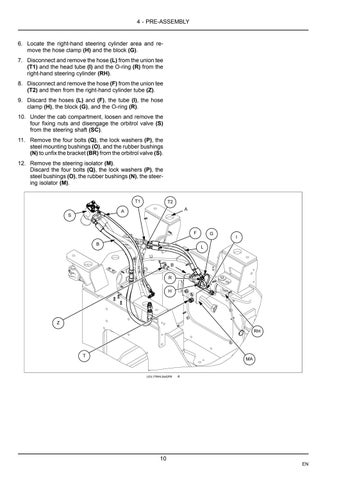

6. Locate the right-hand steering cylinder area and remove the hose clamp (H) and the block (G). 7. Disconnect and remove the hose (L) from the union tee (T1) and the head tube (I) and the O-ring (R) from the right-hand steering cylinder (RH). 8. Disconnect and remove the hose (F) from the union tee (T2) and then from the right-hand cylinder tube (Z). 9. Discard the hoses (L) and (F), the tube (I), the hose clamp (H), the block (G), and the O-ring (R). 10. Under the cab compartment, loosen and remove the four fixing nuts and disengage the orbitrol valve (S) from the steering shaft (SC). 11. Remove the four bolts (Q), the lock washers (P), the steel mounting bushings (O), and the rubber bushings (N) to unfix the bracket (BR) from the orbitrol valve (S). 12. Remove the steering isolator (M). Discard the four bolts (Q), the lock washers (P), the steel bushings (O), the rubber bushings (N), the steering isolator (M).
LEIL17WHL0442FB
4
10 EN
