Install the hose (15) the ° elbow (14

Next Article
Install the JSS load sense hose (23) the straight connector (5) .

Install the JSS load sense hose (23) the straight connector (5) .

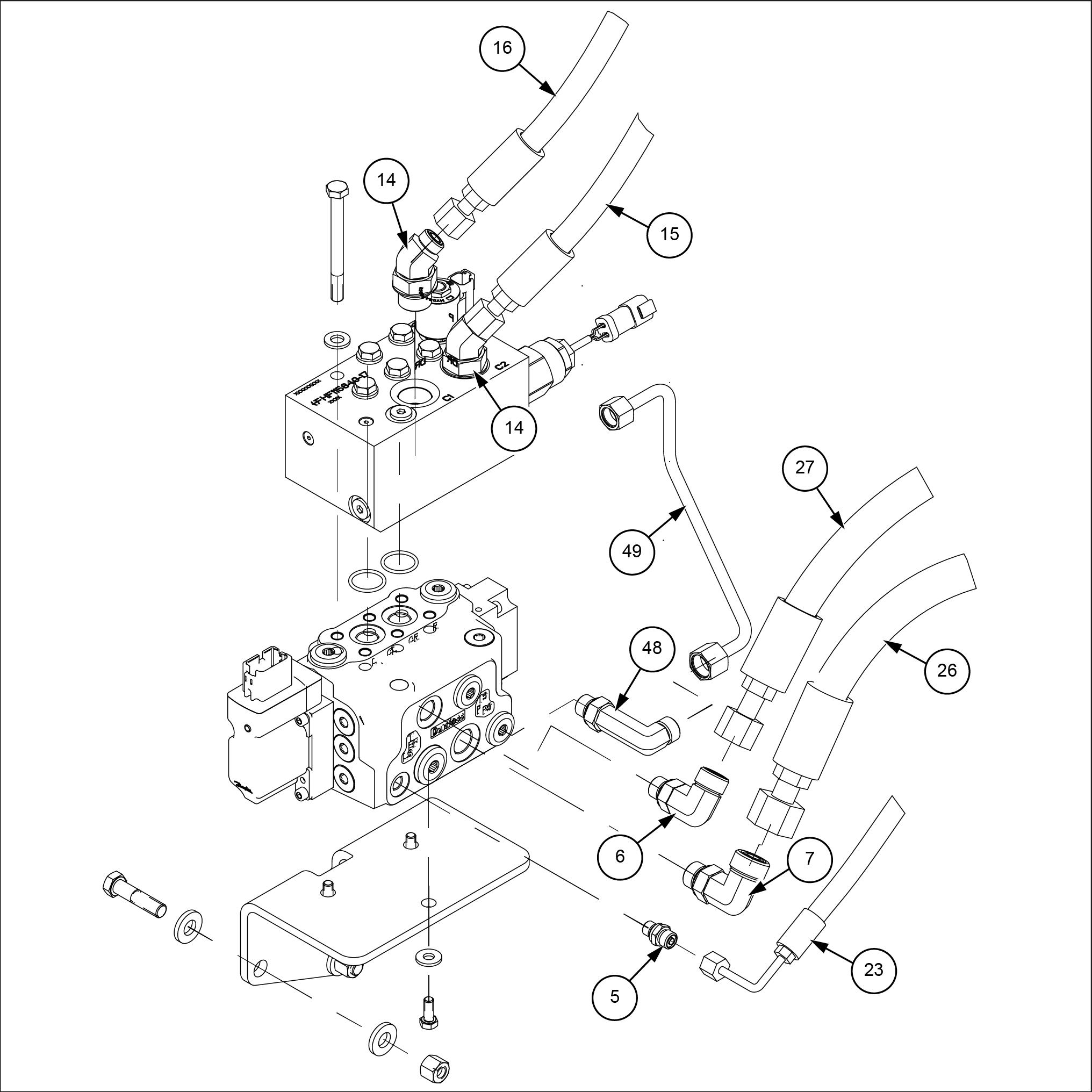

10. Install the JSS load sense hose (23) the straight connector (5) . 1 Install the JSS suction valve hose (26) the ° elbow (7) . 12. Install the hose (27) the ° elbow (6) . 13. Install the joystick steering tube (49) the ° long elbow (48) . 14. Install the hose (15) the ° elbow (14) . 15. Install the hose (16) the ° elbow (14) .

LEIL20WHL1539GB 4
