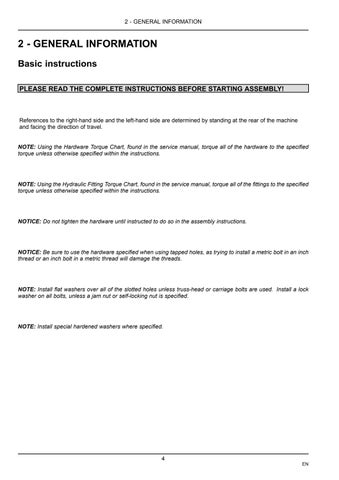

2 - GENERAL INFORMATION
2 - GENERAL INFORMATION###_1_### Basic instructions PLEASE READ THE COMPLETE INSTRUCTIONS BEFORE STARTING ASSEMBLY!
References to the right-hand side and the left-hand side are determined by standing at the rear of the machine and facing the direction of travel.
NOTE: Using the Hardware Torque Chart, found in the service manual, torque all of the hardware to the specified torque unless otherwise specified within the instructions.
NOTE: Using the Hydraulic Fitting Torque Chart, found in the service manual, torque all of the fittings to the specified torque unless otherwise specified within the instructions.
NOTICE: Do not tighten the hardware until instructed to do so in the assembly instructions.
NOTICE: Be sure to use the hardware specified when using tapped holes, as trying to install a metric bolt in an inch thread or an inch bolt in a metric thread will damage the threads.
NOTE: Install flat washers over all of the slotted holes unless truss-head or carriage bolts are used. Install a lock washer on all bolts, unless a jam nut or self-locking nut is specified.
NOTE: Install special hardened washers where specified.
4 EN
