Fuel Pump Disassembly and Reassembly

Alternator

Removal and Installation

-124-

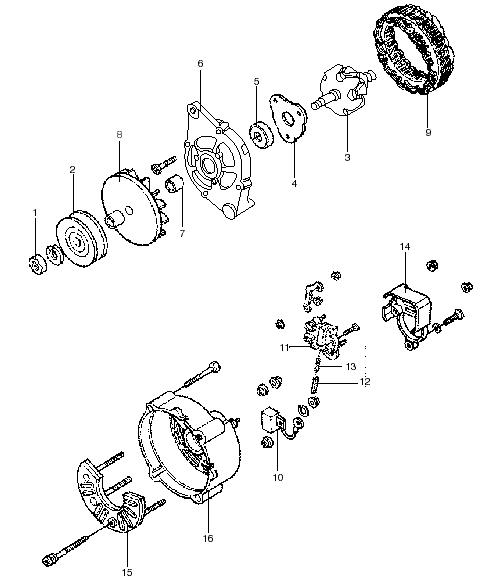

Removal steps

1.Nut 2.Pulley 3.Rotor Assy 4.Bearing Retainer 5.Bearing 6.Front Bracket 7.Spacer 8.Fan 9.Stator Assy 10.Condenser Assy 11.Regulator 12.Brush 13.Spring 14.Slinger 15.Rectifier Assy 16.Rear Bracket

Accessory Drive Belt Replacement

Removal Procedure

1. Loosen alternator mounting bolts. 2. Rotate alternator to reduce belt tension and remove drive belt.

Installation Procedure

1. Route the belts over all the pulleys including the alternator. 2. Rotate alternator to tension belts and tighten mounting bolts.

-125-
