I/O STATIONS UNDER TEMPERATURE
from Cat Electric Rope Shovel 465 Series IGBT Shovel HMI - WINCC Manual (Service Manual) - PDF DOWNLOAD
• MCC Rack Temperature Too High (I 24.6) • Crowd Rack Temperature Too High (I 0.6) • Operators Cab Rack Temperature Too High (I 28.6) • Hoist Rack Temperature Too High (I 8.6) • Skid Rack Temperature Too High (TH2) (I 32.5) • Skid Rack Temperature Too High (TH1) (I 32.4) • Drive Cabinet Rack Temperature Too High (I 32.6) • Lube Rack Temperature Too High (I 17.6) • I/O Station Over-temperature (M30.1)

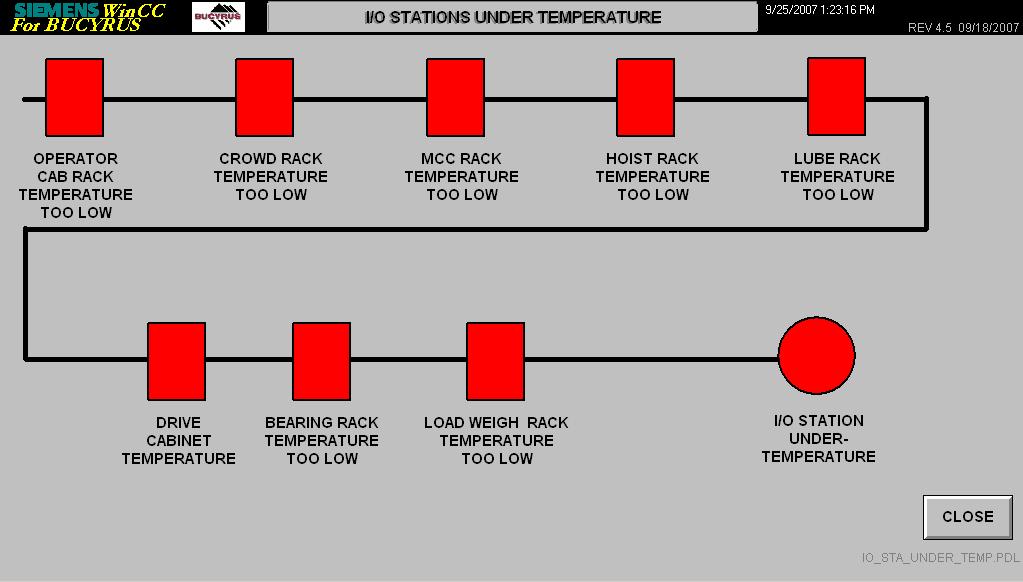

I/O Stations Under Temperature
• Operators Cab Rack Temperature Too Low (I 28.7) • Crowd Rack Temperature Too Low (I 0.7) • MCC Rack Temperature Too Low (I 24.7) • Hoist Rack Temperature Too Low (I 8.7) • Lube Rack Temperature Too Low (I 17.7)
