MOTION CONTROL STATUS SCREEN
from Cat Electric Rope Shovel 465 Series IGBT Shovel HMI - WINCC Manual (Service Manual) - PDF DOWNLOAD
Motion Control Status Screen

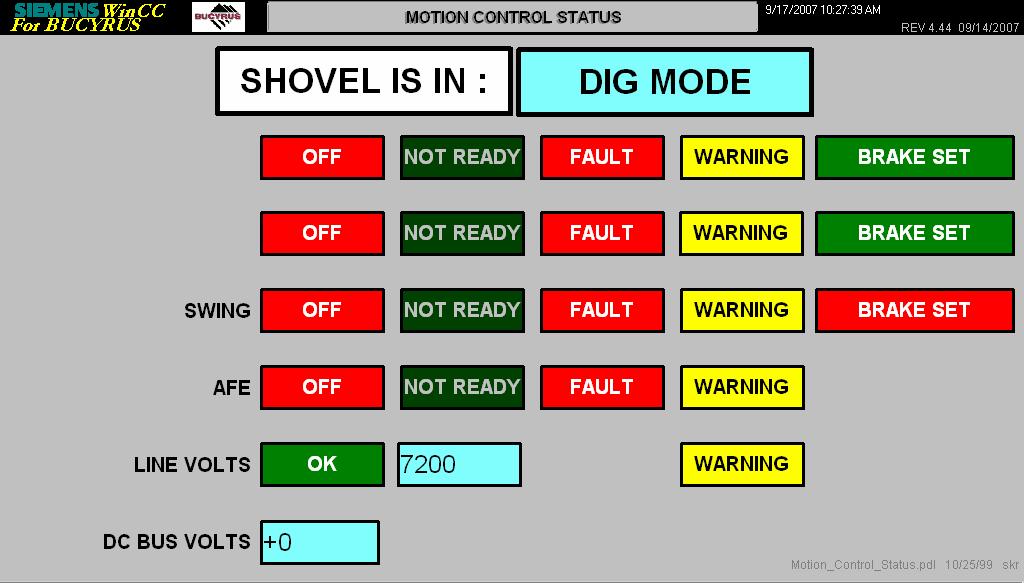

The Motion Control Status screens provide general troubleshooting information for all Motions and the AFE. Status displays for each motion include ON/OFF, READY/NOT READY, FAULT/NO FAULT, WARNING and BRAKE SET/BRAKE RELEASE. Additional Status displays include: Line Volts HIGH/LOW/OK, WARNING, Actual Line Voltage & DC Bus Voltage.
The Shovel mode is displayed at the top of the screen. The Swing, AFE, Line Volts and DC Bus Volts displays are visible in both Dig and Propel modes. When the shovel is in Dig Mode the top two displays will be Hoist and Crowd statuses. When the shovel is in Propel mode, Right Propel and Left Propel statuses will be displayed in these positions.
This screen is also available from the Status submenu.
