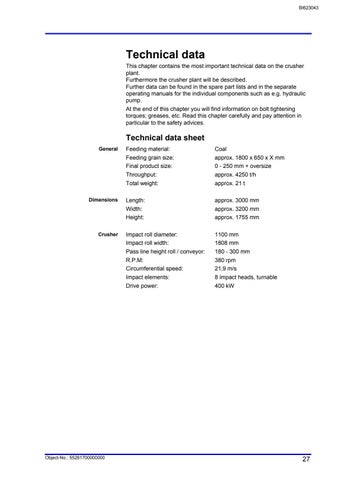

Technical data This chapter contains the most important technical data on the crusher plant. Furthermore the crusher plant will be described. Further data can be found in the spare part lists and in the separate operating manuals for the individual components such as e.g. hydraulic pump. At the end of this chapter you will find information on bolt tightening torques; greases, etc. Read this chapter carefully and pay attention in particular to the safety advices.
Technical data sheet General
Dimensions
Crusher
Object-No.: 55281700000000
Feeding material: Feeding grain size: Final product size: Throughput: Total weight:
Coal approx. 1800 x 650 x X mm 0 - 250 mm + oversize approx. 4250 t/h approx. 21 t
Length: Width: Height:
approx. 3000 mm approx. 3200 mm approx. 1755 mm
Impact roll diameter: Impact roll width: Pass line height roll / conveyor: R.P.M: Circumferential speed: Impact elements: Drive power:
1100 mm 1808 mm 180 - 300 mm 380 rpm 21,9 m/s 8 impact heads, turnable 400 kW
