Operating conditions

are protected against thermal radiation. are accessible at all times.

Push hydraulic hoses into the sockets only by hand. Never try to drive the hydraulic hoses in with a tool as this may damage the connections. When installing the hoses ensure that they cannot be: torn out, kinked, squeezed, driven over or twisted (Figure 6). by the movement of the crusher plant.

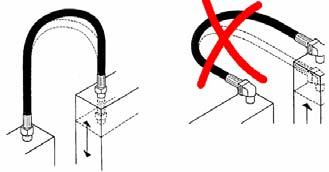

Figure 6: Laying hydraulic hoses, connection to moving parts

CORRECT WRONG

Others

Always wear your personal protective equipment. This also includes ear protectors as the noise emitted by the crusher plant may at times exceed 85 dB(A), (e.g. when the plant is being emptied). When working with oils, greases, and other chemical substances, observe the safety regulations applicable to the respective product. Dispose of cleaning rags etc. which have been soiled with oil, grease, or other chemical substances in an environmentally safe manner.

noise emissions

environmental acceptability

Intended use

The crusher plant will be used in a coal mine. Employ the crusher plant only for its intended use! The intended use is: Crushing coal

Unauthorized use

Applications not expressly listed as intended uses are unauthorised uses and not allowed to be performed with the crusher plant. Such unauthorized use includes i.a.: Transporting persons or objects of any kind Crushing other material

Bucyrus accepts no liability for any damage resulting from any such unauthorised use.

3Storage and transport
