(optional) power fill filter Monthly

Change the power fill filter element (Fig. 39). If the element is extremely dirty, a more frequent interval may be required.

Lubricate grease fittings on the rod and base ends of the conveyor lift and tilt cylinders. Pump grease into the fittings until new grease can be observed coming out of the pins.

Lubricate grease fittings on both left and right side crawler anchor pins. Pump grease into the fittings until new grease can be observed coming out of the pins.

conveyor lift and tilt cylinders

crawler anchor pins

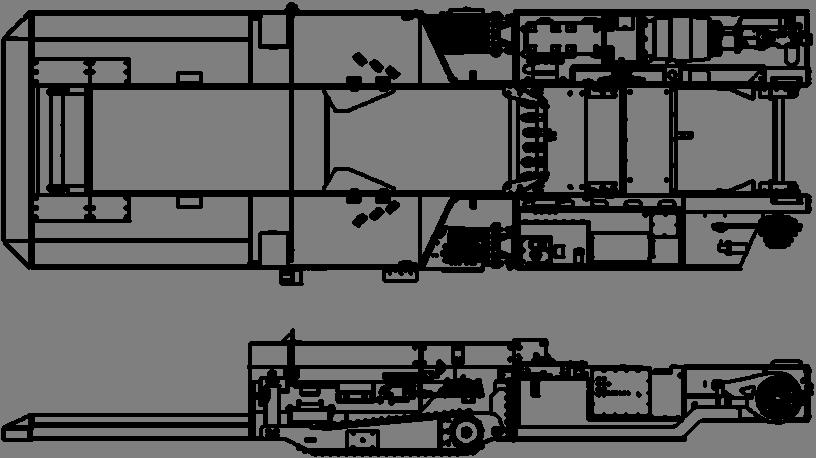

Fig. 39: Power fill filter and lubrication point location

Tilt cylinder (s) (grease fitting located on rod and base end) Crawler anchor pin (s) (grease fitting located inside crawler frame) Power fill filter

Lift cylinder (s) (grease fitting located on rod and base end)
