CRANKCASE BREATHER

REMOVE CRANKCASE BREATHER 1317-11

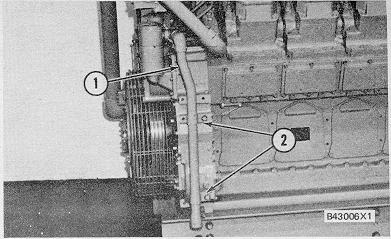

1. Remove the bolts from clips (2). Loosen the clamps that hold the hose assembly to the crankcase breather assemblies. Remove fumes disposal group (1) and the hose assembly as a unit from the breather assemblies.

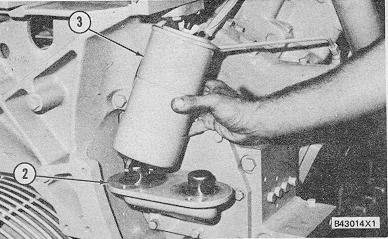

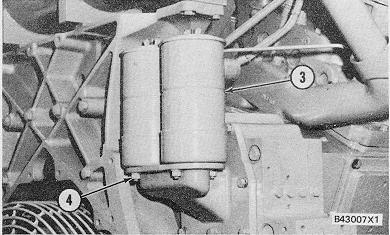

2. Remove four nuts (4) and remove breather assemblies (3) from the elbow.

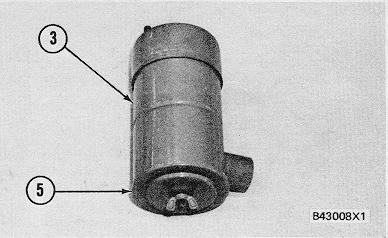

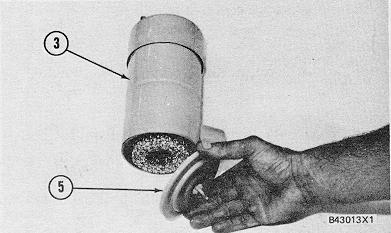

3. Remove cover assembly (5) from each breather assembly (3).

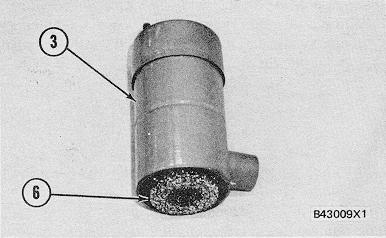

4. Remove filter element (6) from each breather assembly (3).

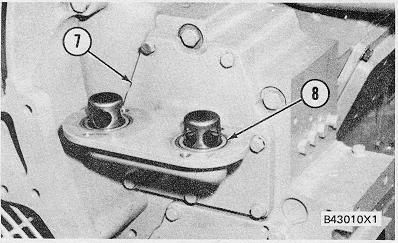

5. Remove O-ring seals (8) from elbow (7).

6. Remove elbow (7) and the gasket from the front drive housing.

CRANKCASE BREATHER

INSTALL CRANKCASE BREATHER 1317-12

1. Install the gasket and elbow (2) on the front drive housing.

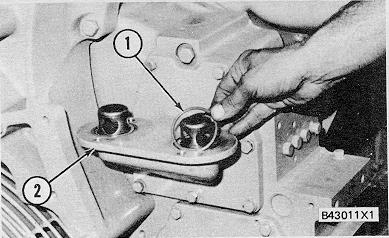

2. Install O-ring seals (1) on the elbow and put clean oil on the seals.

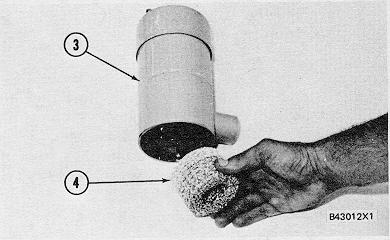

3. Install element (4) in each breather assembly (3).

4. Install cover assembly (5) on each breather assembly (3).

5. Put breather assemblies (3) in position on elbow (2) and install the four nuts to hold the breathers in position.

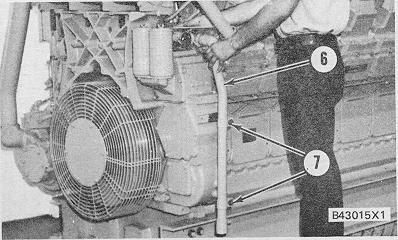

6. Put fumes disposal group (6) and the hose assembly in position on the breather assemblies. Tighten the clamps for the hose assembly and install the bolts to hold clips (7) to the front drive housing.

271

WATER TEMPERATURE REGULATORS

REMOVE WATER TEMPERATURE REGULATORS 1355-11

start by: a) remove fuel filter housing

1. Remove the clamps to remove the fuel lines from the water temperature regulator housings and remove the plate on top of the oil filter housing.

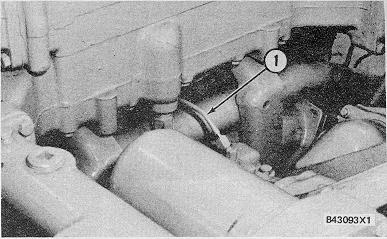

2. Disconnect tube (I) from the regulator housings and the aftercooler adapter. Remove the tube from the engine.

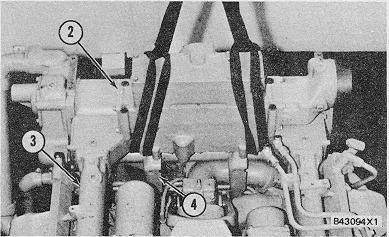

3. Fasten a hoist to water temperature regulator housings (2) as shown. Remove the bolts that hold housings (2) to water manifolds (3) and brackets (4). Remove the housings from the engine. The weight of housings (2) is 49 kg (108 lb.).

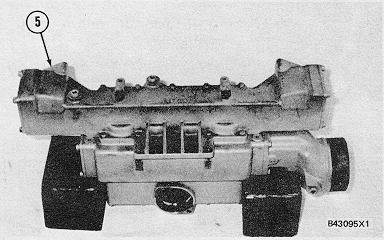

4. Remove the bolts and remove housing (5) from the water temperature regulators.

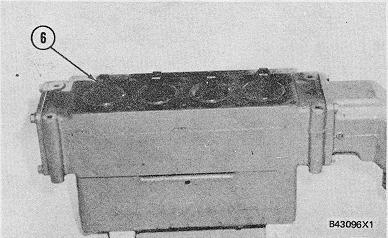

5. Remove regulators (6) from the housing.

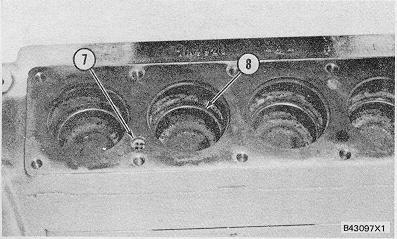

6. If necessary, remove seals (8) from the housing.

7. Remove ferrule (7) and the ball from the housing necessary.

272

WATER TEMPERATURE REGULATORS

INSTALL WATER TEMPERATURE REGULATORS 1355-12

Tools Needed A 1P510 Driver Group 1

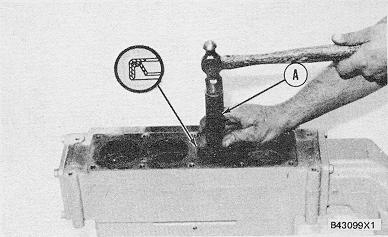

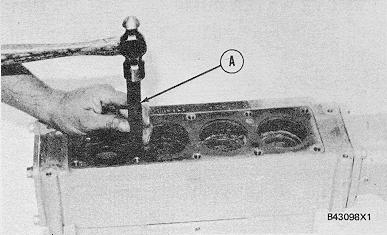

1. If the ball and ferrule were removed, install the ball and use tooling (A) to install the ferrule until it makes contact with the bottom of the bore. Make sure the open end of the ferrule is toward the outside of the housing.’

2. If the seals were removed, use tooling (A) to install the seals in the housing. Make sure the lip of the seal is toward the inside of the housing as shown.

NOTICE If the water temperature regulators are installed wrong, it will cause the engine to overheat.

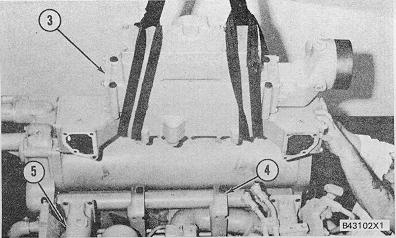

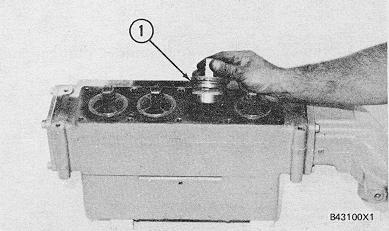

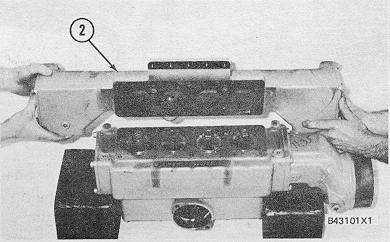

3. Install water temperature regulators (1) in the, housing with the spring up as shown. 4. Put housing (2) and the gasket in position on the regulators. Install the bolts to hold the housing in position. 5. Fasten a hoist to water temperature regulator housings (3) and put the housings and gaskets in position on the engine. Install the bolts to hold the housings to water manifolds (5) and brackets (4). 6. Install the tube between the aftercooler adapter and the regulator housings. 7. Put the plate on top of the oil lifter housing and install the bolts. Install the fuel lines and the clamps on the water temperature regulator housings. end by: a) install fuel filter housing

273

WATER PUMP

REMOVE WATER PUMP 1361-11

1. Drain the coolant from the cooling system.

2. Disconnect the water supply line from the water pump inlet.

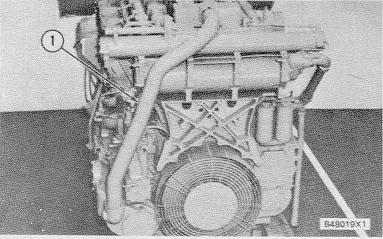

3. Remove the bolts and retainers from both ends, of tube (1) and remove tube (1) from the engine.

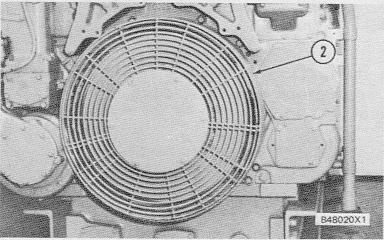

4. Remove the bolts and remove damper guard (2) from the engine.

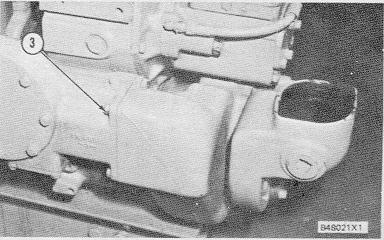

5. Remove bolts (3) that hold the pump to the water line adapter.

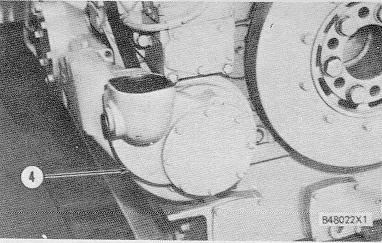

6. Fasten a hoist to water pump (4) and remove the four bolts that hold the pump to the oil and water pump drive adapter. Remove pump (4) from the engine. The weight of the pump is 39 kg (85 lb.).

274
