10
SECTION 02 - CONTROLS AND INSTRUMENTS
3.

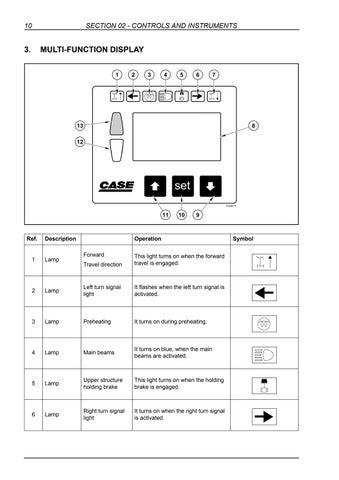

MULTI-FUNCTION DISPLAY
Ref.
Description
Operation Forward Travel direction
This light turns on when the forward travel is engaged.
Lamp
Left turn signal light
It flashes when the left turn signal is activated.
3
Lamp
Preheating
It turns on during preheating.
4
Lamp
Main beams
It turns on blue, when the main beams are activated.
5
Lamp
Upper structure holding brake
This light turns on when the holding brake is engaged.
6
Lamp
Right turn signal light
It turns on when the right turn signal is activated.
1
Lamp
2
Symbol
