C) Tool assembly

C) Tool assembly

WARNING!

For safety reason, the carrier must be switched off before performing the following work.

• Never use your fingers to check whether the recesses on the working tool shaft are aligned to the slots for the tool pin. • Always wear protective glasses when fitting or removing the tool, since metal splinters may fly off when breaking out the stopper pins. • Clean away any dirt adhering to the working tool in the insert zone. • Lubricate to the contact faces in the lower breaker part between the working tool and the wear bushes. • The tool should only be fitted correctly.

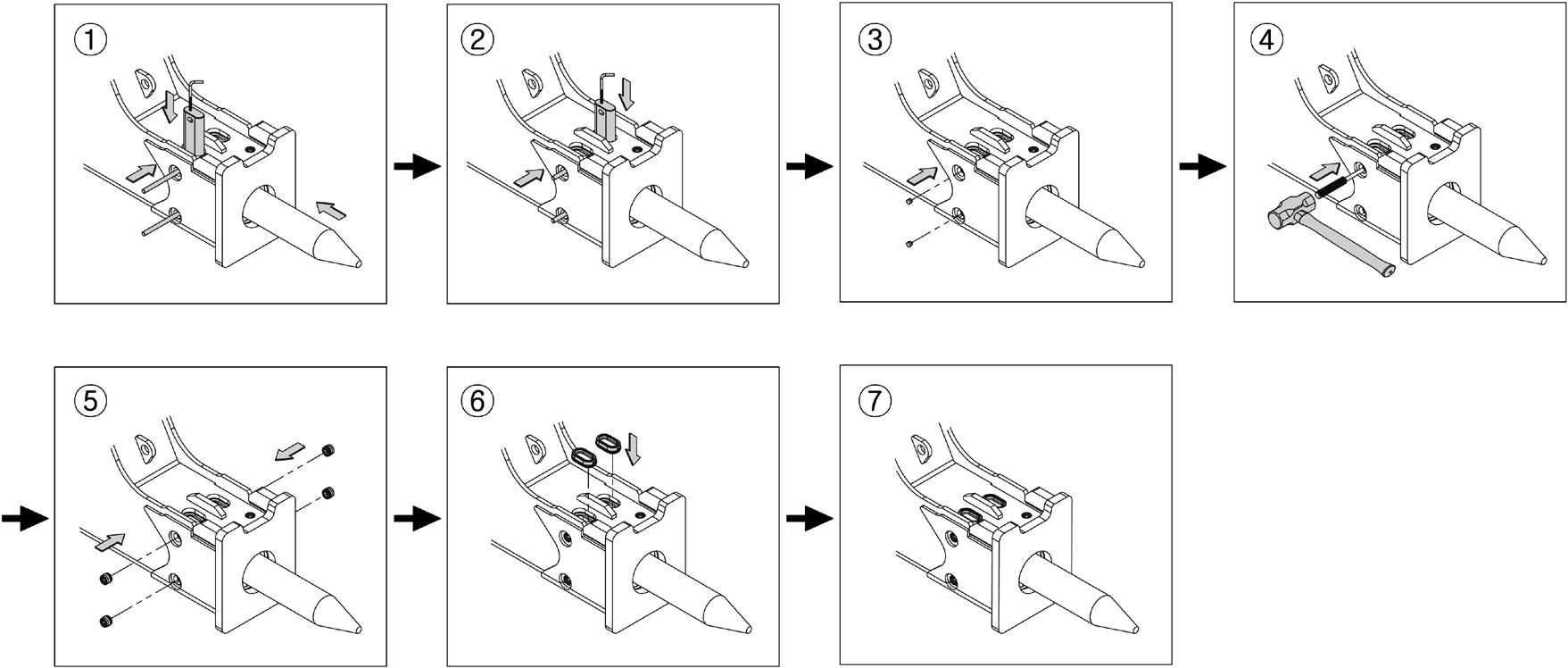

CB20, CB40, CB60, CB80

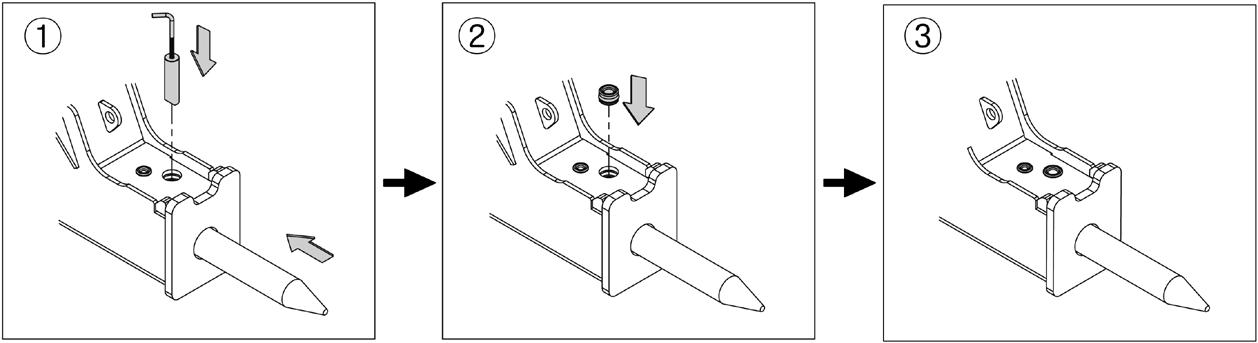

CB140, CB210, CB380
