g) Gas charging

Torque value Turn (from previous step) Torque value Turn (from previous step) CB20 – – – –

CB40 –CB60 –CB80 –CB140 160/1,568/1,258 2.2/6 – –

CB210 150/1,470/1,085 1.5/6 270/2,646/1,953 1/6 (1.7/6) CB380 250/2,450/1,808 1.5/6 390/3,822/2,821 1.2/6 (1.8/6)

• Torque unit: kg.m/N.m/ft.lb • Value in ( ) shall be applied to the breakers in India, Middle East and Mexico.

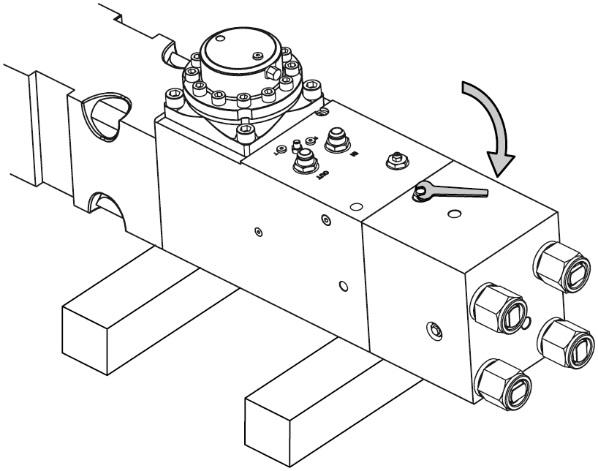

Assemble gas charge valve and valve cap. Charge gas into back head and assemble gas valve cap. See Gas Pressure and Gas Charging on page 35~38.
