B) Housing assembly

Next Article
e) Through bolt set assembly

e) Through bolt set assembly

B) Housing assembly

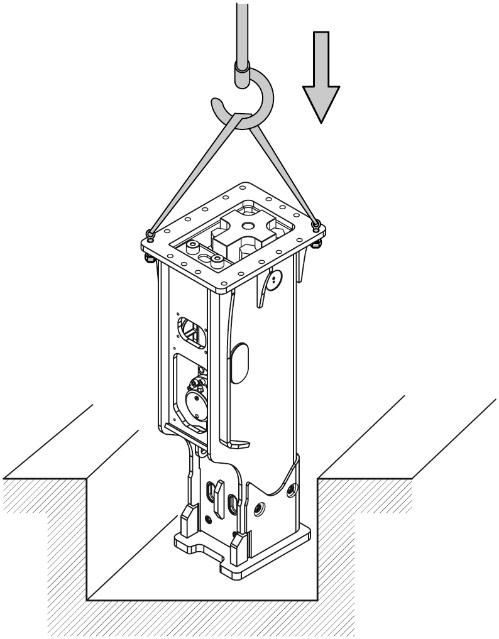

a. Assemble bottom damper and, O-rings and shall pads on the housing. Then place the housing on the holding pipe.

b. Assemble power cell, power cell holder, shell pad, O-rind and upper damper.

c. Assemble breaker bracket according to Torque Value on page 65.

d. Assemble hose and gas covers or optional ALS.
