LUBRICATION/FILTERS/FLUIDS ......................................................... 194

PL Version. Use the dozer blade to raise the front of the machine slightly so that the front wheels are no longer in contact with the ground. Use the attachment to raise the rear of the machine slightly so that the rear wheels are no longer in contact with the ground and place blocks under the rear axle.

P2A Version. Use the stabilizers to raise the rear of the machine slightly so that the rear wheels are no longer in contact with the ground. Use the attachment to raise the front of the machine slightly, so that the front wheels are no longer in contact with the ground and place blocks under the front axle.

P2AL Version. Use the dozer blade and the stabilizers to raise the machine so that the wheels are not no longer in contact with the ground. Then lower the attachment until the bucket is resting on the ground. P2A+2A Version. Use the front and rear stabilizers to raise the machine so that the wheels are no longer in contact with the ground. Then lower the attachment until the bucket is resting on the ground.

STEP 3

Stop the engine and remove the starter switch key.

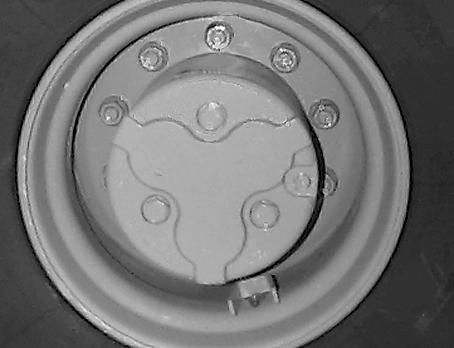

PH07835 Turn the wheel manually until the filling orifice is in the lowest position.

STEP 5

Place a receptacle of a suitable capacity under the reduction gear, remove the plug and allow the oil to flow out.

STEP 6

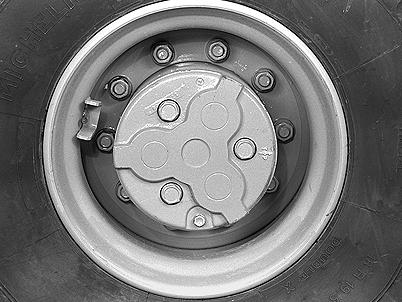

CD97H004 Turn the wheel manually until the filling orifice is in horizontal position on the right and fill via this orifice until the oil is level with the edge of the orifice.

STEP 7

Install the plug.

STEP 8

Repeat Steps 4 through 7 for the other reduction gears.
