ELECTRIC TRAVEL

ELECTRIC TRAVEL (optional)

IMPORTANT: Use of the electric travel control is strictly forbidden during road travel.

STEP 1 Selecting travel direction STEP 3

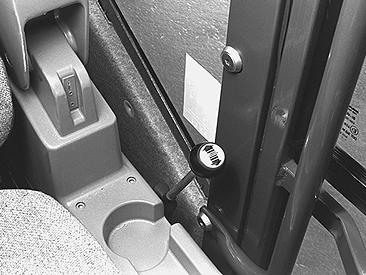

PH07520 Tilt the travel control lever forwards. NOTE: Travel speed increases progressively as the lever is pushed forward.

STEP 2

2

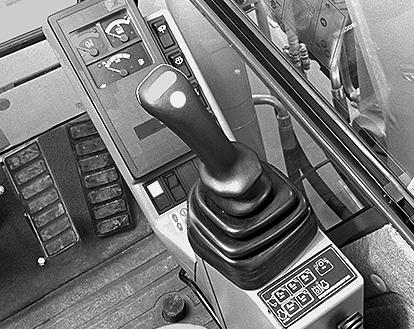

CD99N020 Press the switch to select forward travel. The green indicator lamp (2) lights up.

2 1

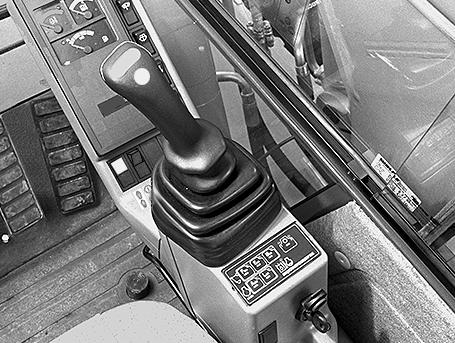

CD99N020 Tilt switch (1) forwards. The green indicator lamp (2) lights up and forward travel is automatically selected. 3

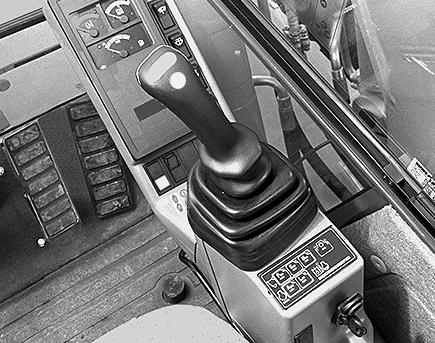

CD99N021 Press the switch to select travel in reverse. The red indicator lamp (3) lights up. NOTE: In normal travel position, the operator’s compartment is over the front wheels. IMPORTANT: If the steering wheels are at the rear (in working position) the direction of travel will be invested.

STEP 4

CD99M019 Machine travel speed depends on the extent to which the travel control pedal is pressed down. NOTE: Travel speed also depends on the speed range which is selected on the control panel. See “Control panel” on the “Controls/Instruments/Accessories” Section. IMPORTANT: It is mandatory to wait for the machine to come to a complete halt before changing direction of travel.
