MAXIMUM OPENING RANGE AND MAXIMUM FORCE

MAXIMUM OPENING RANGE AND MAXIMUM FORCE Backhoe bucket Quick Coupler (optional)

The linkage position of the bucket and the dipper can be adapted to suit the work to be done. The linkage position of the Quick Coupler and the connecting rod can be adjusted to suit the work to be done.

2 1

2

1

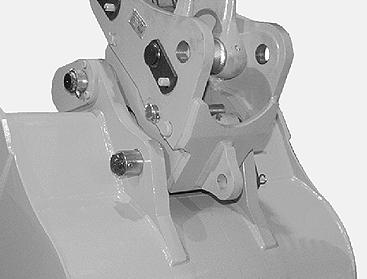

PH07809 Maximum opening range position (1). Maximum force position (2). NOTE: During road travel, the backhoe bucket must be in the maximum force position. See “Road travel” in the “Job Site and Road Operation” Section.

CK97A001 Maximum bucket opening range position (1). Maximum bucket force position (2). To change the linkage point, remove the pin, operate the bucket cylinder control to bring the connecting rod to the other linkage point and install the pin.
