FOLDING STABILIZERS

FOLDING STABILIZERS (optional)

The position of the beam and stabilizer assembly can be adapted to suit the surrounding conditions. The various positions are obtained by immobilizing or not immobilizing the righthand or left-hand stabilizers by means of lock pins.

Stabilizer lock pins

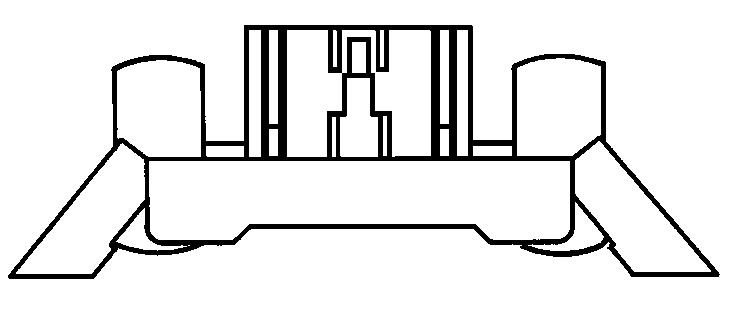

Maximum stability position

1 3

2

PH0598 The locked stabilizer position is obtained by positioning the lock pin (1) at position (2). The unlocked position is obtained by positioning the lock pin (1) at position (3). NOTE: In each position, install the split pin on the lock pin.

PDH0647 Place the left-hand and right-hand lock pins (1) in position (3).

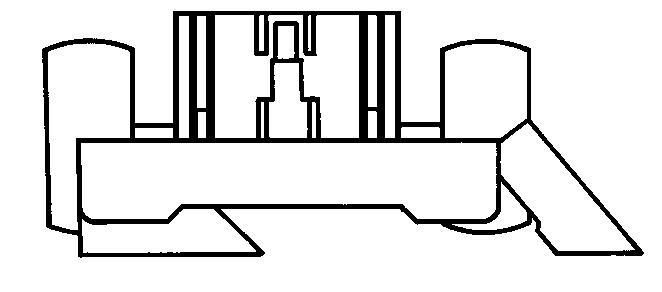

Right-hand or left-hand locked stabilizer position

PDH0648 Place the right-hand or left-hand lock pin (1) in position (2).
