ACCESS PANELS

When it is removed, place the side hood alongside the valve bank partition. After servicing, install the side hood.

PG02607M

The access panels must be removed to perform service work.

CD00C001 For better access to components, place the upperstructure at right angles to the undercarriage.

PH08006 The center panel provides access mainly to the engine components.

PG02727 To remove the center panel, release the lever located in the panel hole and pull the panel backwards.

-One 17 mm wrench for hexagonal head screws

CD99G028 To remove the side panels, remove the retaining screws. IMPORTANT: Do not operate the machine if the side panels have been removed.

WARNING: Before travelling, make sure the access panels are fastened in place.

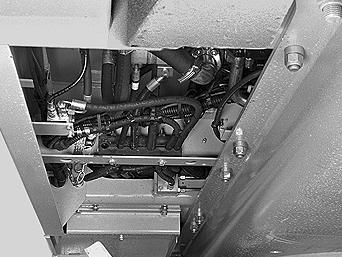

PH08003 The left-hand panels provide access to the anti-surge valve and to the hydraulic reservoir shut off valve and drain plugs.
