WINDSHIELD

IMPORTANT: Before opening the windshield, make sure that the windshield wiper is secured on the windshield and that the forward and rear view mirrors are not folded back against the windshield.

Opening

STEP 1 STEP 3

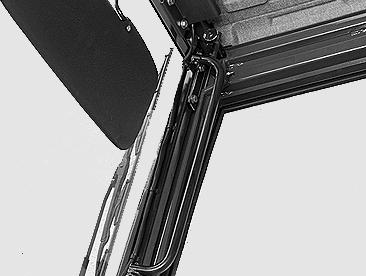

PE08220 Pull the two handles inwards to unlock the windshield and then pull backward.

STEP 2

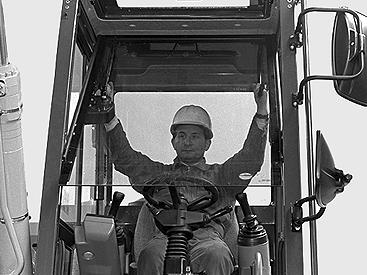

PH08302 Pull the windshield completely back and then push the two handles outwards so as to lock the windshield in position. IMPORTANT: Make sure that the windshield is securely locked.

Closing

STEP 1

PH07901 Using the handles, move the windshield into horizontal position.

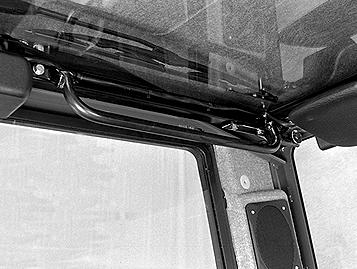

PH08302 Pull the two handles inwards to unlock the windshield and then push forward.

PH07903

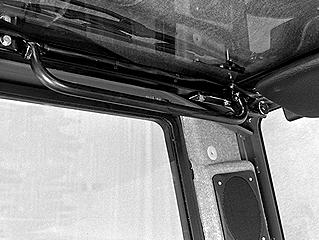

PH08305 Lower the windshield. Push the two handles outwards so as to lock the windshield in position. IMPORTANT: Make sure that the windshield is securely locked.

WARNING: In certain configurations, a swinging attachment can cause interference between the attachment tool (a bucket, for example) and the windshield. Always keep a safe working distance between the attachment tool and the windshield (in case of tool swinging or accidental movements).

IMPORTANT: After cleaning the windshield, be sure to reposition the wiper correctly if it has been tilted forward, as it can be damaged when opening the windshield.
