OPTIONAL TOOL SUPPLY VALVES

Template Date: 1994_04_29Template Name: OM_1_col

Alt+ to display template informationAlt= to hide template information

TRIM THIS EDGE

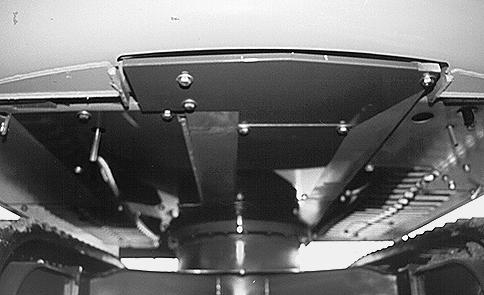

LOWER PANELS

CP99A006 These panels are located under the upperstructure frame and give to certain machine components. IMPORTANT : Do not operate the machine with the panels removed.

WARNING : Before undertaking any travel, make sure the panels are correctly locked.

WINDSHIELD WASHER RESERVOIR

CK98M020 IMPORTANT : Never operate the windshield washer control when the reservoir is empty. This could cause damage to the electric pump. Remove the cap to fill the reservoir. NOTE : In cold weather, add anti-freeze to the windshield washer water.

This reservoir, located on the left in the engine compartment, is equipped with an electric pump which is operated from the right-hand control arm. See item 4 under “Right-hand control arm”.

70
