FUEL SYSTEM
COOLING SYSTEM Service specifications
Coolant reservoir level check..........................................................Every 10 hours or every day Cooling system hose and clamp tightness check.........................Every 200 hours or every six months Coolant solution change........................................Every 2000 hours or every year System capacity.......................................................................................10.1 litres
WARNING : Boiling coolant solution can spray out if the radiator cap is removed while the system is still hot. To remove the cap, allow the system to cool down, turn the cap to the first notch and wait until there is no more pressure. Then remove the cap.
WARNING : Check and service the cooling system according to the instructions given in this manual.
!
Coolant solution
Put only ethylene-glycol coolant solution in the cooling system. Use good quality ethylene-glycol that has a high boiling point, with no additives to prevent leakage. Do not use non-approved anti-rust additives. Anti-rust additives and ethylene-glycol can mix and work against each other, thereby reducing anti-corrosion protection, forming deposits in the cooling system and causing damage to the cooling system and radiator.
Consult your CASE Dealer for suitable coolant solution. TRIM THIS EDGE
141
TRIM THIS EDGE RIGHT PAGE
Template Name: OM_1_colTemplate Date: 1994_04_29
Template Date: 1994_04_29Template Name: OM_1_col
TRIM THIS EDGE
Level
The level of coolant solution should be checked when the engine is cold.
!
WARNING : Do not remove the radiator cap when the engine is hot. The system is still under pressure and you could be scalded.
STEP 2
1
2

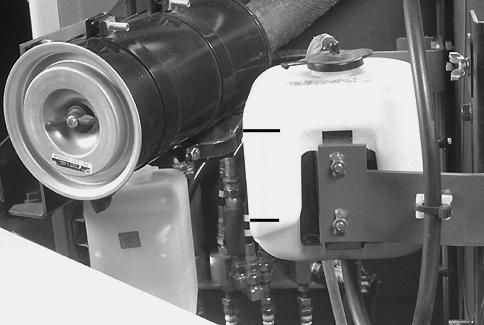

CK98M019 On flat, level ground, before using the machine, (while the engine is still cold), the level in the coolant reservoir should be between the “FULL” (1) and “LOW” (2) marks. If not, see “Filling”.
Draining
STEP 1
CS98M616

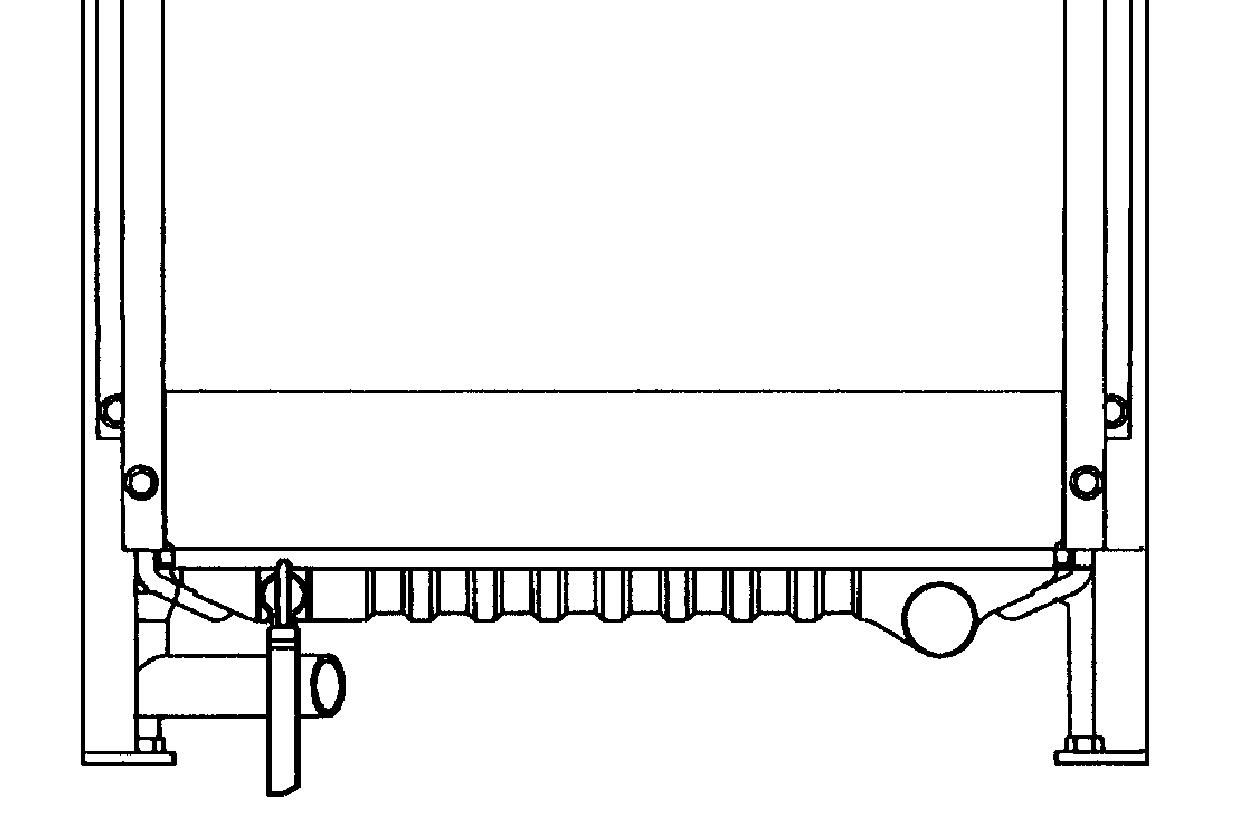

Open the radiator drain valve. NOTE : Have a receptacle of a suitable capacity ready.
STEP 3
CK98M021 CS98M580

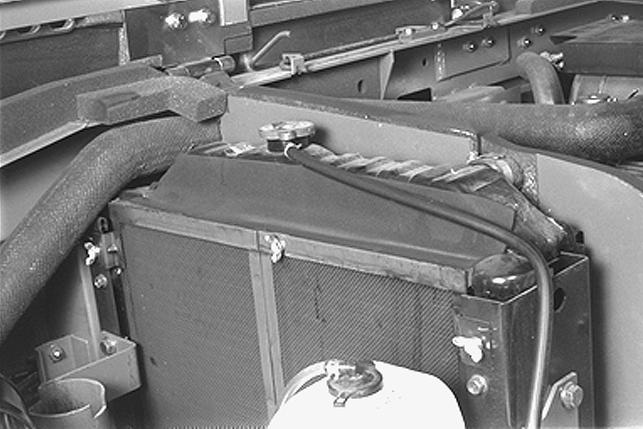

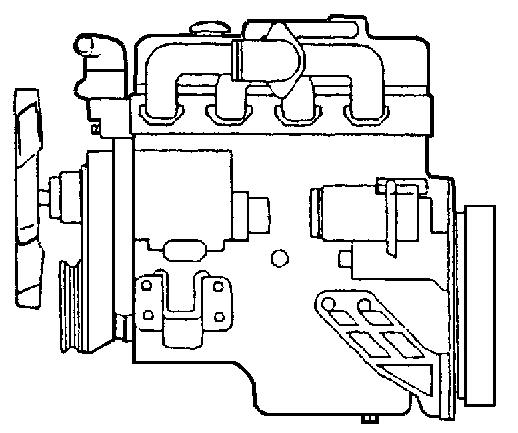

Remove the radiator cap. Remove the drain plug located on the engine block. NOTE : Have a receptacle of a suitable capacity ready.
