TRAVEL REDUCTION GEARS

IMPORTANT : Compressed air pressure should not exceed 7 bar. NOTE : Do not use compressed air if there is oil or soot on the primary element.

PDE0088

If the primary element is oily : Clean it in water with a suitable detergent (consult your CASE Dealer). Instructions for using the detergent are printed on the packaging. IMPORTANT : Allow the primary element to dry completely before installing. It is advisable to keep a spare, clean the primary element ready for installation while the other primary element is drying.

Inspecting the primary element

PDE0378 Check the primary element for damage by placing an inspection lamp inside the element.

IMPORTANT : Replace the primary element if light can be seen through a hole, however small.

Installing the elements

STEP 1

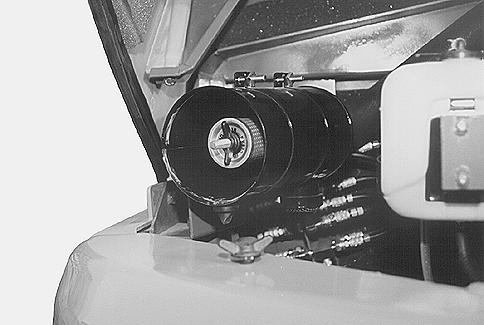

CP99B012 Install the secondary element and tighten the wing nut. TRIM THIS EDGE

159
