RELEASING PRESSURE IN THE HYDRAULIC SYSTEM
STEP 4 STEP 2
Rinse the radiator and the expansion reservoir with clean water.
STEP 5
Close the drain valve when the radiator is completely empty. Install the drain plug on the engine block. Fill it again.
Filling
STEP 1
CK98M019 Fill the expansion reservoir to the “FULL” mark and install the cap. IMPORTANT : Use the correct coolant solution.
CK98M021 Fill with coolant solution via the radiator until overflowing and install the radiator cap.
STEP 3
Run the engine at idle speed for about five minutes. Add coolant solution if the level in the expansion reservoir drops. IMPORTANT : Do not fill the expansion reservoir above the “FULL” mark.
TRIM THIS EDGE
143
TRIM THIS EDGE RIGHT PAGE
Template Name: OM_1_colTemplate Date: 1994_04_29
Template Date: 1994_04_29Template Name: OM_1_col
TRIM THIS EDGE
FUEL SYSTEM Service specifications
Draining water and sediment from the fuel tank..............................Every 50 hours Draining water from the water separator.........................................Every 50 hours Fuel filter replacement..................................................................Every 500 hours Fuel tank capacity.....................................................................................140 litres Type of fuel...................................................................See “Fluids and lubricants”
Draining water and sediment from the fuel tank

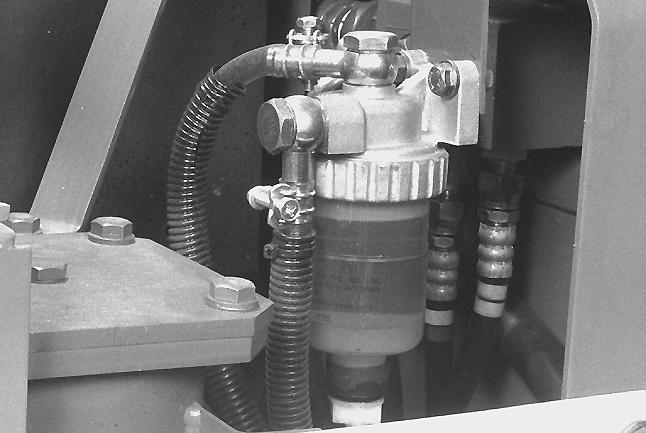

Draining water from the water separator
2 A
CS98M614 Have a container ready to collect the drained contaminants.
Open the drain valve located at the bottom of the tank and drain the accumulated sediment and water.
After draining, close the drain valve. 1
CK98M033
When the float reaches the level line (A)
Loosen the drain plug (1) and drain the water and sediment.
When the float (2) settles on the bottom, tighten the drain plug (1). Verify that there are no fuel leaks.
WARNING : Completely wipe off any spilt fuel. It may cause a fire.
