VanguardTM Twin-Cylinder OHV Liquid-Cooled Engine Section 3 - Engine Disassembly

4. Remove governor control bracket and disconnect governor link , Fig. 45.

Fig. 45

5. Disconnect fuel shut off solenoid wire and remove ground wire. 6. Disconnect breather tube at air cleaner elbow ,

Fig. 46. 7. Remove intake elbow screws . 8. Remove intake elbow and carburetor assembly. 9. Disconnect choke link at choke control.

Fig. 46

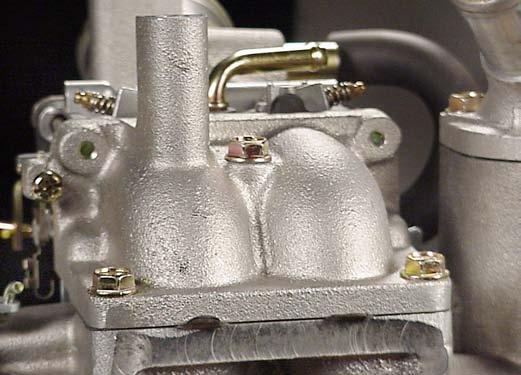

10. Remove air cleaner elbow screws , Fig. 47, and separate carburetor from intake elbow and air cleaner elbow.

Fig. 47

1. Remove two screws and starter motor, Fig. 48.

Fig. 48

Remove Flywheel

1. Remove armatures and ground wire assembly, Fig. 49.
