Cooling system

Engine 1

1_18_11

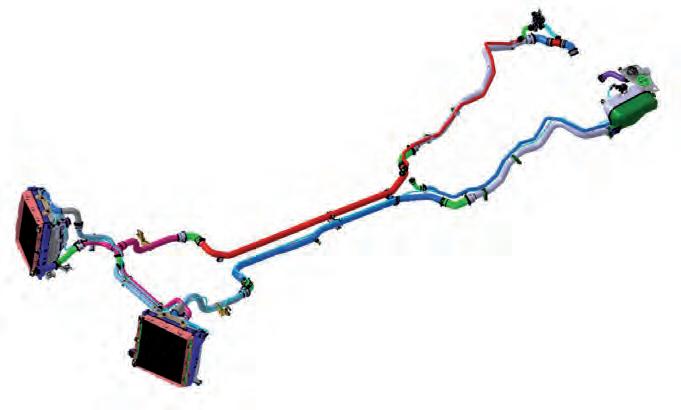

An additional center radiator is available as optional equpment for extremely hot countries.

The coolant quantity can vary between 30.3 and 32 qts (28.7 and 30.3 liters) depending on equipment.

1_19_11

1.9 Cooling system

1_16_11

The coolant expansion tank is located in the service opening under the engine compartment lid, on the left in the direction of travel. There are two caps on the tank, both of which are black for reasons of appearance.

The left-hand cap is for coolant, while the right-hand cap is used as an oil filler opening. The caps themselves are identified with appropriate symbols. The two threads are different to avoid interchanging.

1_17_11

The red ball indicates the current coolant level. This ball must be in the area between the min and max markings (Fig. 1_19_11) when the engine is cold and the vehicle is positioned horizontally.
