Topology of the air-conditioning system

Heating and air conditioning 8

8.6 Topology of the air-conditioning system

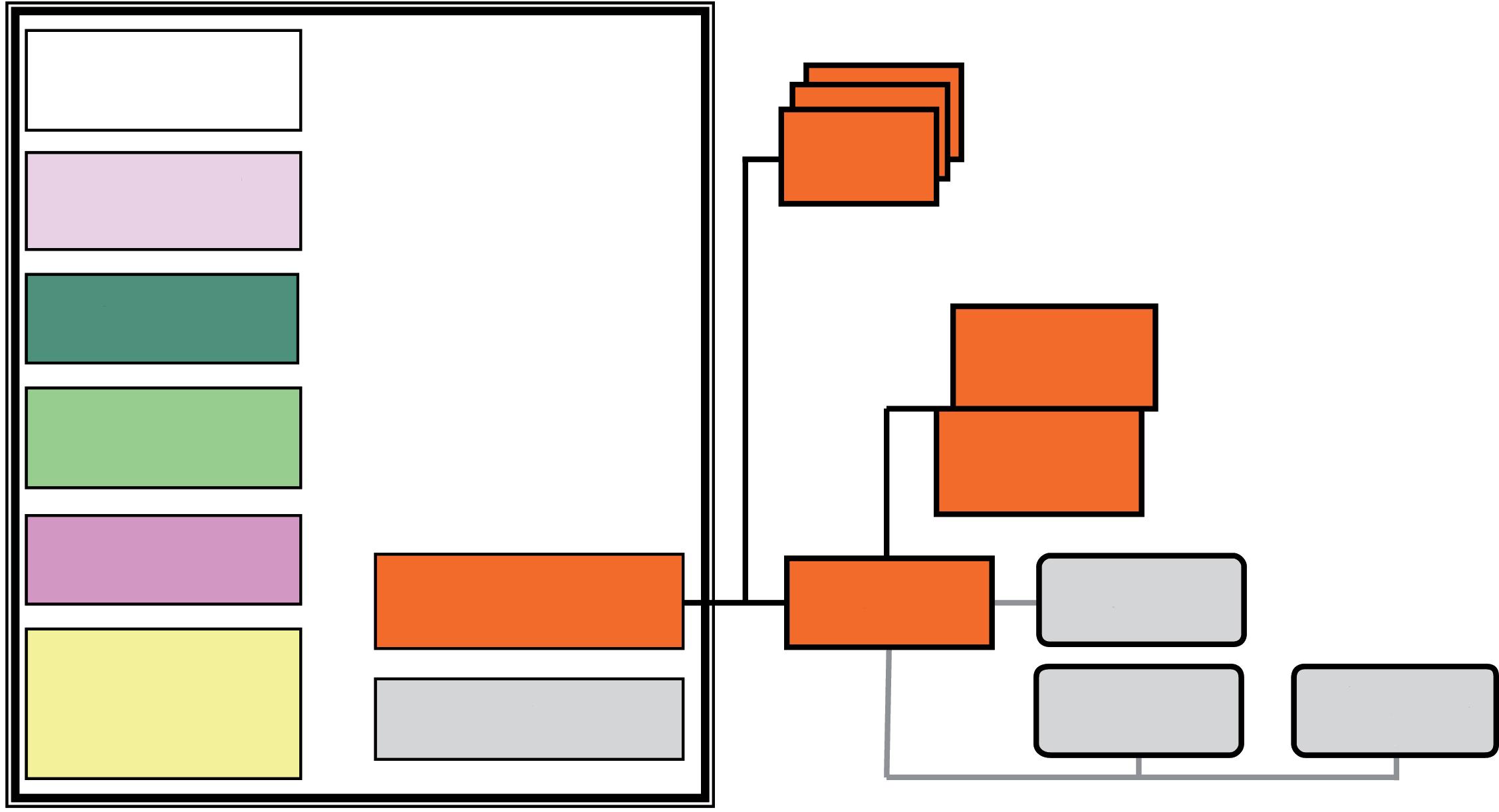

The control unit of the air-conditioning system (Operating and Air-Conditioning Unit) communicates with other control units via CANMMI and with external devices and sensors via the LIN bus. The blower and flaps on the heater as well as the air quality sensor on the air intake tube housing are activated via the LIN bus.

The air-conditioning compressor is activated directly via a PWM (pulse width modulation) signal and is therefore not included in the topology.

Diagnosis 500 kbps

Drive 500 kbps

Gateway

Xi

Chassis 500 kbps

Comfort 500 kbps

MOST 20 Mbps

Crash risks 500 kbps Man Machine Interface

LIN 19.8 kbps CDR-31

PCM 3.1

OAU

LIN AQS

Heater unit Switch module

Xi Control units connected to the CAN MMI (e.g. instrument cluster) OAU Operating and Air-conditioning Unit AQSAir quality sensor

Sun sensor

8_33_11
