Instrument cluster
Electrics and electronics 9
9_61_11
9_63_11 Data bus systems
Two LIN data bus systems are connected to the rear-end electronics control unit with the following function groups: LIN 1: Overhead operating console with inclination sensor, radar interior surveillance, EC interior mirror, externally running sliding roof, air deflector, roll up sunblind LIN 2: Alarm horn

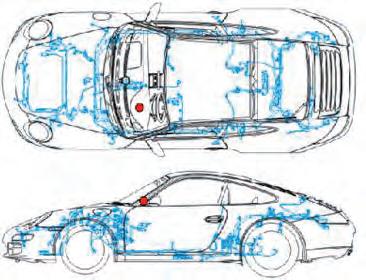

9.7 Instrument cluster

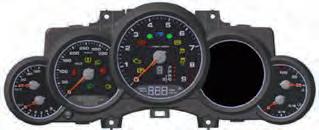

The instrument cluster is the central driver information unit and is used to display data relating to the vehicle, e.g. engine speed, vehicle speed, temperatures and fill levels, warnings and messages. General vehicle settings can be made in the instrument cluster by way of a selection menu and made available to the control unit network via CAN. The following vehicle information is displayed in the middle on-board computer display area: Vehicle, Audio, Navigation, Map, Phone, Trip, Tire pressure, Chrono, Gear shift assist, Maximum g-force.
The instrument cluster also manages all on-board computer values, e.g. remaining range, and the warnings and audio information signals for the entire vehicle system. The engine and vehicle speed evaluation function determines the noise level in the passenger compartment so that the warning tone intensity can be adapted correspondingly. The audio master supports simultaneous output of at least three system tones via the speaker in the instrument cluster (ParkAssist, direction indicator noise, warning tone).
In contrast to the Carrera, the Carrera S is provided with a silver dial face on the tachometer. The other dial faces are black.
Displays:
Description
Distance, trip mileage Digital speedometer, upshift indicator Current gear, transmission position TFT display; main display with on-board computer, warning master, outside temperature/date, compass, setting menus Speed display, Speedometer (km/h or mph) Sport display (only in digital speedometer) Tachometer Fuel level Coolant temperature Oil pressure Oil temperature Tube Displaytype Left Display Center Display Center Display Right Display
Left Analog Center Digital Center Analog Right Analog Right Analog Left Analog Left Analog
Gear shift assist
In order to assist performance-orientated driving, a graphic upshift indicator display is available in the main menu "Gear shift assist". The segments are colored in the order white, yellow, red. Electrics and electronics 9
