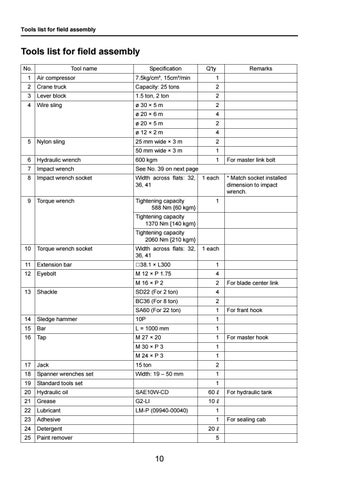

Tools list for field assembly
Tools list for field assembly No.
Tool name
Specification
Q'ty
1
Air compressor
7.5kg/cm², 15cm³/min
1
2
Crane truck
Capacity: 25 tons
2
3
Lever block
1.5 ton, 2 ton
2
4
Wire sling
ø 30 × 5 m
2
ø 20 × 6 m
4
ø 20 × 5 m
2
ø 12 × 2 m
4
25 mm wide × 3 m
2
50 mm wide × 3 m
1 1
5
Nylon sling
6
Hydraulic wrench
600 kgm
7
Impact wrench
See No. 39 on next page
8
Impact wrench socket
Width across flats: 32, 36, 41
1 each
9
Torque wrench
Tightening capacity 588 Nm {60 kgm}
1
Remarks
For master link bolt * Match socket installed dimension to impact wrench.
Tightening capacity 1370 Nm {140 kgm} Tightening capacity 2060 Nm {210 kgm} 10
Torque wrench socket
Width across flats: 32, 36, 41
11
Extension bar
T38.1 × L300
1
12
Eyebolt
M 12 × P 1.75
4
M 16 × P 2
2
SD22 (For 2 ton)
4
BC36 (For 8 ton)
2
SA60 (For 22 ton)
1
13
Shackle
1 each
14
Sledge hammer
10P
1
15
Bar
L = 1000 mm
1
16
Tap
M 27 × 20
1
M 30 × P 3
1
M 24 × P 3
1
17
Jack
15 ton
2
18
Spanner wrenches set
Width: 19 – 50 mm
1
19
Standard tools set
20
Hydraulic oil
SAE10W-CD
60 l
21
Grease
G2-LI
10 l
22
Lubricant
LM-P (09940-00040)
23
Adhesive
1
24
Detergent
20 l
25
Paint remover
For blade center link
For frant hook
For master hook
1
1
5
10
For hydraulic tank
For sealing cab
