Specifications

Item Unit Semi-U tiltdozer Fell U tiltdozer Reinforced Semi-U sigma dozer tiltdozer Fell U tiltdozer

Reinforced sigma dozer + Giant ripper + Multi ripper

Operating weight (without operator) kg 49,850 50,775 (*2) 51,400 (*3) 50,710 (*1) 51,640 52,260

Blade weight (including cylinder) kg 6,750 7,676 8,300 6,750 7,675 8,300

Ripper weight (including cylinder) kg 3,600 4,462

Name of engine — Komatsu SAA6D140E-5 diesel engine Engine horsepower kW/rpm {PS/rpm} 336/2,000 {456/2,000} Overall length mm 9,260 9,595 8,990 8,905 9,245 8,635 Overall height mm 3,990 Overall width mm 4,300 4,615 4,440 4,300 4,615 4,440 Travel speed (1st/2nd/3rd) Forward km/h 3.8/6.7/11.2 Reverse km/h 4.9/8.7/14.9

*1: Semi-U tilt dozer, multi-shank ripper, ROPS, cab, air conditioner *2: U tilt dozer, Giant ripper, ROPS, cab, air conditioner *3: Reinforced sigma dozer, Giant ripper, ROPS, cab, air conditioner

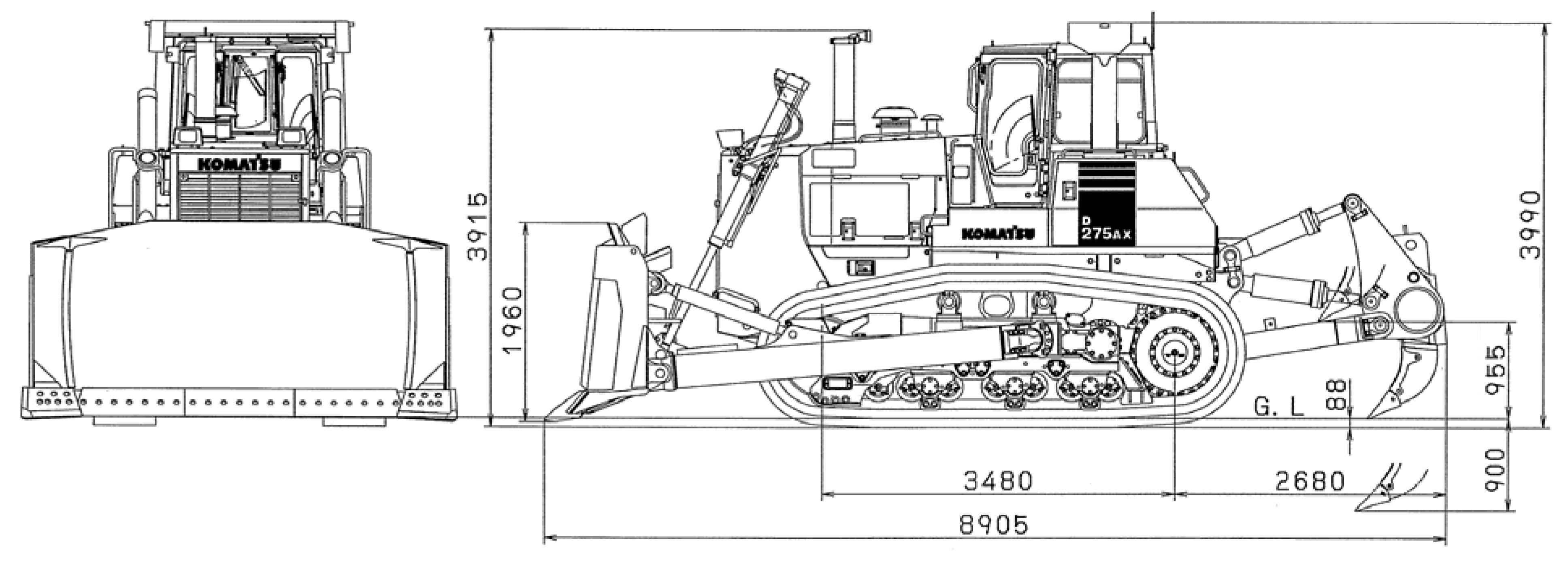

• Semi-U-tiltdozer + variable multi ripper

• Fell U-tiltdozer + variable giant ripper

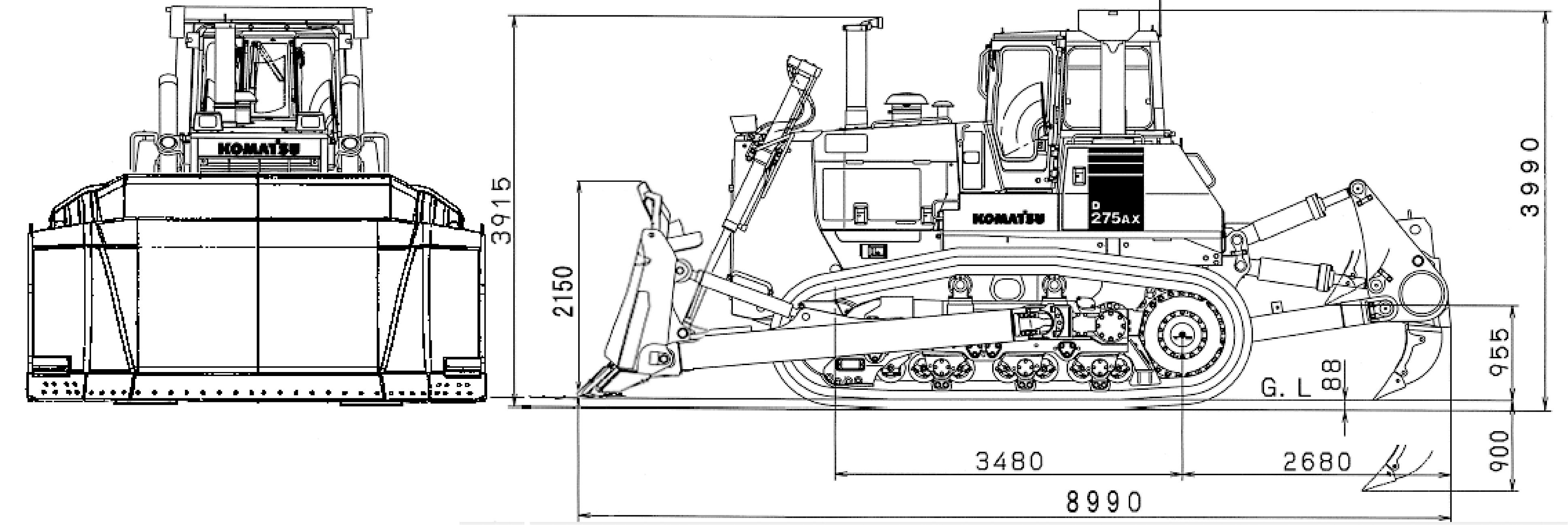

sigma dozer + variable giant ripper
