FootballCannon
Usermanual
1 Contents DescriptionoftheMachine ............................................................................................................................. 3 Shootingrange................................................................................................................................................. 4 Shotaccuracy 5 Usermanual ..................................................................................................................................................... 5 Remotecontrol ................................................................................................................................................ 7 Errormessages 8 GoalStation...................................................................................................................................................... 9 GoalStationApS Gugvej142B 9210AalborgSO Denmark E-mail:support@goalstation.com Phone:+4539394045 www.goalstation.com TechnicalService E-mail:nordland@nordland.dk Phone:+4596312020
2 1 2 3 4 5 6 7 8 9 10 11
1. Rightactuatorforshotstrength.
2. Actuatorforballinlet.
3. Touchdisplayforcontrollingthemachine.
4. Electricalpanel.
5. Leftactuatorforshotstrength.
6. Electromagnetforshootlegs.
7. Shootlegs.
8. Actuatorforup/downposition.
9. Actuatorforthesidewaysposition.
10.Ballinlethole.

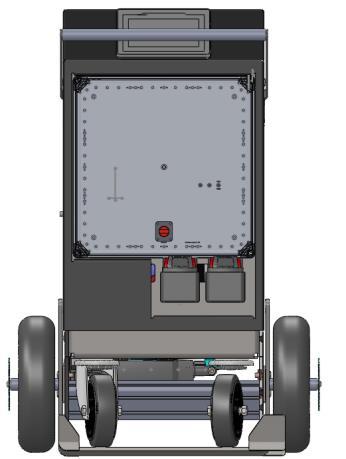

12 3 13 11
11.Supportfoot 12.Tænd/slukkontakt. 13.Battery.

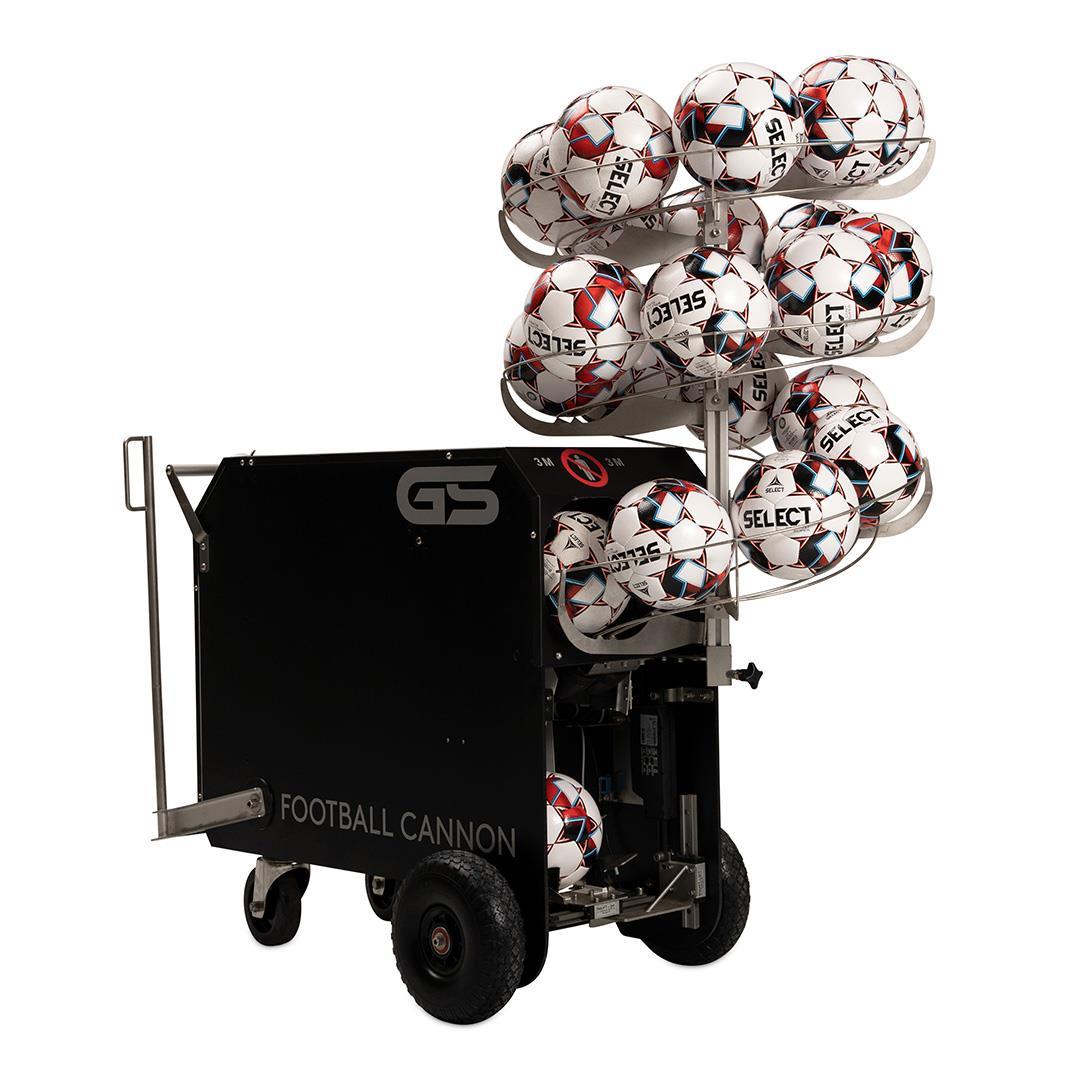

Descriptionofthemachine
Theprincipleofthemachineisthattheactuatorspos.1and6cock/loadthetriggerleg.
Ifashootingmenuisactive,themachinewillletanewballintothemachinebyactivatingthe actuatorpos.3.Anewballwillthenberolledintotheballholder.Aphotocelldetectstheball, anditisnowpossibletopressthe"Load"buttononthescreen.
Thedirectionoftheballcanbeadjustedintwoplanes,verticallyandhorizontally.
Theballwillshootstraightoutofthemachineiftheverticalpositionisinthemiddle.Ifthe variableischangedtotheouterfieldtotheleft,theballwillbekickedoutofthemachine withafullscrewtotheleft.Ifthevariableischangedtotheouterfieldtotheright,theballis firedwithafullscrewtotheright.
Thehorizontalpositioncanbeadjustedfrom0-100viathebarontheleftside.At0theball willbelaunchedalongthegroundandat100theballwillbelaunchedashighaspossible.
Thepowerofthekickcanalsobeadjustedviathefields,wherethegreenestfieldisminimum speedandthetopredismaximumspeed.Whentheshotstrengthisabovetheyellowfields, theoperatormustbeverycarefulwhenfiringtheball,astheballwillbeshotoffatavery highspeed.Thesethreevariablesareusedtosetashot:shotstrength,up/downposition,and asidewaysposition.
3
Shootingrange
4

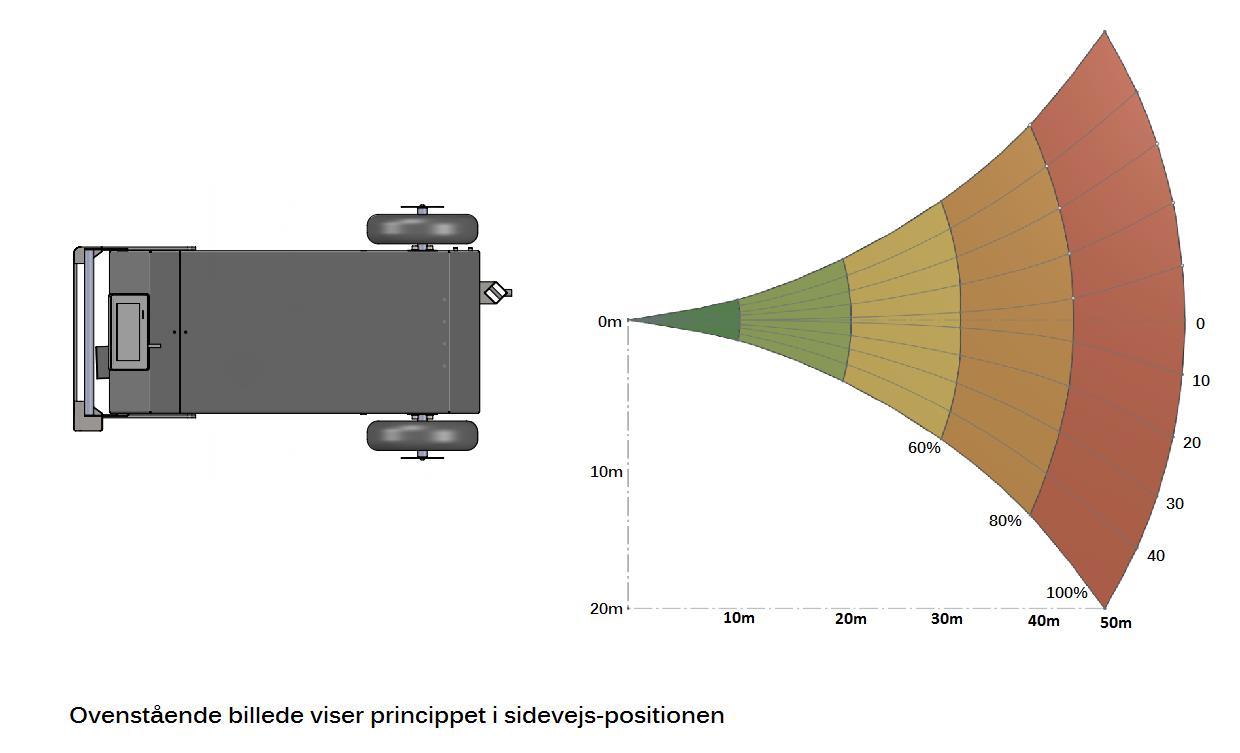

The above picture shows the principle in the sideways position.

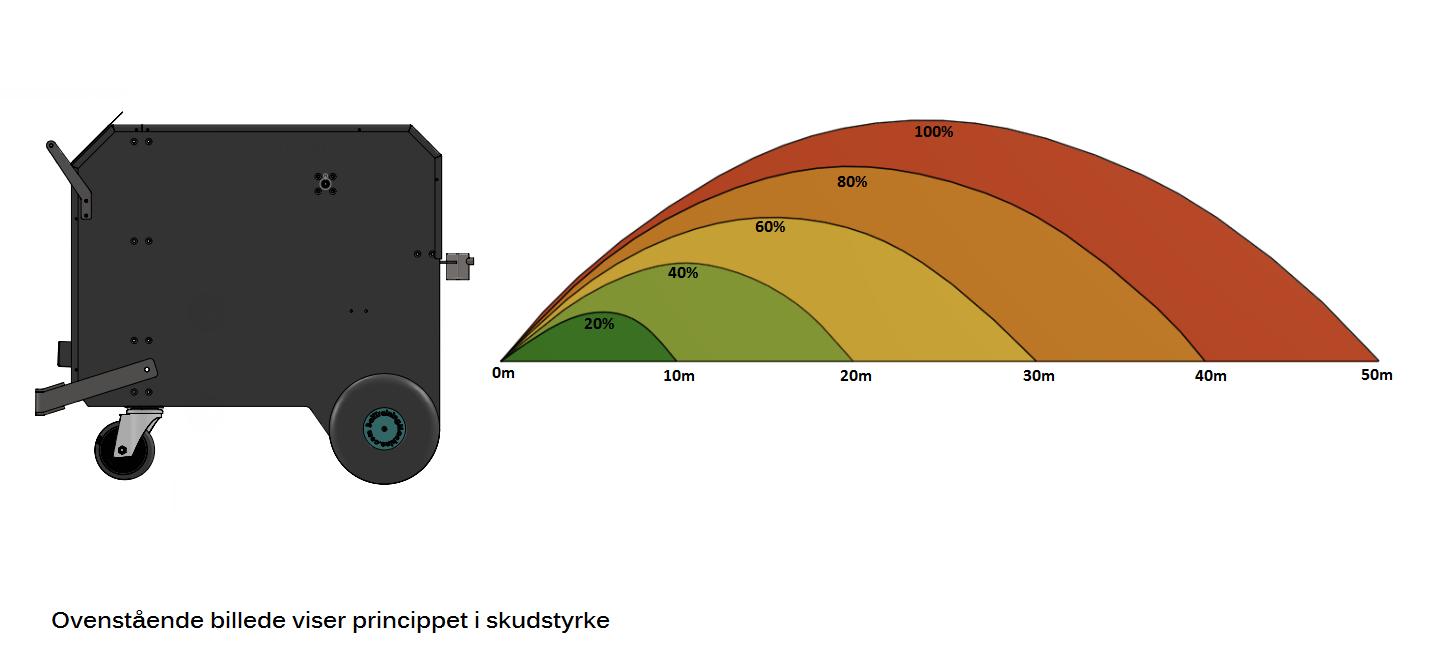

The above picture shows the principle in power of shoot
Shotaccuracy.
Thefollowingpointsareimportanttoachievehighprecisionontheshots.
- Theairpressureintheballsmustbethesame.Iftheairpressureintheballsisdifferent,theshotsmaydeviate.
- Thesametypeofballshouldbeusedforhighprecision.Hereitisalsoimportantthat theyarewornequally.
- Weatherconditionscanalsoaffecttheperformanceoftheshoot.
Usermanual
FootballCanoniscontrolledfromthetouchpanel.Thesoccercannonwillturnonandonceit hasbootedup,thehomescreenwillappear.
Tocontinue,itisacceptedthatthefootballcannonisonlyusedbyinstructedpersonnel. Pressingacceptwilldisplaythemainmenu.
5

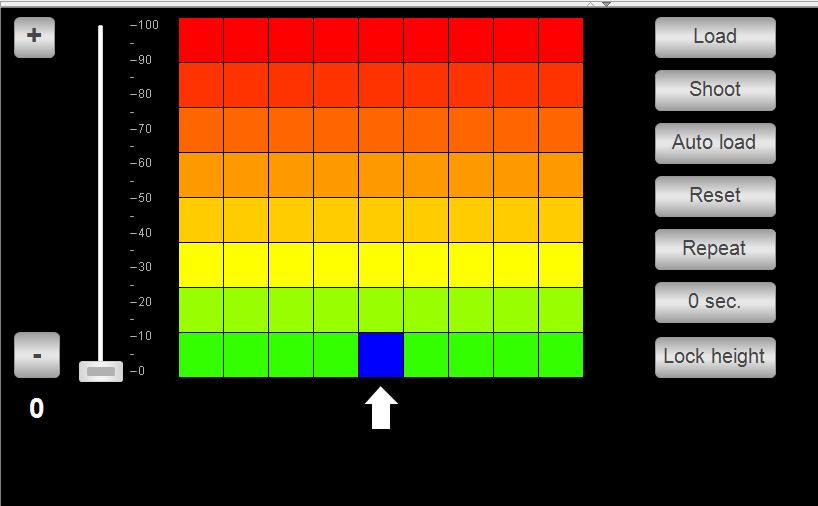

Theshootingareaisdividedinto72areas,eachwithitsownpresetshotstrengthandscrew ontheshot.
TheheightoftheshotisadjustedontheScrollbarontheleftsideofthescreen.
(Tip!Themachineissetbythearrow.Thefurtherupintheredfieldsthatareselected,the hardertheshotstrength,whilethescrewontheinlayisselectedbyselectingouttothesides)
Thedesiredshotisselected,andtheheightisadjusted,afterwhichitispossibletoloadand fireexactlyaspreviouslydescribed.
Inthismenu,thefollowingfunctionsarealsopossible:
- Load
Themachineloadswithaball.
- Shoot Themachineexecutestheshot.
- Autoload
Themachineischargedimmediatelyaftercompletionofthelastshot.
- Reset Themachineisreset.
- Repeat Themachineexecutesthesameshotagain.
- 0sec. Repeatpace
- Lockheight theshootingheightislocked
6

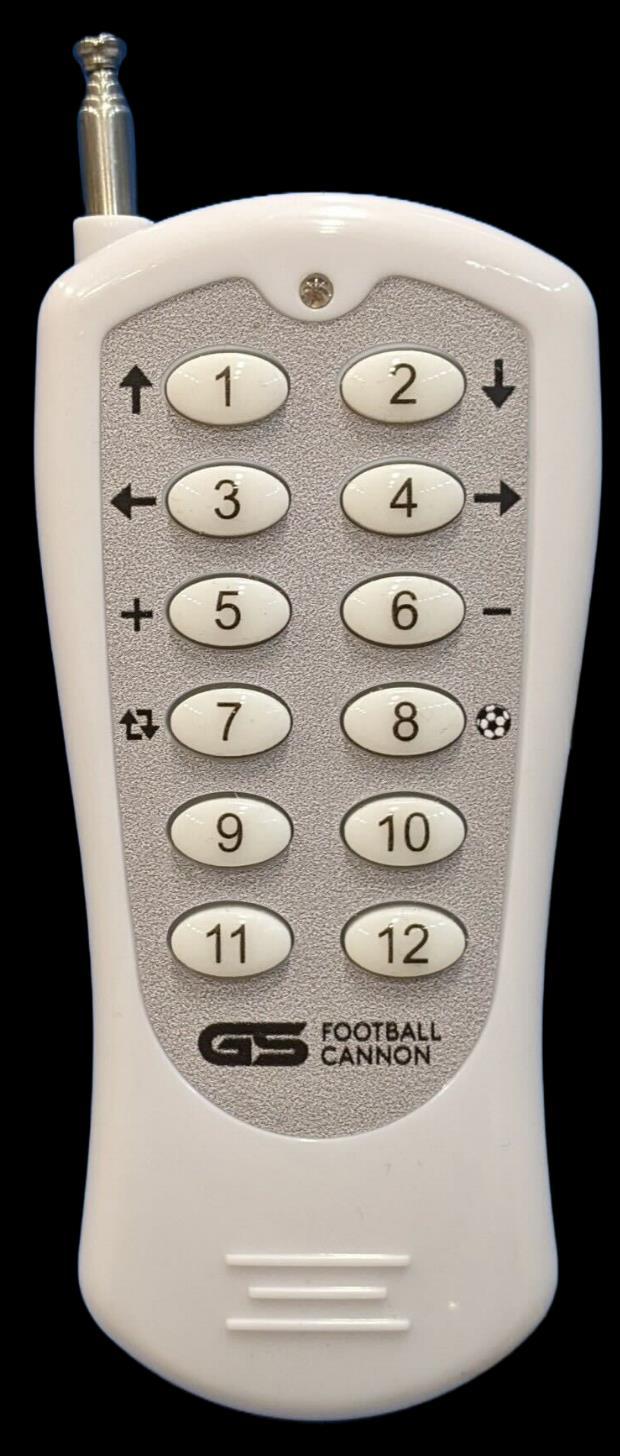

Remotecontrol
Buttons1and2areusedtodeterminetheshotstrength.
Can1increasesthefirepowerand button2reducesthefirepower.
Buttons5and6areusedtoadjustshotheight.Button5increasestheheightandbutton6 decreasestheheight.
Buttons9-12
Notinuse.
Buttons3and4areusedto determinewhetherthere isshottotherightorleft.
Button7isusedforcharging the Footballcannonandbutton8 areusedtolaunchtheball.
Ifyouwanttoundotheselected setting,theFootballCannonresetseverythingbypressingbuttonXX.
TheremotecontrolfollowsthegraphicsfortheShotarea,soifyouwanttheshottogotwo spacestotheright,pressbutton4twice.
Theprincipleoftheremotecontrolis:settheshot,loadandshoot.
Themachineremembersthelastshot,soyoujustmustadjustaccordingtothemostrecent shot,sotomakethenextshotgoalittlehigher,pressbutton5.
7
Errormessages
Error
Severity Definition
1 Serious Thefuseforthefeedactuatorhasblown.Makesurethedanger zoneinfrontofthemachineisclearandswitchoffthemachine. PleasecontactTechnicalService.
2 Serious Nosignalfromactuator.PleasecontactTechnicalService.
3 Alarm Thefuseforthelateralactuatorhasblown.Makesurethedanger zoneinfrontofthemachineisclearandswitchoffthemachine. PleasecontactTechnicalService.
4 Alarm Thefusefortheinletactuatorhasblown.Makesurethedanger zoneinfrontofthemachineisclearandswitchoffthemachine. PleasecontactTechnicalService.
5 Alarm Thefusefortheup/downactuatorhasblown.Makesurethedanger zoneinfrontofthemachineisclearandswitchoffthemachine. PleasecontactTechnicalService.
6 Alarm Noclearsignalfromthelateralactuator.Actuatorsareoverloaded, pleaseturnoffthemachinefor15minandtryagain.Iftheerroroccursrepeatedly,pleasecontactTechnicalService.
7 Alarm Noclearsignalfromtheup/downactuator.Theactuatorisoverloaded,pleaseturnoffthemachinefor15minandtryagain.Ifthe erroroccursrepeatedly,pleasecontactTechnicalService.
8 Warning Thebatterylevelislow. Makesurethedangerzoneinfrontofthemachineisclear,switch offthemachineandsetthebatterytocharge.
9 Warning Theinletisblocked.Makesuretokeeptheinletfree.Unloadthe machineandremovetheballsfromthemachine.
8
GoalStation

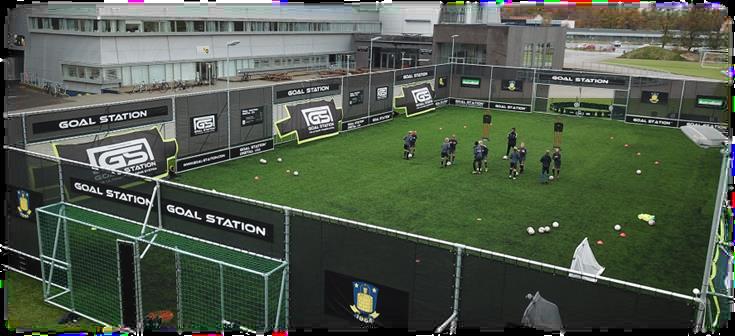

FootballCannonisapartoftheGoalStationfamily.
