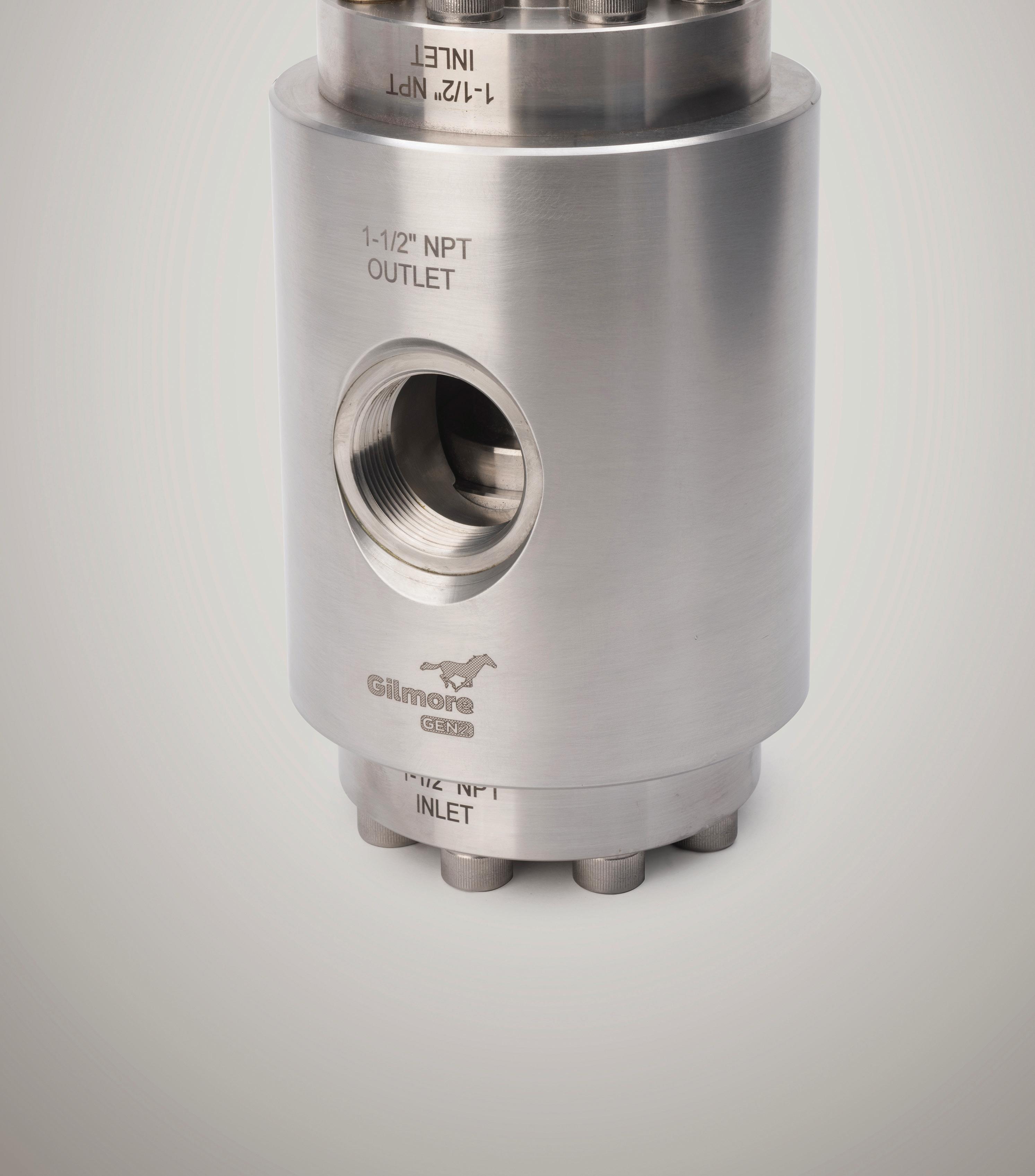

Gilmore V-Seal Shuttle Valve
Improving subsea corrosion resistance and extending cycle life through new technology.
The GEN2 V-Seal Shuttle Valve design exceeds new offshore industry requirements. An increase in cycle life was proven through extreme testing to meet the demand of 5 year service life under normal operating conditions. This valve replaces the legacy shuttle valves in your existing equipment as they have the same footprint and do not require re-piping
Significant engineering enhancements
• New V-seal and hydraulic damping technology prevent seal failure and improve cycle life
• Corrosion resistant material selection throughout for subsea applications including Nitronic 60 shuttle, sleeves, and caps.
Gilmore V-Seal Shuttle Valve
Benefits
Exceeds API 16D test requirements
Qualified multiple valves to 2500 cycles at maximum flow conditions
Order of magnitude reliability improvement
Designed and tested to meet the demands of 5 years of maintenance free service under normal operating conditions
Effortless retrofits
Identical footprint of the legacy Gilmore shuttle valves
Extended Life Cycle
Dynamic V-Seal does not feather or extrude
Robust flange containment
A-286 cap screws with Nord-Lock® washers
Corrosion resistant materials
Suitable for long term subsea applications
Available Configurations
3/4”, 1” and 1-1/2“ in low or high interflow configurations with customizable end connections and mounting
*Patent Pending

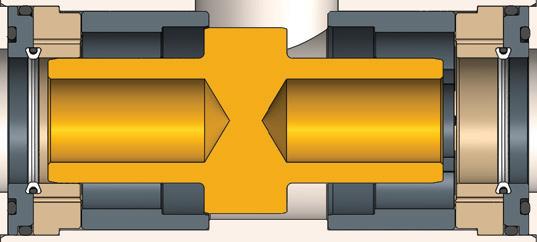

Damping Stage 3

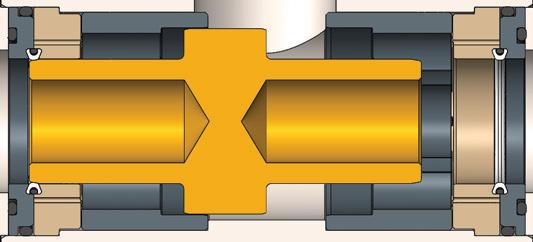

Damping Stage 2

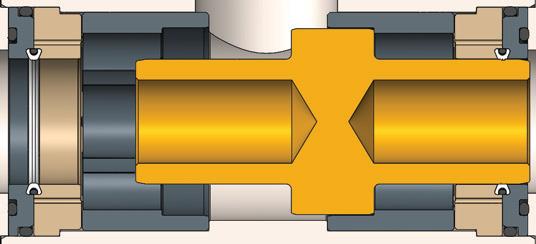

Damping Stage 1
At end of shift volume change between shuttle and 2nd cage further reduces shuttle velocity as V-Seal is energized
Near end of shift volume change between shuttle and 2nd cage reduces shuttle velocity prior to engaging V-Seal
At beginning of shift volume change between shuttle and 1st cage reduces shuttle velocity
Nitronic® shuttle, cages, and guides prevent galling during shuttle transition
Proprietary Dynamic V-seal technology extends seal retention
A-286 cap screws with Nord-Lock® washers for better flange security

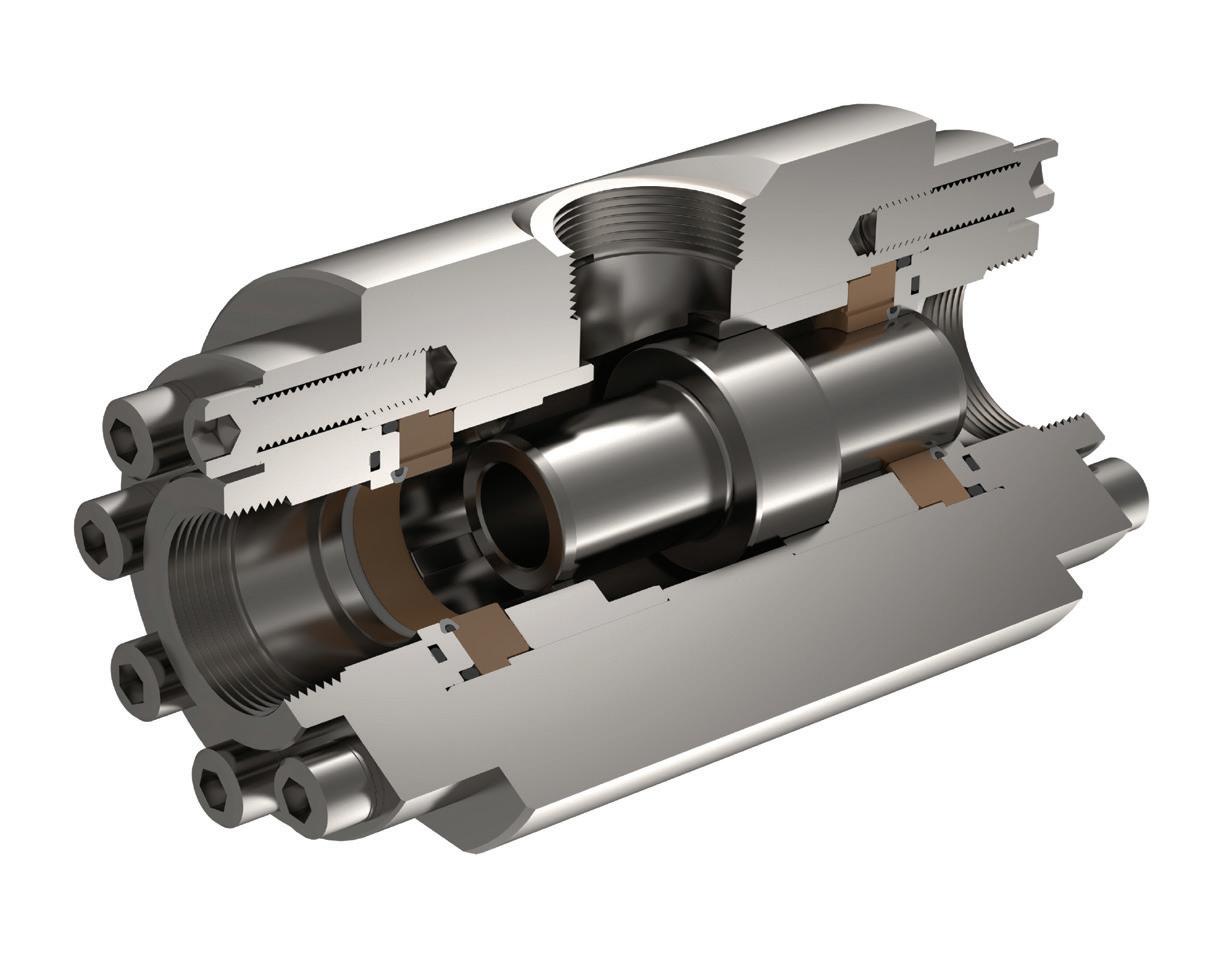

Assembly 1-1/2” Cutaway
