Gilmore Variable Pilot Valve (Sequence Valve)
Provides control systems with extremely accurate and adjustable pilot sequencing.
Gilmore’s 1/4” GEN2 Variable Pilot Valves allow for incredibly precise sequential shifting for a group of hydraulic control valves, with the ability of varying pilot set pressures to rapidly pilot control systems.
Significant engineering enhancements
• Extrusion proof Tungsten Carbide seal trim design
• Corrosion resistant spring housing materials
• Integral adjustment stop to prevent spring compression set
• Very low dead-band operation
• Provisions added for easy panel mounting

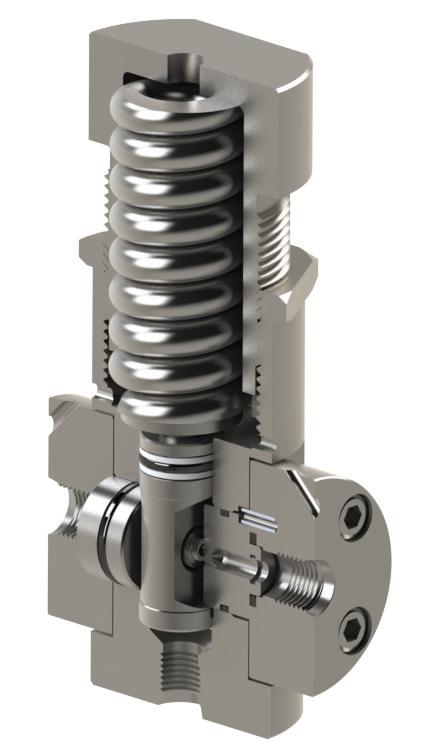

Gilmore Variable Pilot Valve (Sequence Valve)
Corrosion resistant
Inconel X-750 spring material upgrade
Features and Benefits
Qualification exceeds API 16D requirements
Variable Pilot Valve
Stop ring upgrade to adjustable spring cap
Two separate full flow endurance tests to 2500 cycles
Improved Materials:
Extrusion proof Tungsten Carbide seal trim design
Inconel X-750 spring materials
Nitronic 60 spring housing with integral adjustment stop A286 Gr 660 fasteners
316 SS body and flanges
HNBR elastomers with double backup rings
Low deadband operation
Wire tag provided for set point security
Provision for panel mounting
Drop-in replacement to the legacy offering
Ability to be field repairable
Available configurations:
1/4” NPT, 1/4” SAE, 1/4” SAE x 1/2” SAE
Normally Closed and Normally Open Options
Set Points: 800-1600 psi & 1600-3300 psi
Separate pilot option available
High Drag option available
GEN2

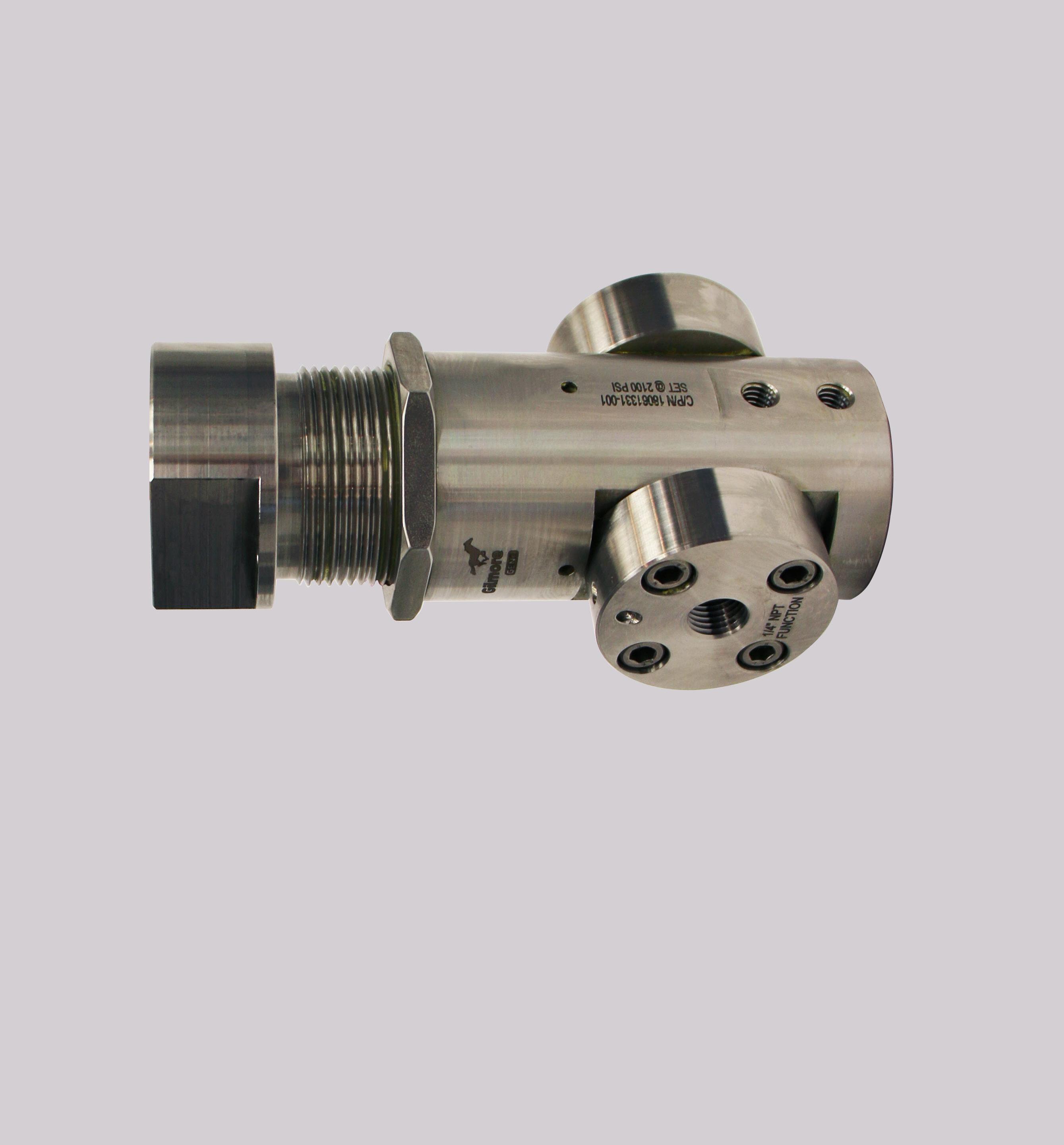

Gilmore 1/4” SAE GEN2 Variable Pilot Valve with Separate Pilot

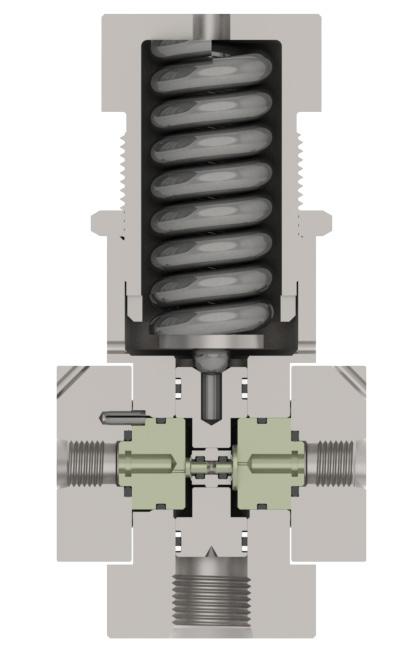

Tungsten Carbide Seal Trim
