Gilmore Quick Dump Valve

Provides control systems means for quick actuation by redirecting fluid path restrictions.

Gilmore’s line of 1/2” GEN2 Quick Dump Valves enable quick dumping of a cylinder, pilot or circuit function volume in subsea control systems such as a subsea riser connector.

Significant engineering enhancements

• Self centering seat eliminates the need to coin the valve

• Nitronic 60 material upgrade

• New seat allows field repair

• Same footprint as the legacy Gilmore 1/2” Quick Dump Valve

• Passivation of all metal items

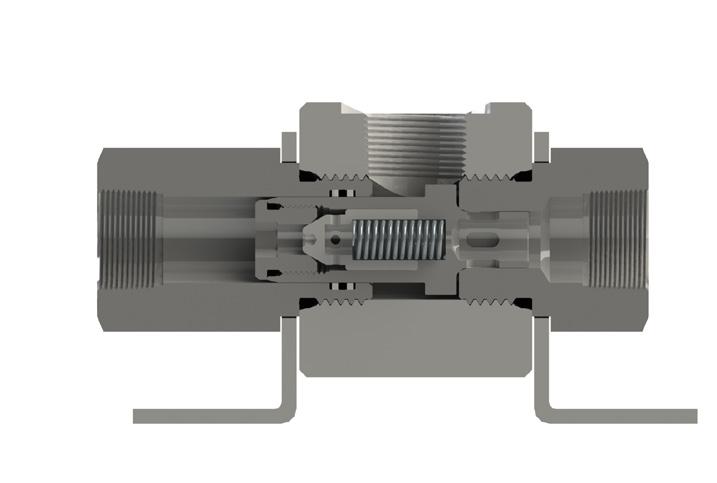

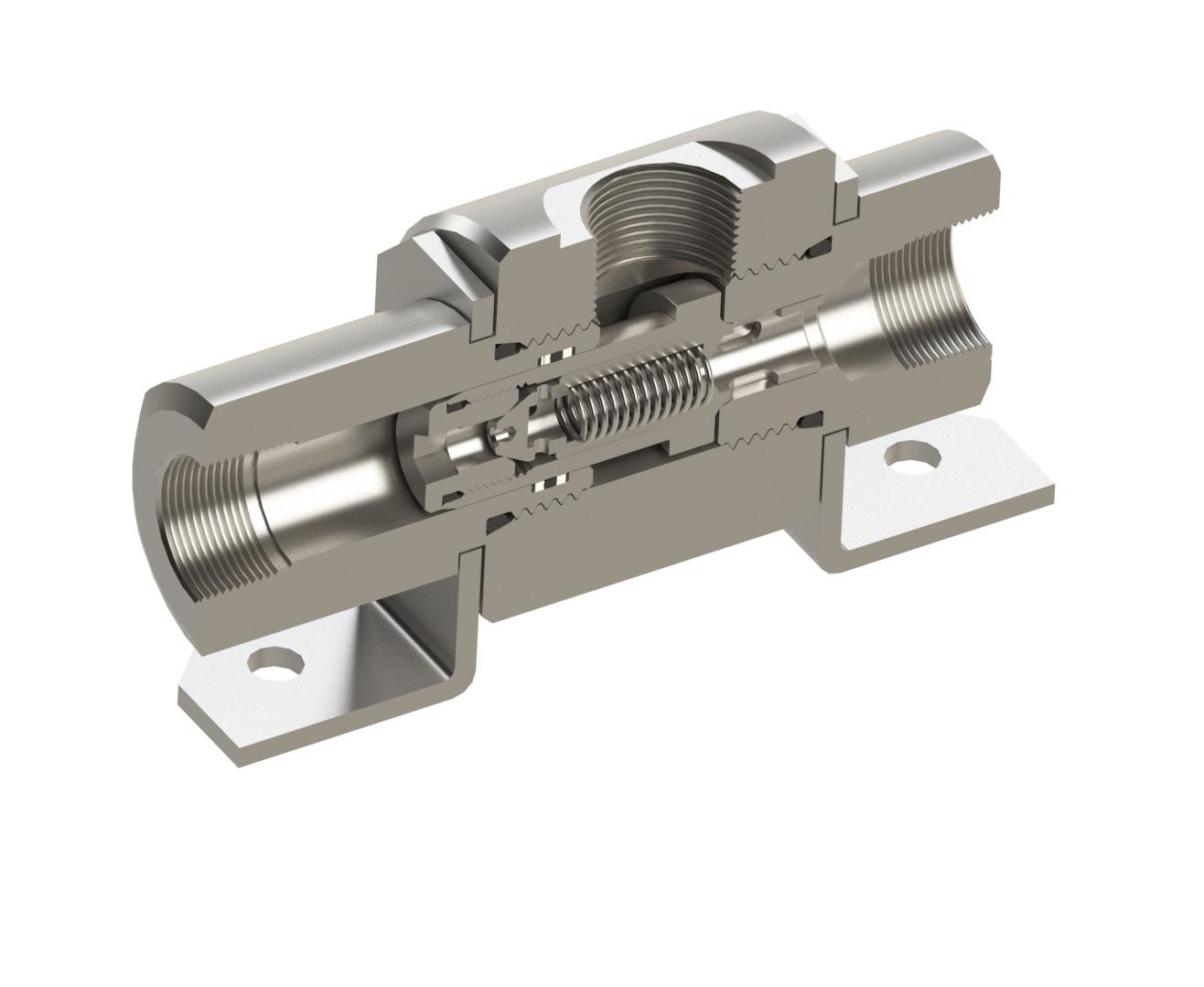

Quick Dump Valve

Nitronic 60 spool

Self-centering metal seat

Repairable

The valve shifts to vent position when the supply pressure is less than half the function pressure.

Features and Benefits

Qualification exceeds API 16D requirements

2500 endurance cycles on two valves

Improved Materials:

Nitronic 60 spool with self-centering metal seat geometry

Nitronic 60 Poppet

Nitronic 60 Seat with O-Ring seal for field repair

Max Flow:

20 GPM forward

40 GPM reverse

Function Ratio: <1:2

Available configurations: 1/2” NPT, 1/2” SAE

NPT or SAE options
Swivel mount brackets
GEN2 Quick Dump Valve
