Traversa

A DIFFERENT IDEA OF FURNITURE CROSSBAR

ASSEMBLING

FORMENTI & GIOVENZANA PROVIDES FUNCTIONAL SOLUTIONS FOR FURNITURE TO MEET THE REAL NEEDS OF A LARGE NUMBER OF CUSTOMERS.

All products are conceived and supplied with care and quality and are offered to the market at a competitive price. In this way, Formenti & Giovenzana contributes globally to increase the satisfaction of the customers buying furniture, giving access to pleasing features and improving the quality of life of the consumers.

Traversa

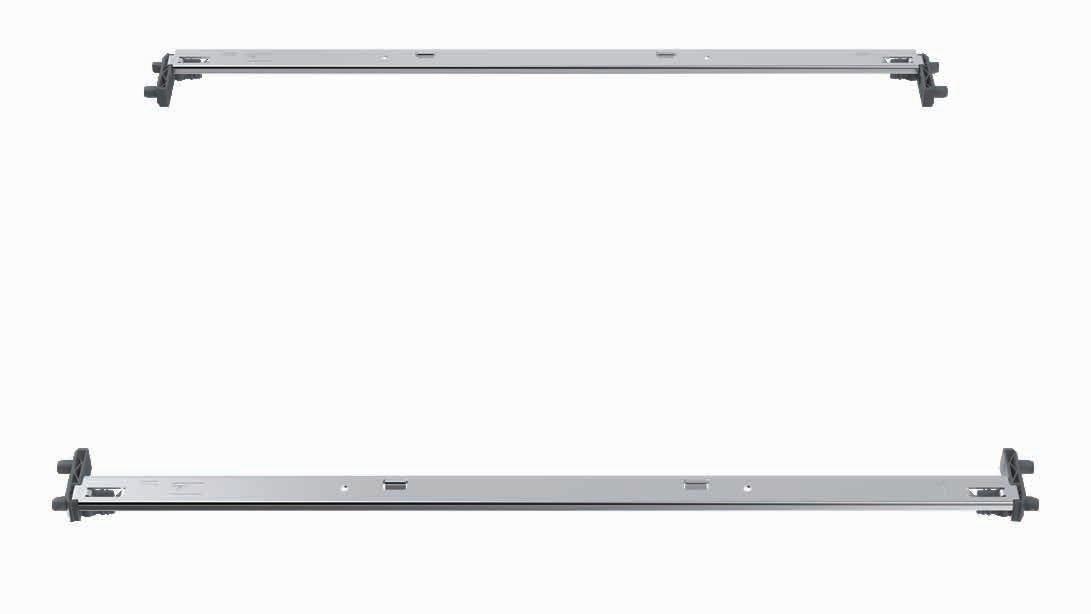

METAL CROSSBAR FOR BASE

CABINET FROM 150 TO 1200 MM, WITH SIDE PANELS THICKNESS

FROM 16 TO 20 MM AND BACK PANELS THICKNESS

FROM 2 TO 4 MM.

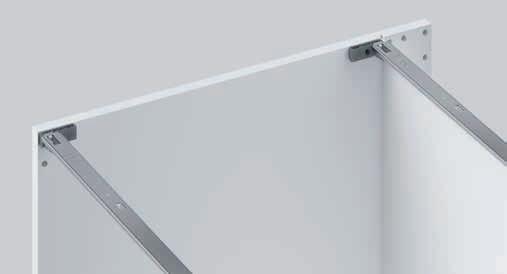

The metal crossbar developed and marketed by FGV allows a full range of applications thanks to a complete fixing program with screws, NoTool or expanding dowels and both horizontal and vertical possible configurations. The high quality materials and the easy assembly processes guarantee great comfort and safety in use.

Reasons to choose Traversa

A COMPLETE AND SMART RANGE OF SOLUTIONS

From 150 to 1200 mm cabinet widths, for 16/18/19/20 mm cabinet panel thickness and from 2 to 4 mm cabinet back panel thickness, the FGV metal crossbar is the ideal and reliable solution for an easy cabinet assembling.

For base cabinet from 150 to 1200 mm

INCENTIVE TO SUSTAINABILITY

The metal crossbar is an incentive to apply sustainability solutions that save wood and chipboard in furniture assembly processes.

VERSATILE APPLICATION

The metal crossbar allows a full range of applications thanks to a complete choice of fixing systems with screws, NoTools or expanding dowels and a mix of both horizontal and vertical possible configurations.

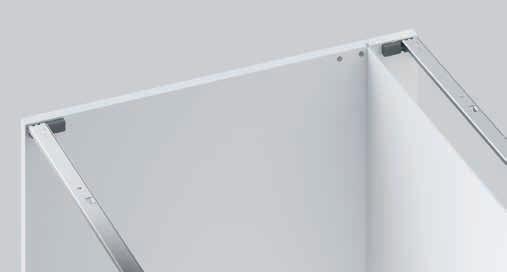

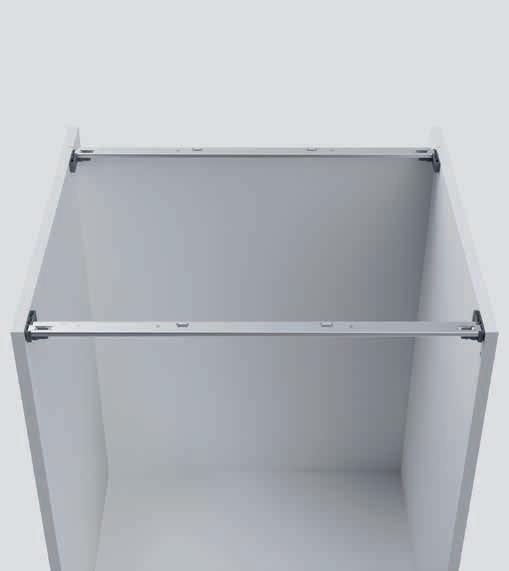

The metal crossbar is an important fitting element to increase cabinet stability. For a quick and easy assembling the components required for each cabinet are only two crossbars and 4 NoTool plates.

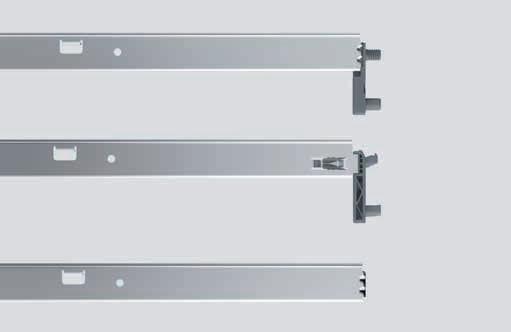

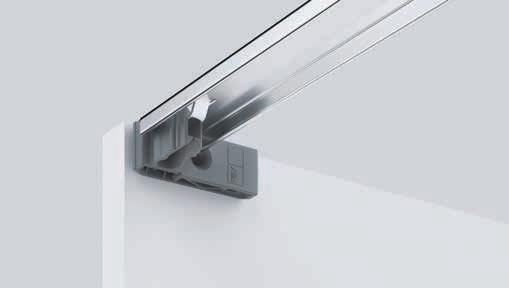

NoTool Fixing

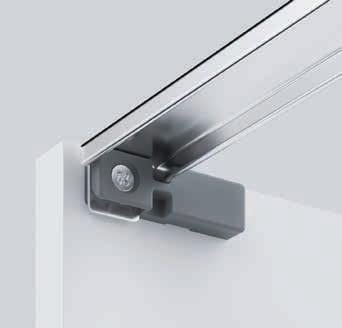

Dowels Fixing

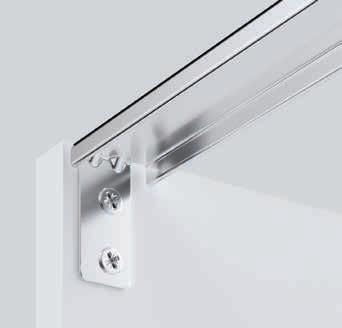

Screws Fixing

Traversa

Complete choice of fixing systems with screws, NoTools or expanding dowels

For base cabinet from 150 to 1200 mm

With side panels thickness from 16 to 20 mm

PERFORMANCE

Incentive to sustainability Increasing cabinet stability

CONCEALED TECHNOLOGY

Furniture hardware needs to accomplish its function with discretion and efficiency and the crossbar is a valid example of simple technology undermount a cabinet to ensure high stability in complete discretion.

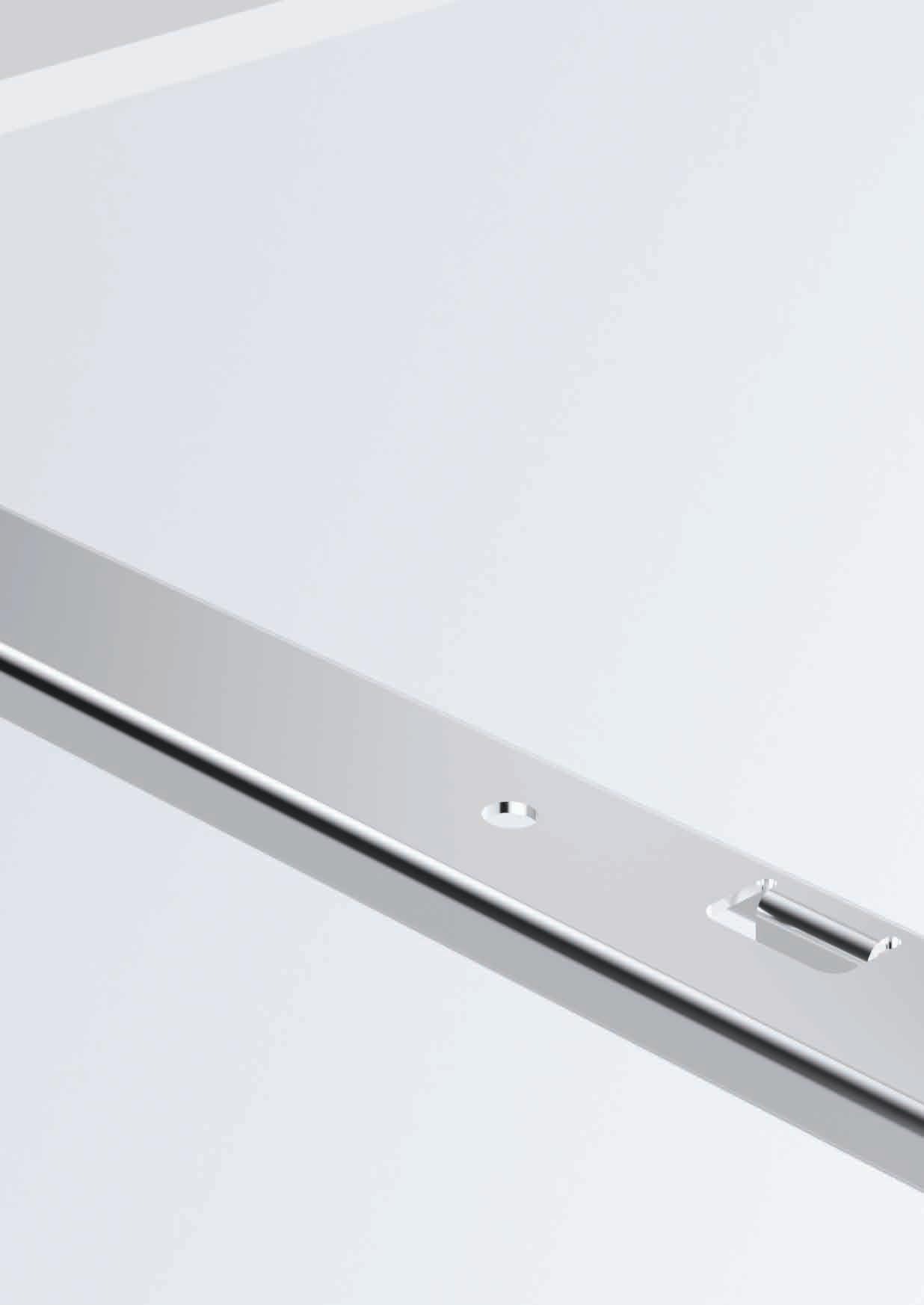

QUALITY AT ITS BEST

High quality materials for bars and components and constant care for every aspect. Increased resistance and stability together with quick and easy assembling process.

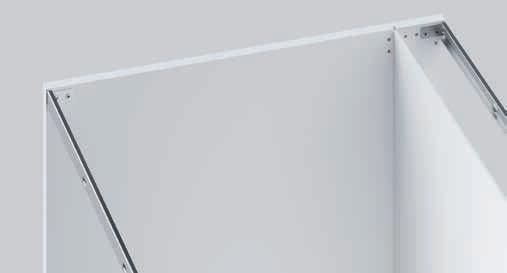

Easy cabinet assembling

Full range of applications

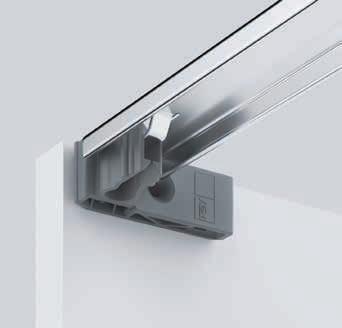

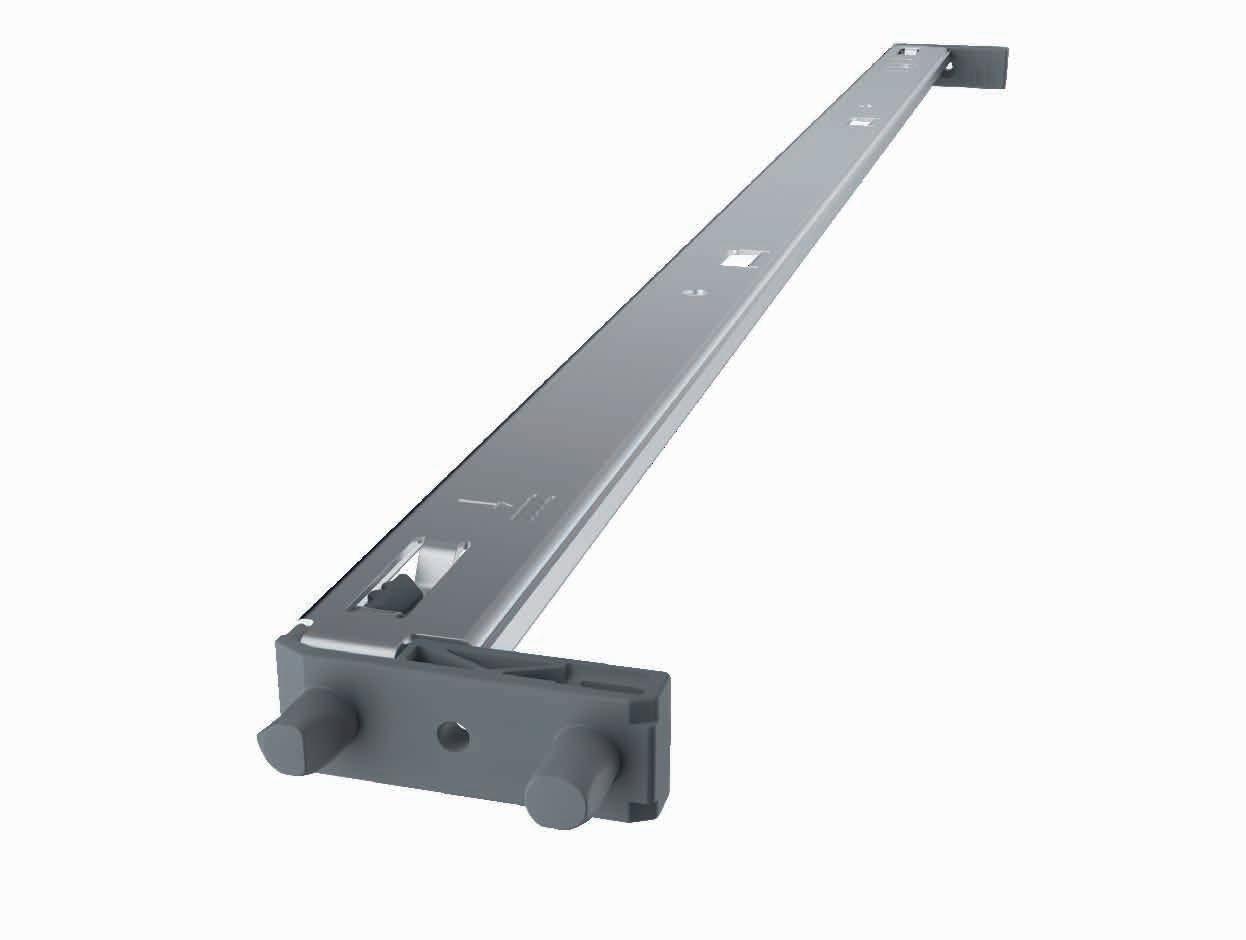

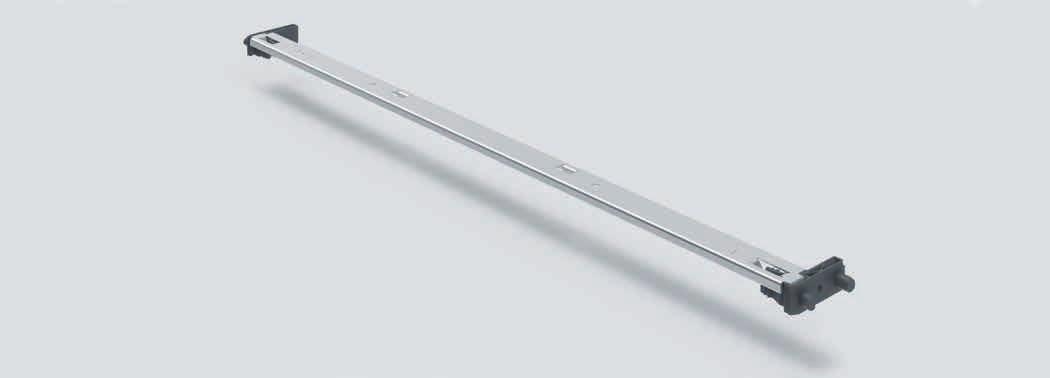

Crossbar NoTool Fixing

Crossbar NoTool Fixing

Technical Specifications:

• Fitting element to increase cabinet stability

• Full range of applications covering all the cabinet configurations: for base cabinet from 150 to 1200 mm for side panels thickness from 16 to 20 mm for back panels thickness from 2 to 4 mm

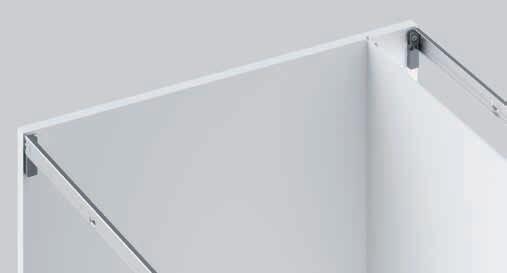

• Smart assembling in horizontal or vertical positioning on cabinet front and rear side

• Fixing program with NoTool dowels for a quick and easy assembling process

• Lasting quality thanks to optimised materials

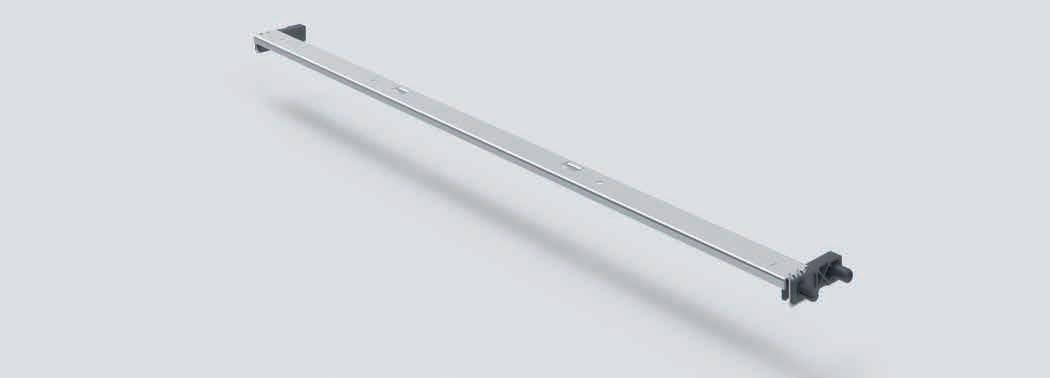

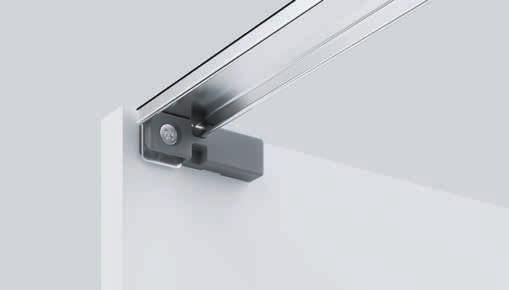

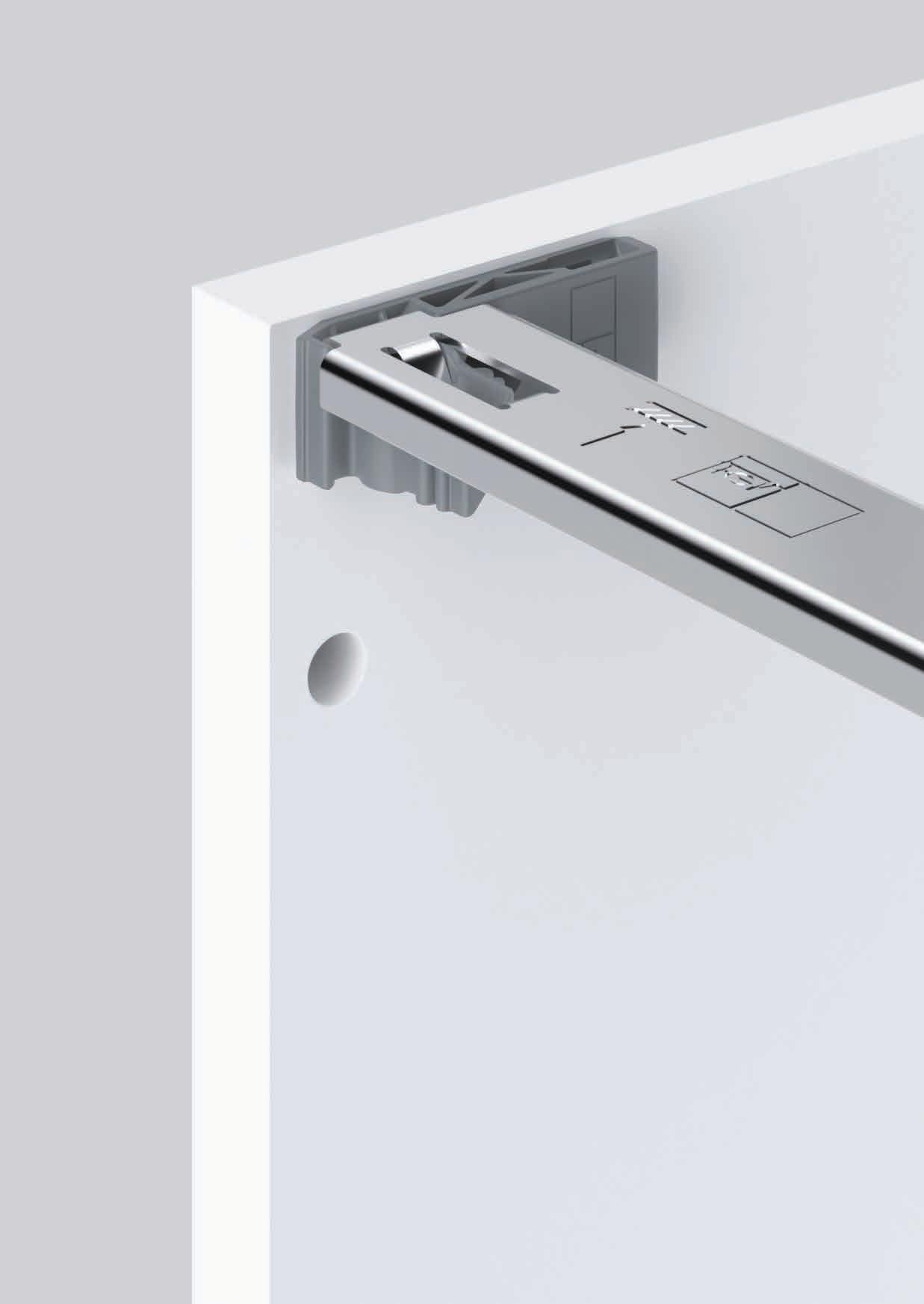

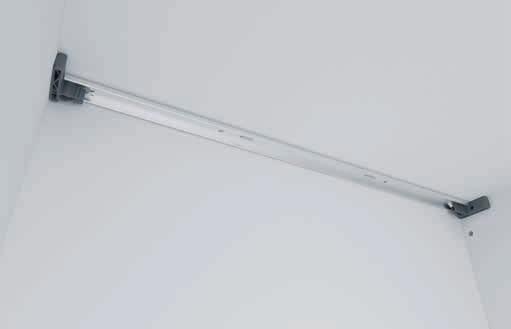

Crossbar Dowels Fixing

Crossbar Dowels Fixing

Technical Specifications:

• Fitting element to increase cabinet stability

• Full range of applications covering all the cabinet configurations: for base cabinet from 150 to 1200 mm for side panels thickness from 16 to 20 mm for back panels thickness from 2 to 4 mm

• Smart assembling in horizontal or vertical positioning on cabinet front and rear side

• Fixing version with expanding dowels for an easy assembly process

• Lasting quality thanks to optimised materials

Code Description

59.CFGD.S8.X5.00000 Dowel connector Ø5+Ø8 in Storm Grey plastic 1000 pcs

59.CFGD.S8.X8.00000 Dowel connector Ø8+Ø8 in Storm Grey plastic 1000 pcs

Code Description

59.CFGD.07.15.**.020 Metal crossbar 150 dowels fixing 2000 pcs

59.CFGD.07.30.**.020 Metal crossbar 300 dowels fixing 2000 pcs

59.CFGD.07.40.**.020 Metal crossbar 400 dowels fixing 1500 pcs

59.CFGD.07.45.**.020 Metal crossbar 450 dowels fixing 1000 pcs

59.CFGD.07.50.**.020 Metal crossbar 500 dowels fixing 1000 pcs

59.CFGD.07.60.**.020 Metal crossbar 600 dowels fixing 1000 pcs

59.CFGD.07.80.**.020 Metal crossbar 800 dowels fixing 750 pcs

59.CFGD.07.90.**.020 Metal crossbar 900 dowels fixing 500 pcs

59.CFGD.07.10.**.020 Metal crossbar 1000 dowels fixing 300 pcs

59.CFGD.07.12.**.020 Metal crossbar 1200 dowels fixing 300 pcs

Values given

mm

Crossbar Dowels Fixing

Vertical application Horizontal application

Values given in mm

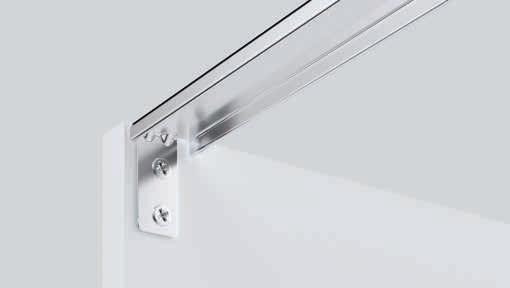

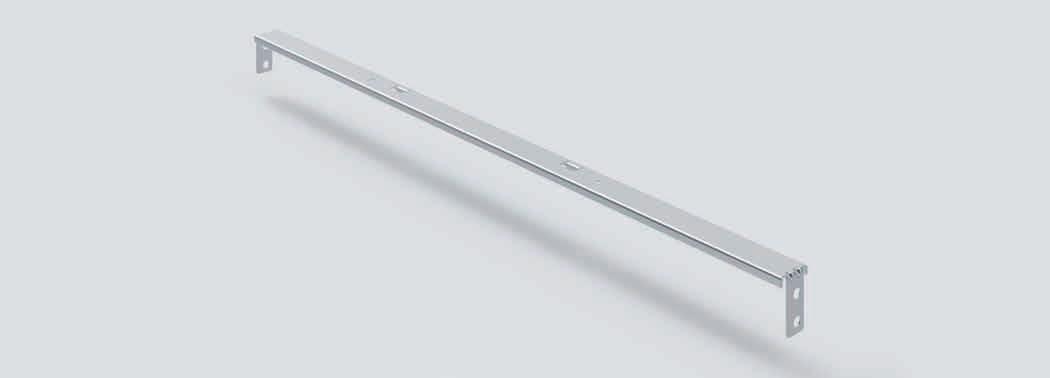

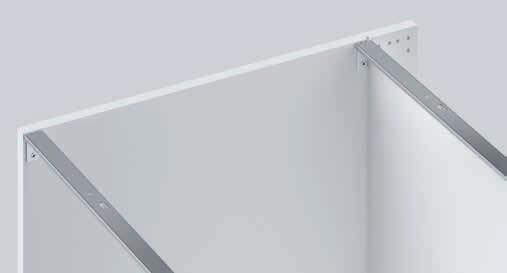

Crossbar Screws Fixing

Crossbar Screws Fixing

Technical Specifications:

• Fitting element to increase cabinet stability

• Full range of applications covering all the cabinet configurations: for base cabinet from 150 to 1200 mm for side panels thickness from 16 to 20 mm for back panels thickness from 2 to 4 mm

• Smart assembling in horizontal or vertical positioning on cabinet front and rear side

• Fixing version with screws for a standard assembly process

• Lasting quality thanks to optimised materials

Code Description Packing

59.CFG0.07.15.**.020

59.CFG0.07.30.**.020

59.CFG0.07.40.**.020

59.CFG0.07.45.**.020

59.CFG0.07.50.**.020

59.CFG0.07.60.**.020

59.CFG0.07.80.**.020

59.CFG0.07.90.**.020

59.CFG0.07.10.**.020

59.CFG0.07.12.**.020

** panel thickness: 16/18/19/20

Metal crossbar 150 screws fixing 2000 pcs

Metal crossbar 300 screws fixing 2000 pcs

Metal crossbar 400 screws fixing 1500 pcs

Metal crossbar 450 screws fixing 1000 pcs

Metal crossbar 500 screws fixing 1000 pcs

Metal crossbar 600 screws fixing 1000 pcs

Metal crossbar 800 screws fixing 750 pcs

Metal crossbar 900 screws fixing 500 pcs

Metal crossbar 1000 screws fixing 500 pcs

Metal crossbar 1200 screws fixing 300 pcs

Vertical application

Horizontal application

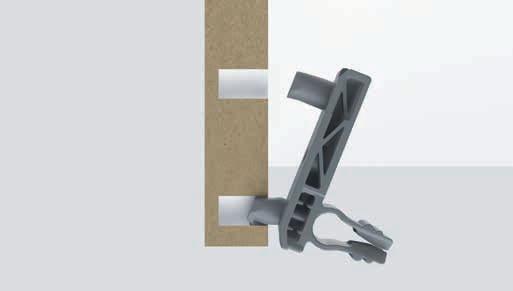

NoTool fixing

Safety central fixing for cabinet width from 800 to 1200 mm

Dowels fixing

Safety central fixing for cabinet width from 800 to 1200 mm

Values given in mm

Screws Fixing

Euro Screws Fixing
