FGV PROVIDES FUNCTIONAL SOLUTIONS FOR FURNITURE TO MEET THE REAL NEEDS OF A LARGE NUMBER OF CUSTOMERS.
All products are conceived and supplied with care and quality and are offered to the market at a competitive price. In this way, FGV contributes globally to increase the satisfaction of the customers buying furniture, giving access to pleasing features and improving the quality of life of the consumers.

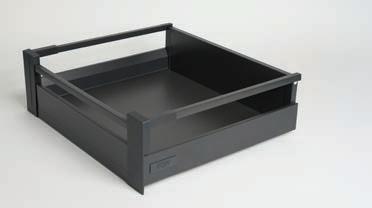

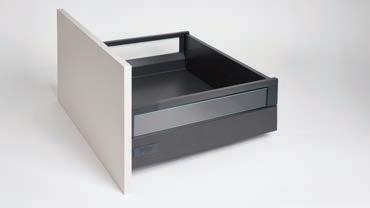

CERVINO DRAWER
EVERYDAY ESSENTIAL

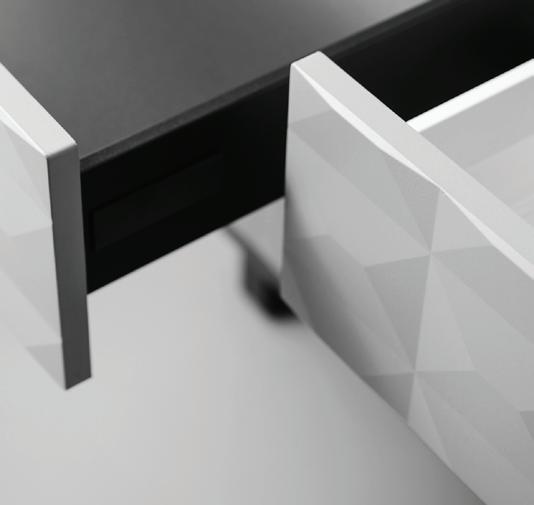

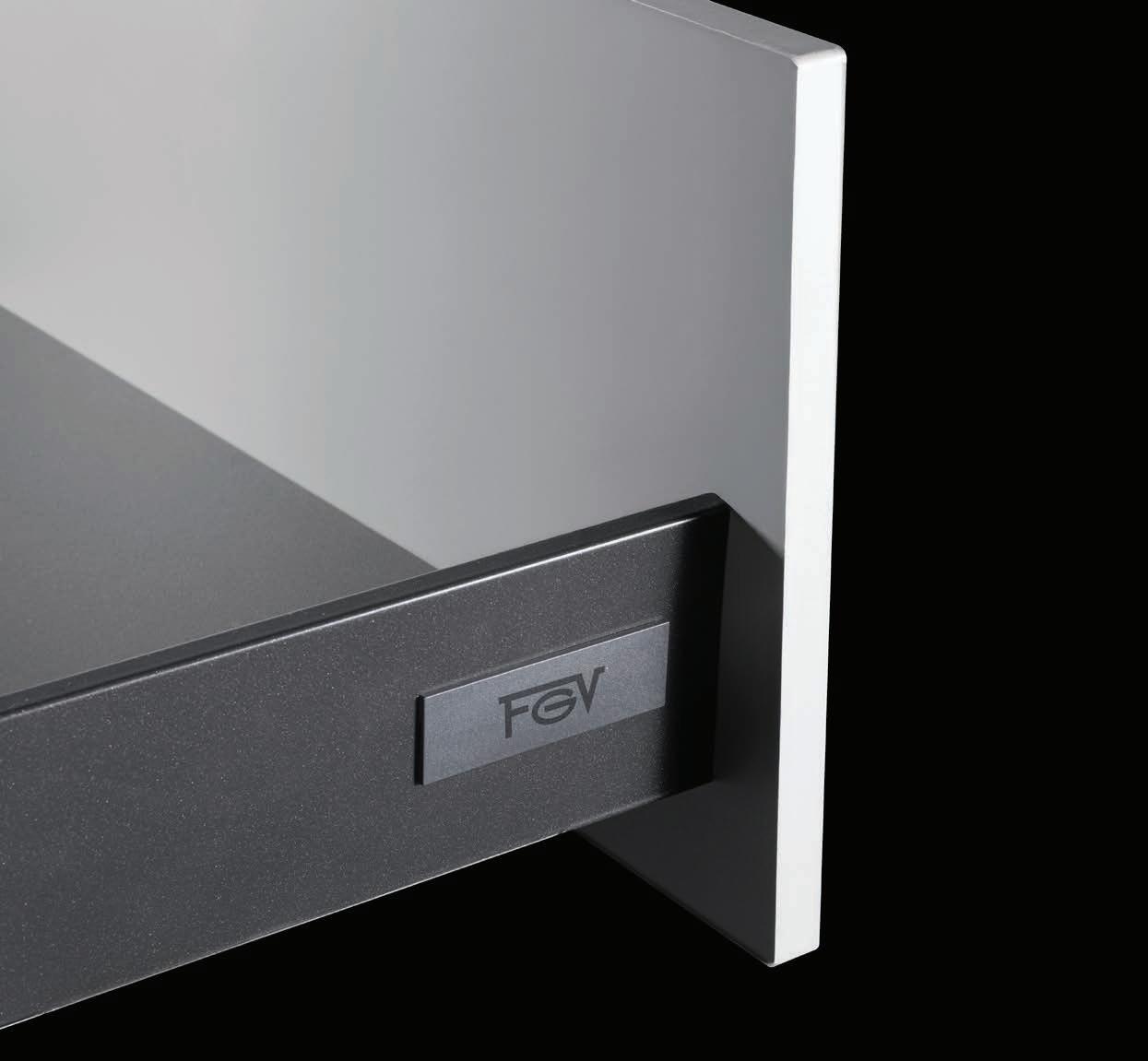

FGV's new Cervino Drawer, with its modern and striking design, immediately catches the eye.
Its squared profiles, available in various finishes, along with a range of accessories, provide extensive possibilities for customisation and configuration, meeting every aesthetic and functional requirement.
WITH DISTINCTION AND COMFORT

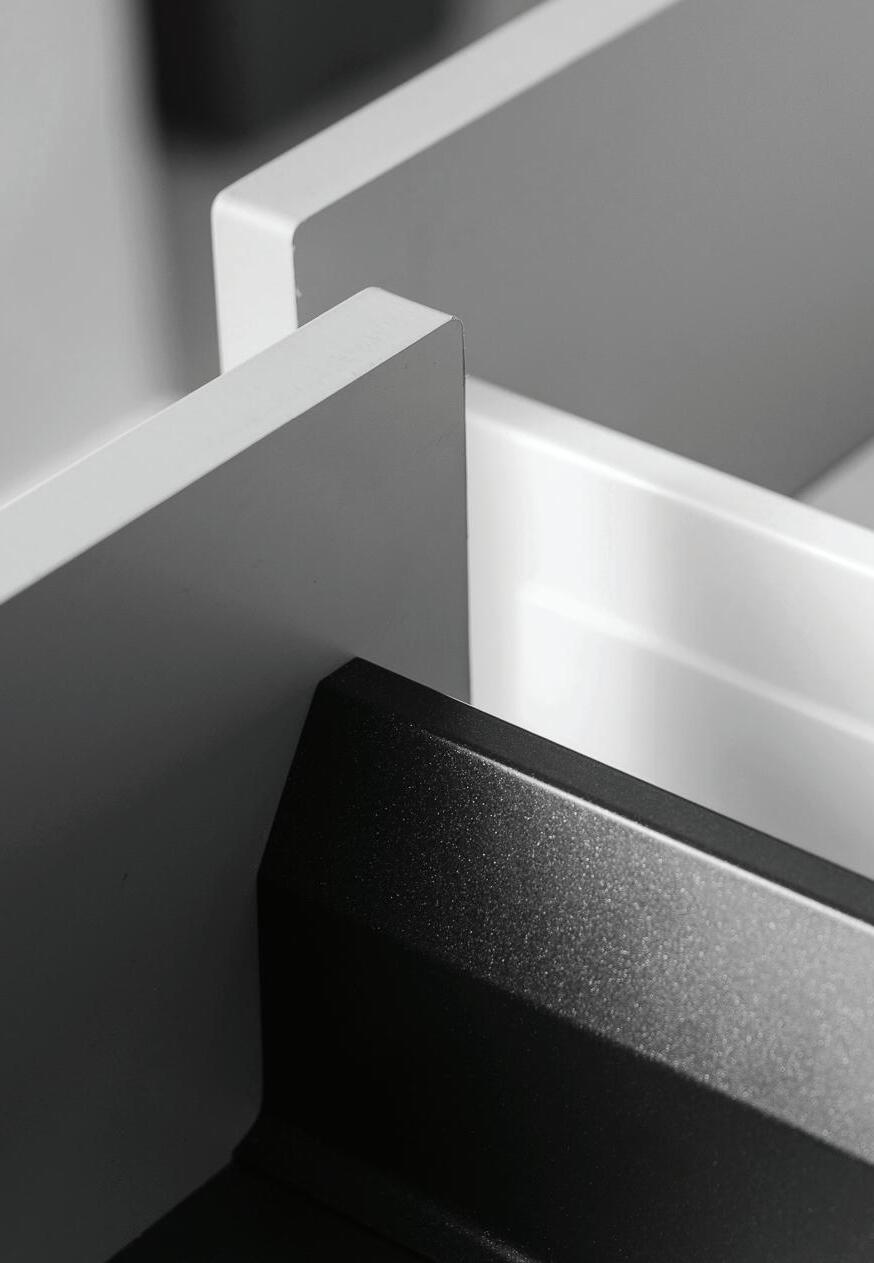

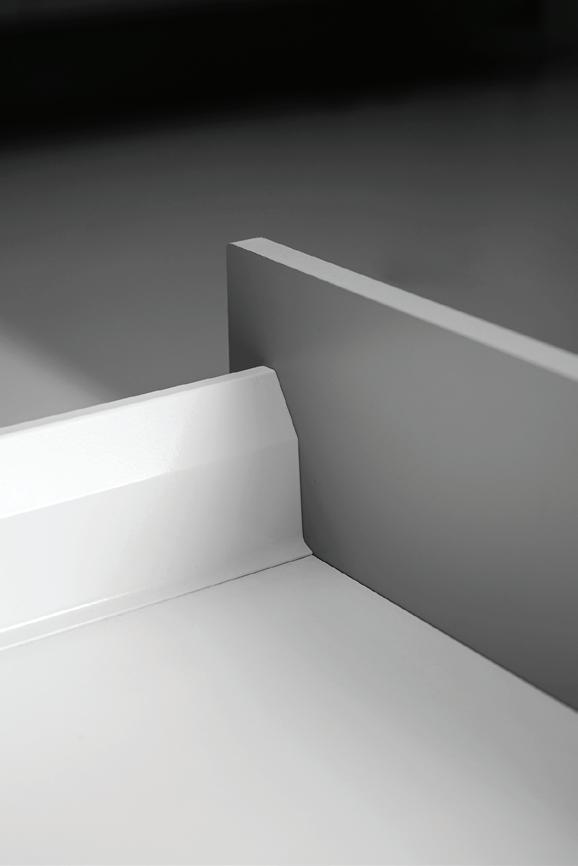

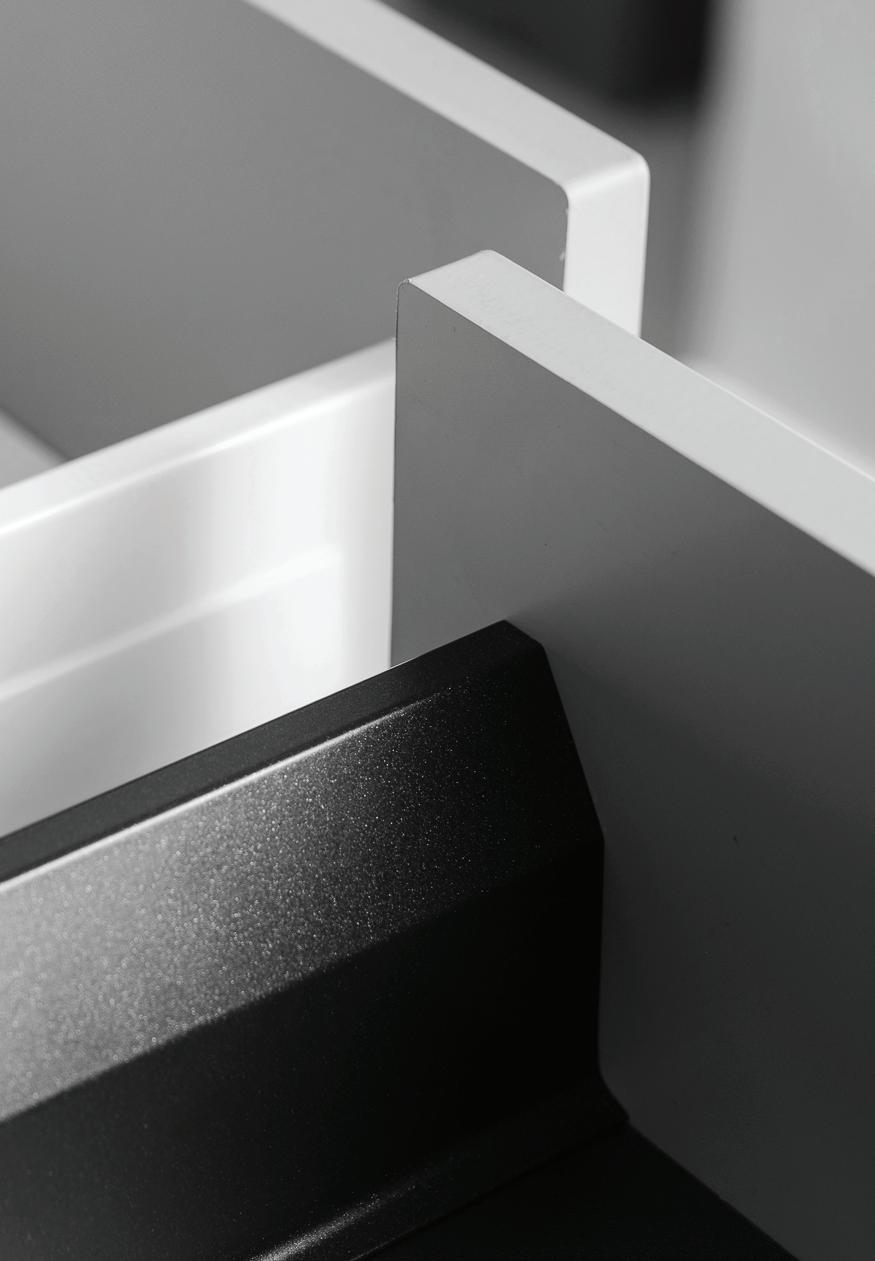

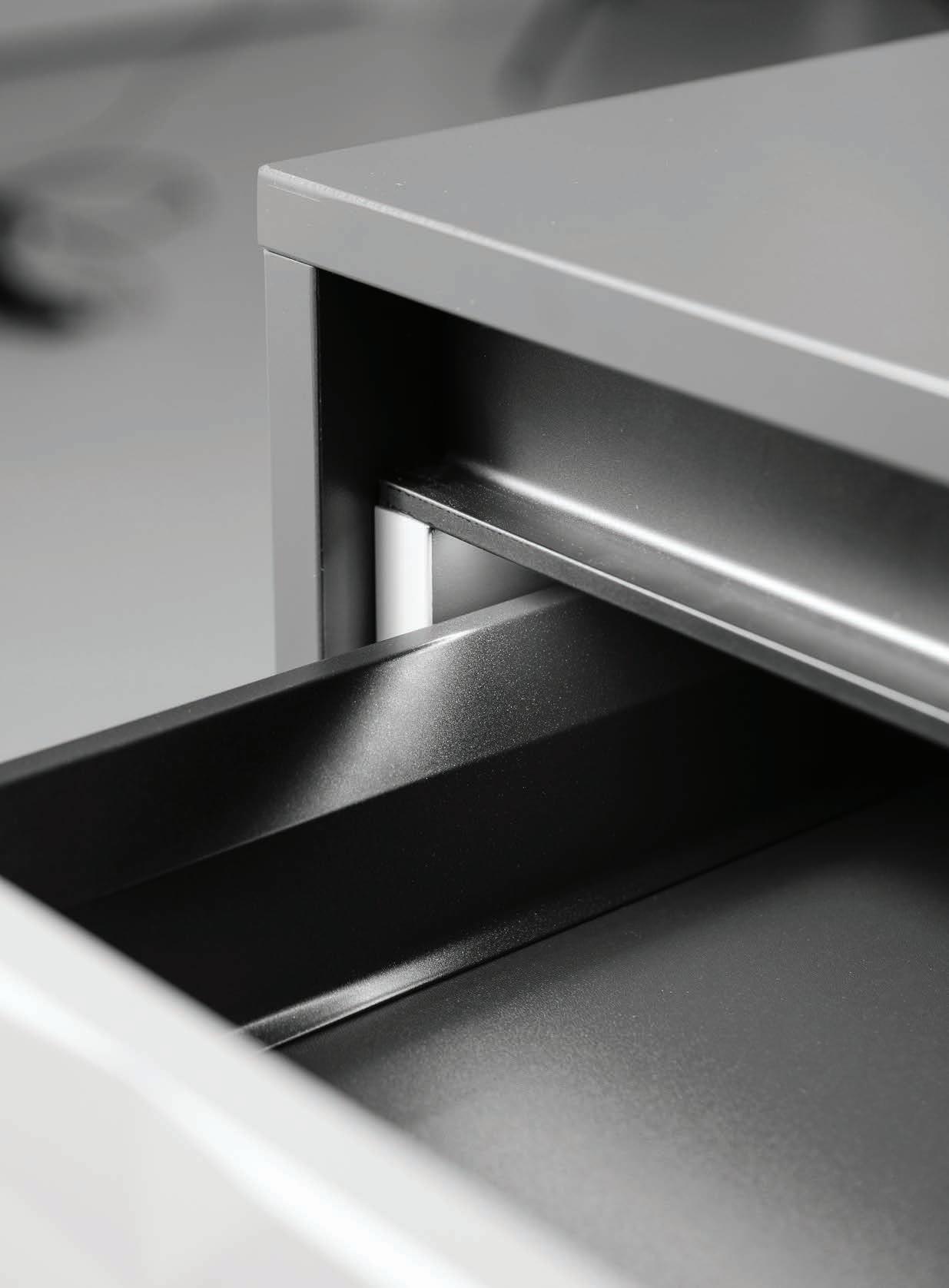

The linear squared panels of the drawer add a distinctive touch, while the concealed sliding system within the side panel ensures a clean and minimalistic appearance.
The Cervino Drawer is available in versions ranging from partial to full extensions, including comfort features such as "OneTouch" and "SlowMotion" for a practical and silent user experience.
The Cervino combines everything you need every day in one basic product, for the Italian balance between aesthetics, quality and production efficiency.
Italian style, produced in the Hettich network.
TECHNICAL DETAILS THAT MAKE THE DIFFERENCE
• Steel double-wall drawer
• Load capacity: 25/30/50 kg
• Two colours (Roccia grey / Neve white)
• Wide range of depths from 270 to 550 mm
• Four different heights: H100 - H150 - H180 - H210
• Vertical and horizontal adjustment in the front fastening mechanism
• Decorative cover cap with customisation options
CERVINO
PERFORMANCE
STEEL DOUBLE-WALL DRAWER
MOTION AT ITS BEST WITH EXCEL SLIDE
4 STANDARD HEIGHTS H100/H150/ H180/H210
TRENDY COLOURS
LINEAR SQUARED SHAPE
LARGE RANGE OF DEPTHS FROM 270 TO 550
SELECTION OF FRONT CONNECTORS WITH SCREW OR DOWELS
SLOWMOTION AND ONETOUCH TECNOLOGIES
COMPLETE FULL AND SINGLE EXTENSION PROGRAM OF SLIDES

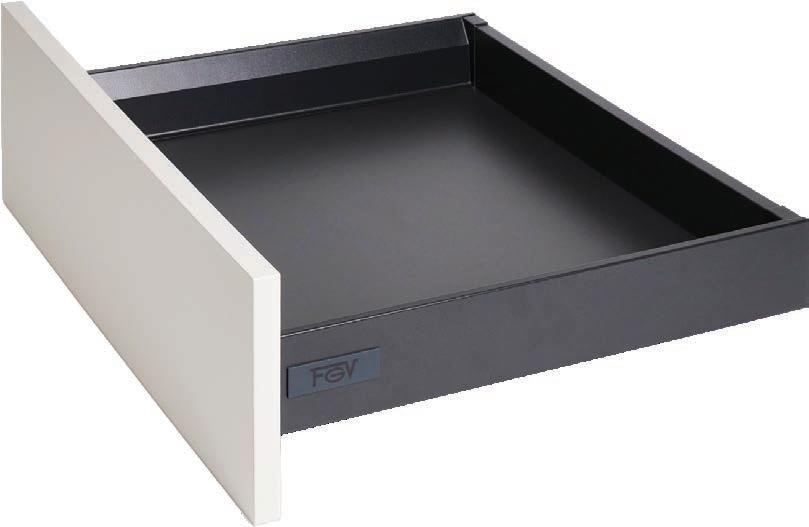

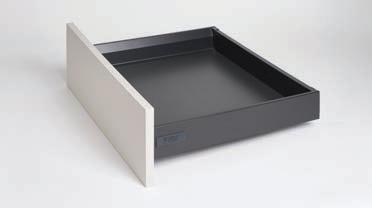

• Steel double-wall drawer H100
• Large range of depths from 270 to 550 mm
• Compatible with Excel QC full extension and single extension slide systems
• Available also Excel QC+ full extension for high performance
• Bottom fixing via ClawFix or screws without processing on the panel
• Front connectors available with screws or dowels
• Vertical and horizontal adjustment in the front fixing mechanism
• Metal connectors for wooden back panel applications
• Metal finish in two colours: Roccia Grey and Neve White
• Cervino drawer combines all the everyday essentials in one basic product
ROCCIA GREY NEVE WHITE
ROCCIA GREY NEVE WHITE
DRAWER SIDE
FRONT CONNECTOR COVER CAP BACK FIXING H100
• Steel railing bars for perfect volume management and strong construction, to be combined with standard drawer sides H100
• High drawer applications with back fixing available in heights H150 / H180 / H210
• Six sizes available, each suited to the corresponding drawer depth
• Integrated inclination adjustment
• Railing and plastic components in two colours matching perfectly the drawer finish: Roccia grey, Neve white
Left part \ Right part Left part \ Right part
part \ Right part
part \ Right part
H180 H210
ROCCIA GREY NEVE
ROCCIA GREY NEVE WHITE

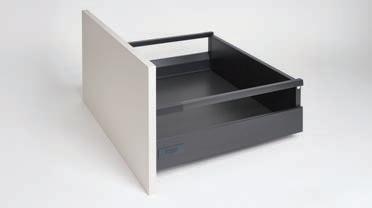

DRAWER H150/H180/H210

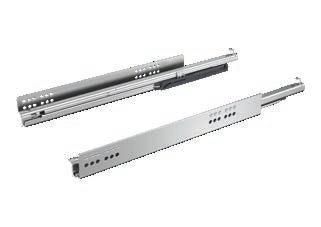

• Available Excel QC single and full extension damped slides
• Excel QC+ full extension slides for high performance and smooth action
• Adaptive SlowMotion damping for silent and majestic closing
• Three different standard loads for ease of use throughout the applications
• Slide-click fixing of drawer on the slide for easy and safe connection
• Large range of lengths from 270 to 550 mm
DYNAMIC LOAD

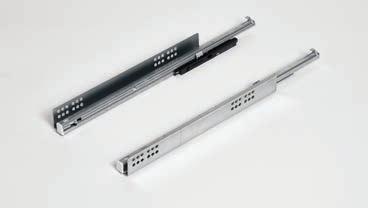

• Available Excel QC+ and QC full extension with integrated OneTouch technology
• With just a light touch on the front the drawer opens by itself and a smooth and silent closure is guaranteed without any effort
• Two different standard loads for ease of use throughout the applications
• Slide-click fixing of drawer on the slide for easy and safe connection
• Large range of lengths from 270 to 550 mm
ONETOUCH FULL EXTENSION
DYNAMIC LOAD DYNAMIC LOAD
Left part \ Right part
Left part \ Right part
KG 30 KG 50
INTERNAL DRAWER H100 / H180
• Solution for 4-sided internal drawer for elegant and practical function
• Steel internal drawer front profile to be cut to size of the drawer width
• Front connectors available in 2 heights: H100 for standard drawers and H180 for high drawers with railing application
• No need for edge banding on the front of the drawer bottom
• Front profile and components in two colours matching perfectly the drawer finish: Roccia grey, Neve white
ROCCIA GREY NEVE WHITE
INTERNAL DRAWER H100 / H180
FRONT CATCH FRONT STABILIZER
• Above-the-panel sides available in two versions: glass and metal
• A solution that maximizes the use of internal space in high drawers
• To be used together with lateral railing tubes
• Metal sides with easy clip-over on railing tube
• Glass solution with assembly adapters
• Two metal finishes matching perfectly the drawer finish: Roccia grey and Neve white
EASY
ASSEMBLY
STANDARD DRAWER KIT H100/ H150/ H180
• Standard kit for ease of distribution and use
• Each kit contains all elements necessary for the realisation for a drawer; to be used with individual wooden back and bottom panels for customized look
• A complete range of drawer kits is available in heights H100, H150, and H180, featuring Excel QC and Excel QC+ full extension slides with integrated SlowMotion technology
• Metal finish in two colours: Roccia Grey and Neve White
DRAWER KIT H100
DRAWER KIT H180
ROCCIA GREY NEVE
ROCCIA
ROCCIA GREY NEVE
DRAWER KIT H100
DRAWER KIT H150
DRAWER KIT H180

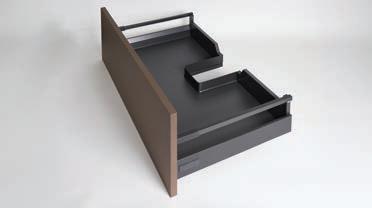

UNDERSINK FRAME
• Metal frame H100
• Easy to assembly and to adapt to the available space
• Two metal finishes: Roccia grey and Neve white
DESCRIPTION
Undersink frame H100
ANTI-SLIP MAT
• Anti-slip mat to be cut to size
• Supplied in 5-meter roll
STABILIZER KIT
• Stabilizer kit for a perfect stability of the complete range of drawer widths also in a full load capacity condition
• Ideal for wide drawer applications
• Recommended for drawers and pan drawers over 900 mm of width
• Excellent drawer sliding motion
• Smooth movement and silent sliding of the drawer
ROCCIA GREY NEVE WHITE
ROCCIA
UNDERSINK

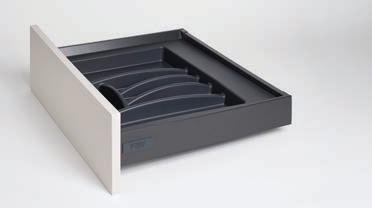

CUTLERY TRAY
• Quality moulded cutlery tray for perfect storage and ease of cleaning
• Product cut to size for Cervino drawer dimension
• Quick to clean, to remove, to position
DISEGNAO ILLLUSTRATOR MAIL OGGI SENZA LE QUOTE
• Easy to sell also as retrofit solution
• Connection bar for multiple applications
ROCCIA GREY
ROCCIA GREY NEVE WHITE NEVE WHITE
SINGLE APPLICATION
MULTIPLE APPLICATIONS

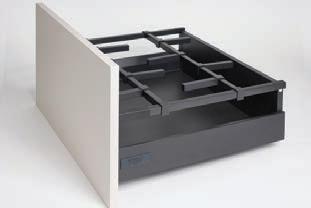

TRANSVERSAL TUBES
• Steel transversal tubes for more versatility
• Tube to be cut to size for drawer width
• Adpters for easy and strong clip-on fixing
• Dividers to improve space management inside the drawer with full freedom in the positioning
• Two colours matching perfectly the drawer finish: Roccia grey and Neve white
TRANSVERSAL TUBE
L = LB - 65,6
FRONT STABILIZER
• Metal front stabilizer
• Fastening plate for front panel
• Ideal application for wide-base drawers
FRONT STABILIZER
